6.6. CLEANING
The toner attached to the surface of the OPC drum is transferred to the paper at the
transcription stage, but a part of the toner remains. The cleaning is the stage that cleans the
remain toner after the transcription stage. The remain toner on the drum and the toner which
was attached to the place where the laser beam didn't scan are gathered to the developing roller
to be used again. When no paper is supplied, the transcription roller is minus-charged to
eliminate the minus-charged toner.

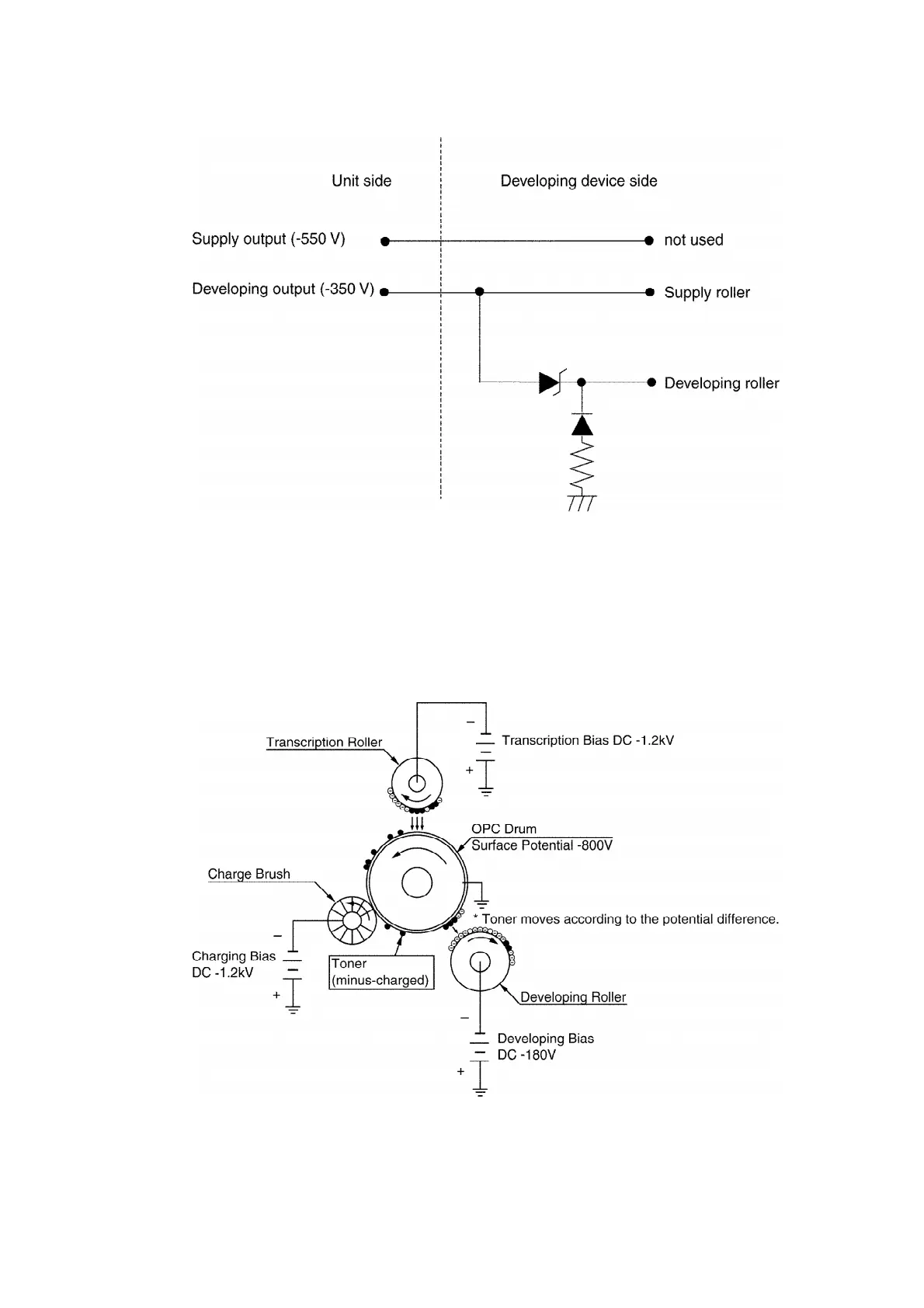

Cleaning Part
6.7. FIXING
On the process of the transcription, the transferred toner is weakly attached on the paper.
164
