Panasonic KX-FLM551 - 6.12. PAPER PICKUP

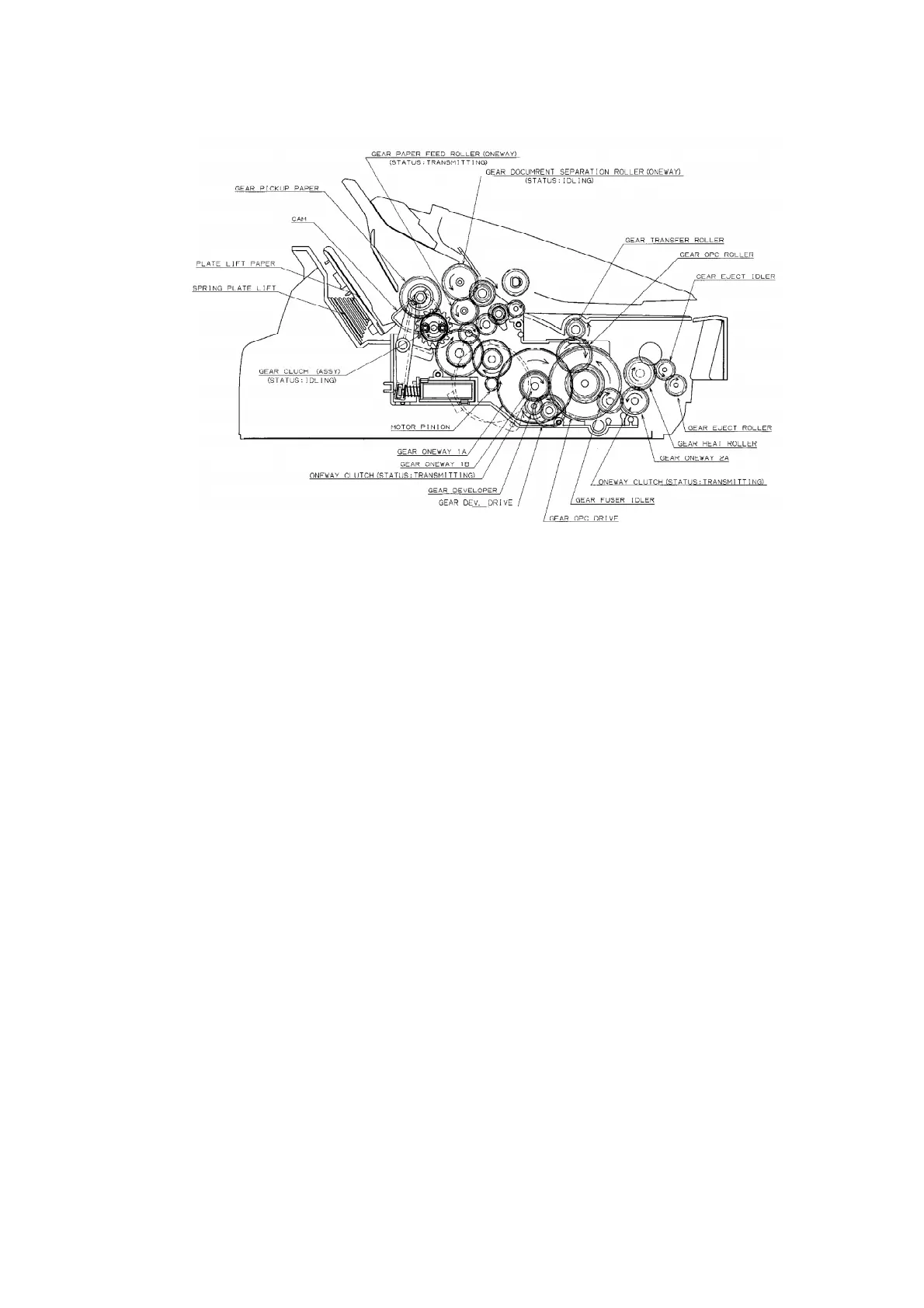

- The motor pinion rotates in the direction shown in the figure.
- The gears of fixing and developing parts are driven by the GEAR
ONEWAY 1A.
- The GEAR PLANET is separated from the GEAR DOCUMENT FEED
ROLLER.
- The GEAR DOCUMENT SEPARATION ROLLER runs idle and does
not transfer the driving power to the roller.
- The GEAR PAPER FEED ROLLER drives the roller.
- The GEAR CLUTCH runs idle and GEAR PICKUP PAPER is still.
