Caution:

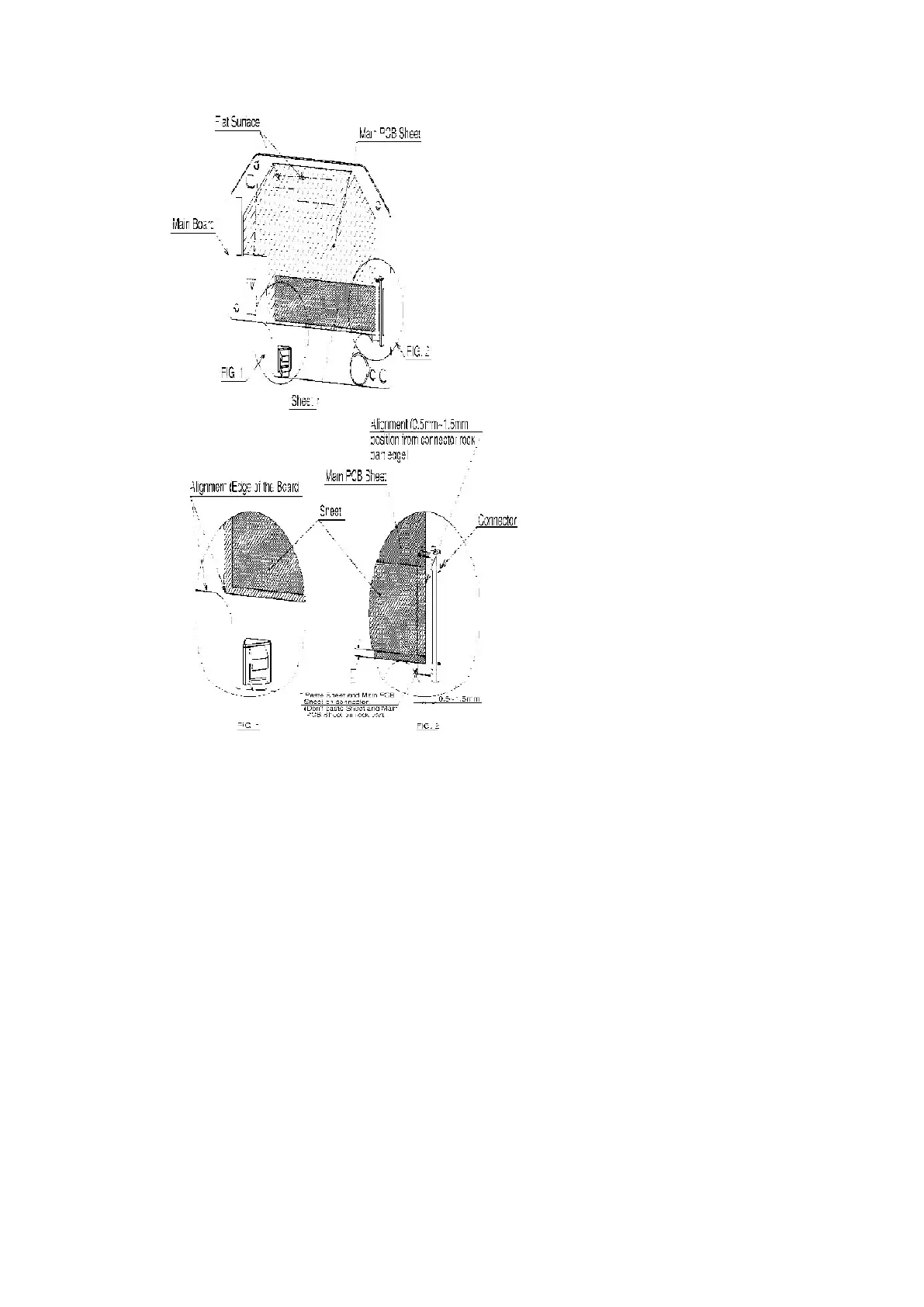

SeetheFiguresforthepositionintheattachmentoftheMainPCBSheet
andtheSheet.
PresstheFlatSurfaceshownintheFigure,thenpressthewholesheet
securelytoavoidpeeling.
TheSheetshouldnotcovertheconnectorinFIG.2.
9.2.CAUTIONSFORFFCCABLEATTACHMENT
ProcesstheFFCCabletoinserttotheconnectorsoftheI/OBoardandtheMainBoard.
