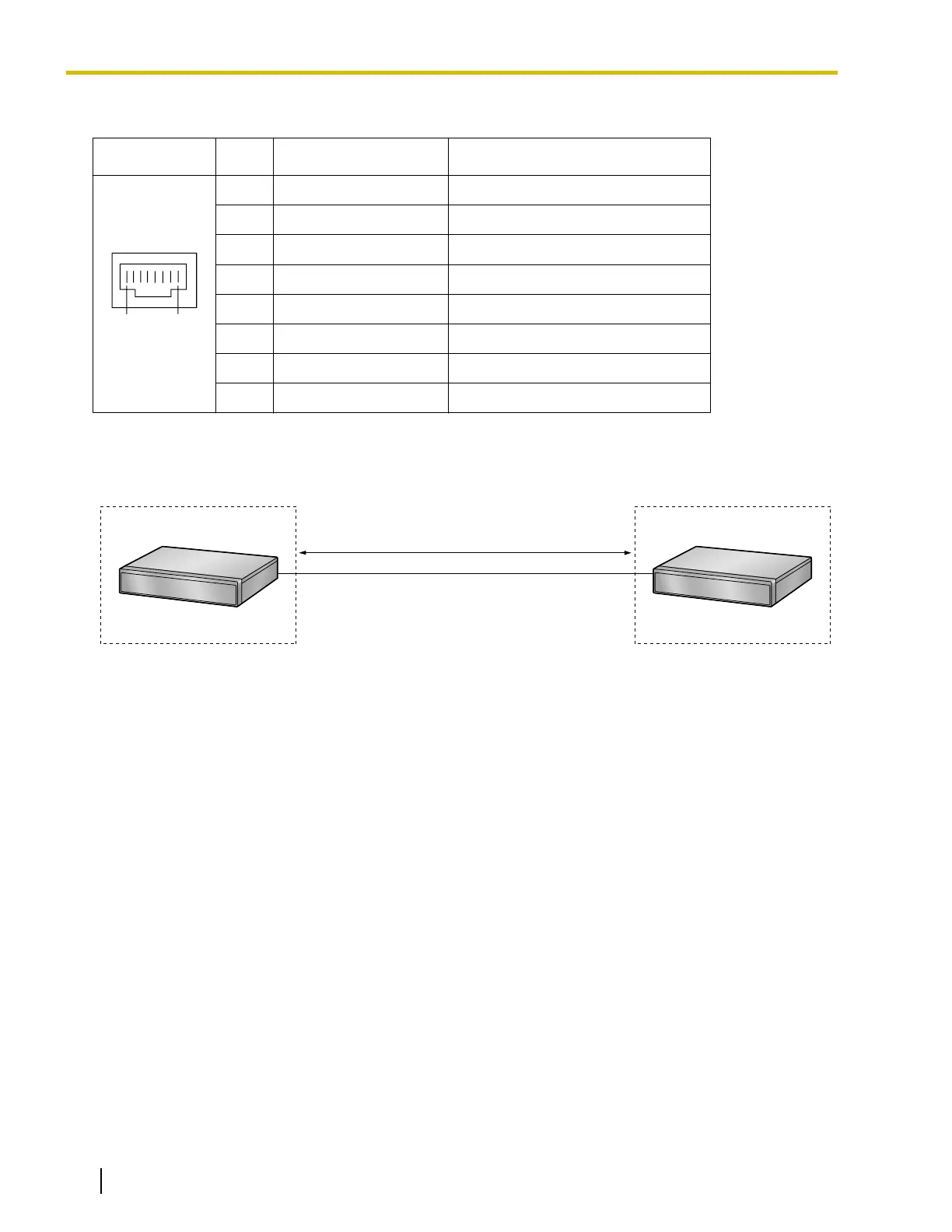

Pin Assignments
No. Signal Name Function
1 UHW+ Receive data +
2 UHW- Receive data -
3 REFCLK+ Reference CLK +
4 FHCLK+ Frame and System CLK +
5 FHCLK- Frame and System CLK -
6 REFCLK- Reference CLK -
7 DHW+ Transmit data +
8 DHW- Transmit data -
Maximum Cabling Length of Extension Connection
The
maximum length of the extension cable that connects the Main Unit to the Expansion Unit is shown below:
130 Installation Manual Document Version 2016-03
4.6.1 EXP-M Card (KX-NS7130)
