Panasonic KX-NS Series Installation Manual

Power Failure Connection
In the case of KX-NS700

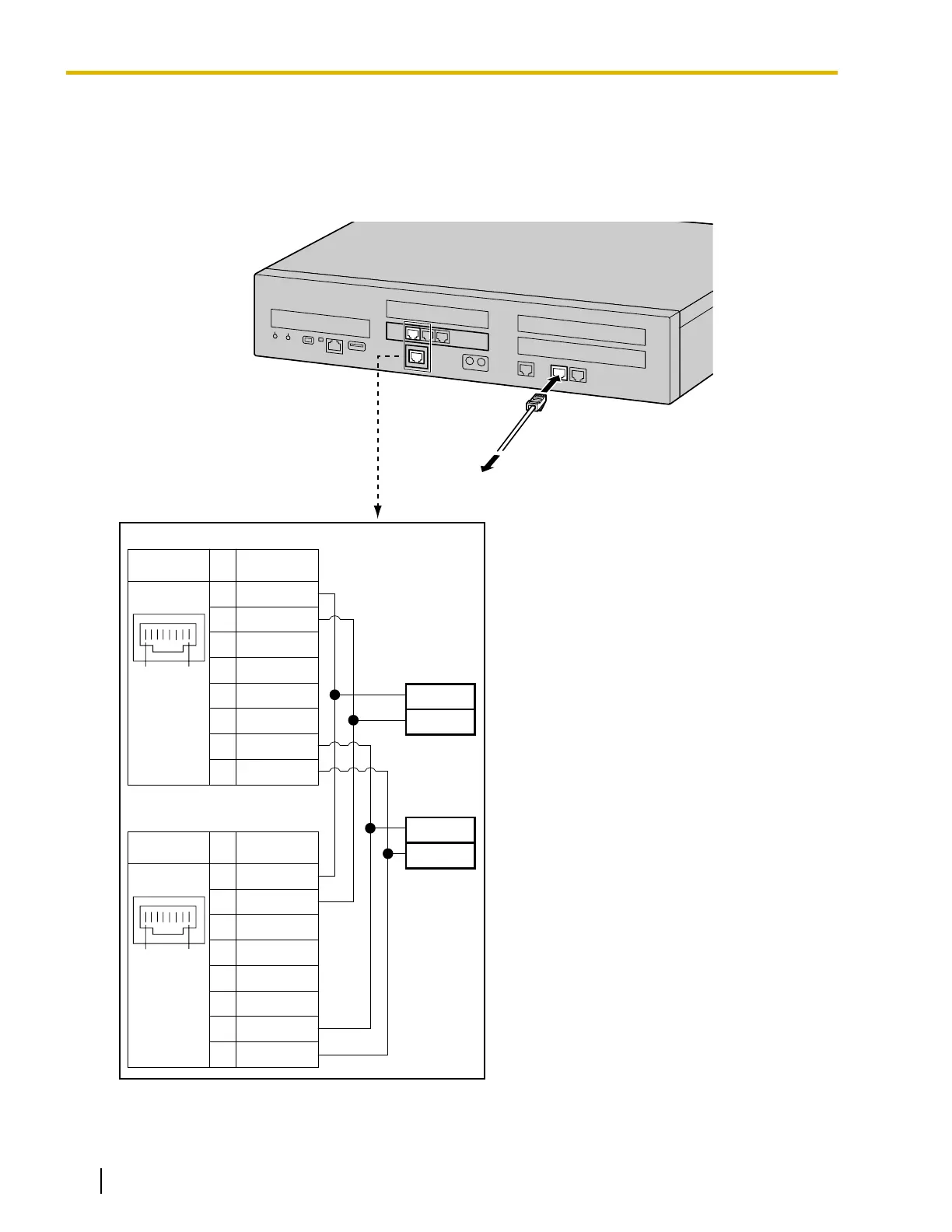

In the event of a power failure, a specific SLT port is automatically supplied power through the PFT ports. The
PFT ports are port 1-2 (on the pre-installed MCSLC4) and port 1-2 (on the optional LCOT6 card).
To SLT1, SLT2
Optional card KX-NS5180
No.
Signal Name
81
1 TA
2 RA
3
4
Reserved
5 Reserved
CO1 Tip
6
Reserved
7 TB
8
RB
PFT1-2
Reserved
No.
Signal Name
81
1
TA
2 RA
3
4
Reserved
5 Reserved
6
Reserved
7 TB
8
RB
Reserved
CO1 Ring
CO2 Tip
CO2 Ring
148 Installation Manual Document Version 2016-03
