Panasonic KX-TDE100 - E&M8 Card (KX-TDA0184)

3.5 Information about the Physical Trunk Cards
94 Installation Manual
3.5.5 E&M8 Card (KX-TDA0184)
Function
8-port E & M (TIE) trunk card. Type 5 support.
Accessories and User-supplied Items
Accessories (included): Screws × 2
User-supplied (not included): Amphenol connector
Notes
• Connect this optional service card to the trunk through terminal board from the E & M (TIE) line;
do not connect to the trunk directly.
• To connect the Amphenol connector, refer to "3.2.10 Fastening an Amphenol Connector".
• To confirm the trunk connection, refer to "Confirming the Trunk Connection" in "3.15.1 Starting the
PBX".

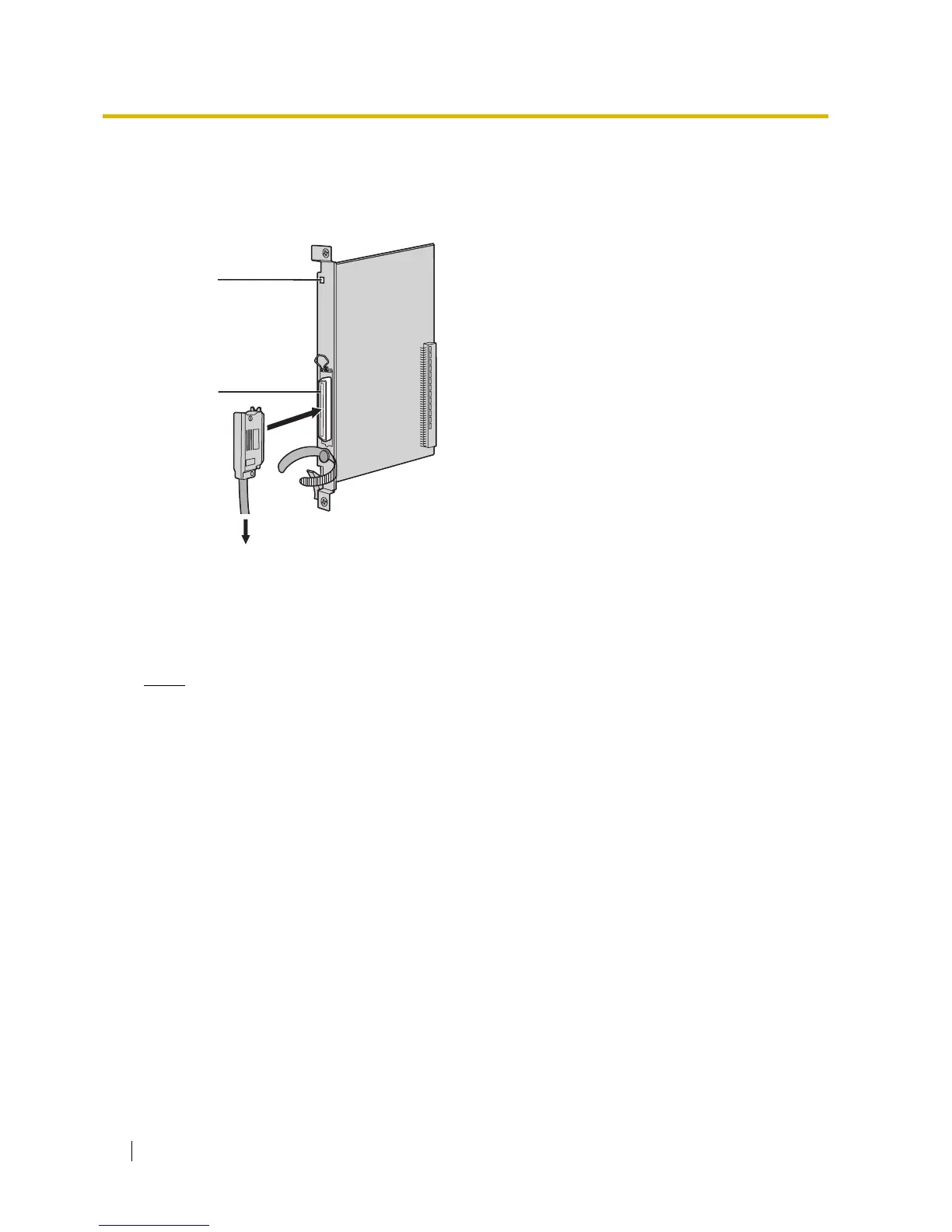

To terminal board from the E & M (TIE) line
LED
Amphenol
