Panasonic KY-B615AB - When Installing Above an Oven; Dimensions of Countertop Cutout

43 EN
English

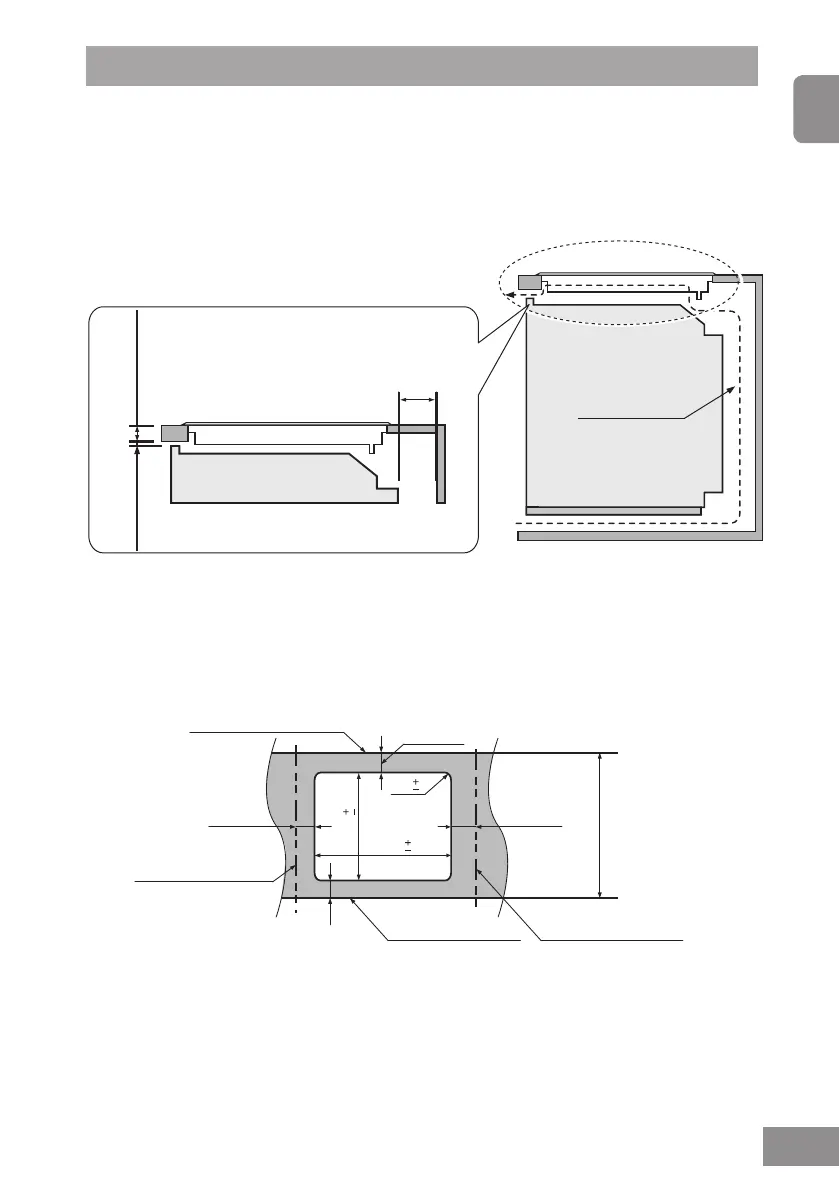

Dimensions of Countertop Cutout
Side View with an Oven
Min. 60
Min. 5 Min. 40
Flow of intake
and exhaust
Oven
When Installing Above an Oven
■ The appliance may only be installed over a Panasonic oven.
■ Allow for extra spaces for air circulation as shown below.
Min. 60
Min. 5 Min. 40
Oven
Dimensions
(measurement: mm)
490
3
0
R3 1
560
3
0
Building side wall
Countertop front
Min. 59
Building side wall
Building rear wall
Min. 51
Min.600
Min. 51
Min. 51
