14 Bar code object
14.3 Invert a bar code object
The “Invert” setting inverts the colors of a bar code (white spaces become black, and black
bars become white).
1. To edit the parameters of the bar code object, select the object in the object list or in the
marking image editor.
The parameters are displayed in the category below the object list.
2. To invert the bar code, select “Invert” under “Module”.
When the check box is selected, the spaces between bars are marked. Depending
on the bar code type, the quiet zone or the space elements of the left and right guard
pattern are also marked.

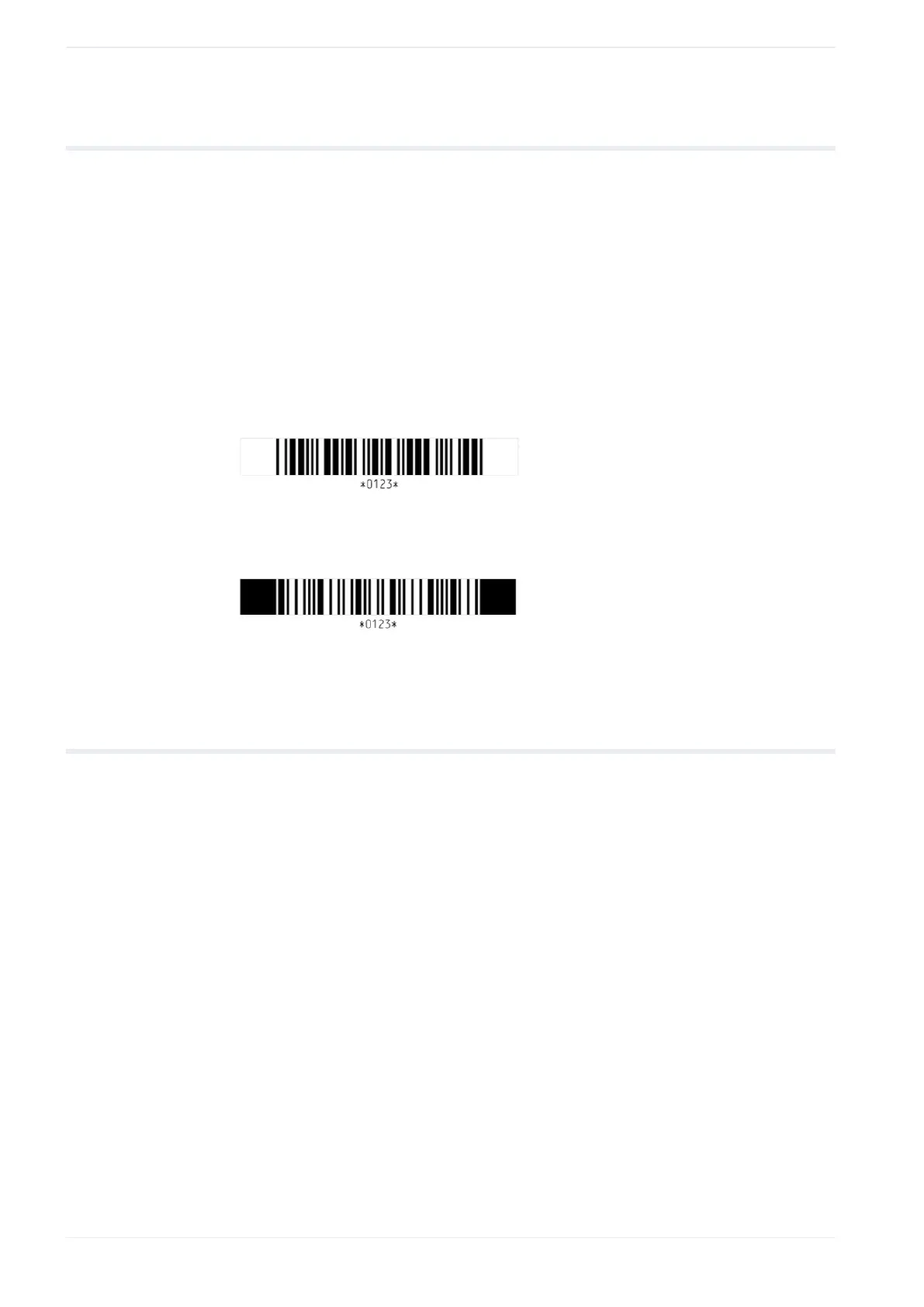

Example of a normal bar code
Example of an inverted bar code
14.4 Set the marking direction for a bar code object
With these settings, you define the direction in which the filling lines are drawn during the
marking process.
1. To edit the parameters of the bar code object, select the object in the object list or in the
marking image editor.
The parameters are displayed in the category below the object list.
2. For “Code marking direction”, select one of these options: “One direction” or “Alternate”.
The alternate direction setting reduces the marking time compared to the one direction
setting.
148 ME-NAVIS2-OP-1
