24 System settings
24.23.2 Details of distortion correction settings
Use the distortion correction settings to fine-tune the shape of the marking field during
calibration.

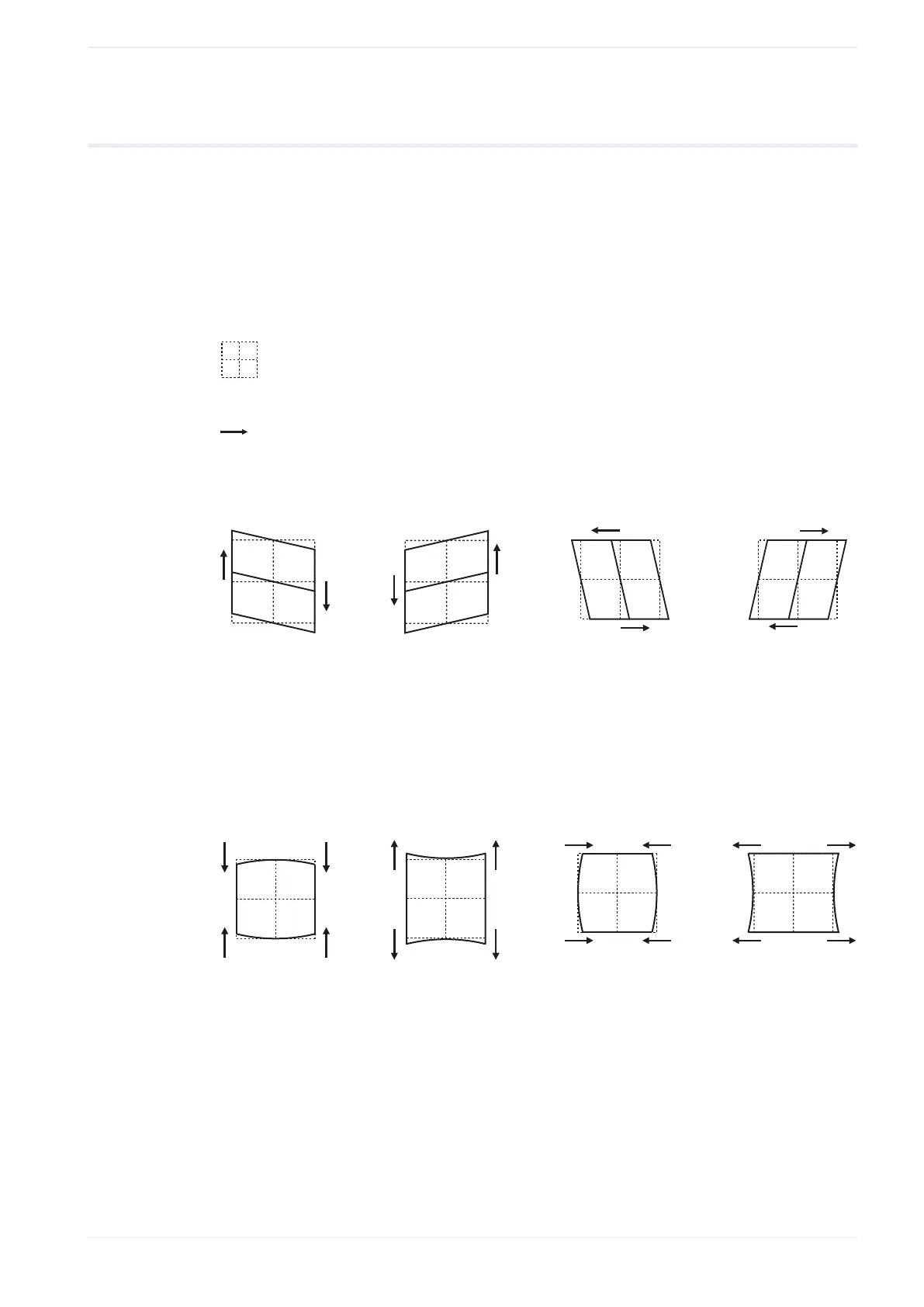

For each distortion correction shape, you can specify X and Y values in the “Marking field
calibration” dialog. The drawings in this topic show how the marking field shape changes
depending on the entered X and Y values.
A square with dashed lines indicates the original marking field.
Arrows indicate the direction in which the marking field is changed.
Parallelogram
(1) (2) (3) (4)
(1)
X value reduced
(2)
X value increased
(3)
Y value reduced
(4)
Y value increased
Pincushion
(1)
(2)
(3)
(4)
(1)
X value reduced
(2)
X value increased
(3)
Y value reduced
(4)
Y value increased
ME-NAVIS2-OP-1 279
