9 Character object
(1)
(2)
(3)
(4)

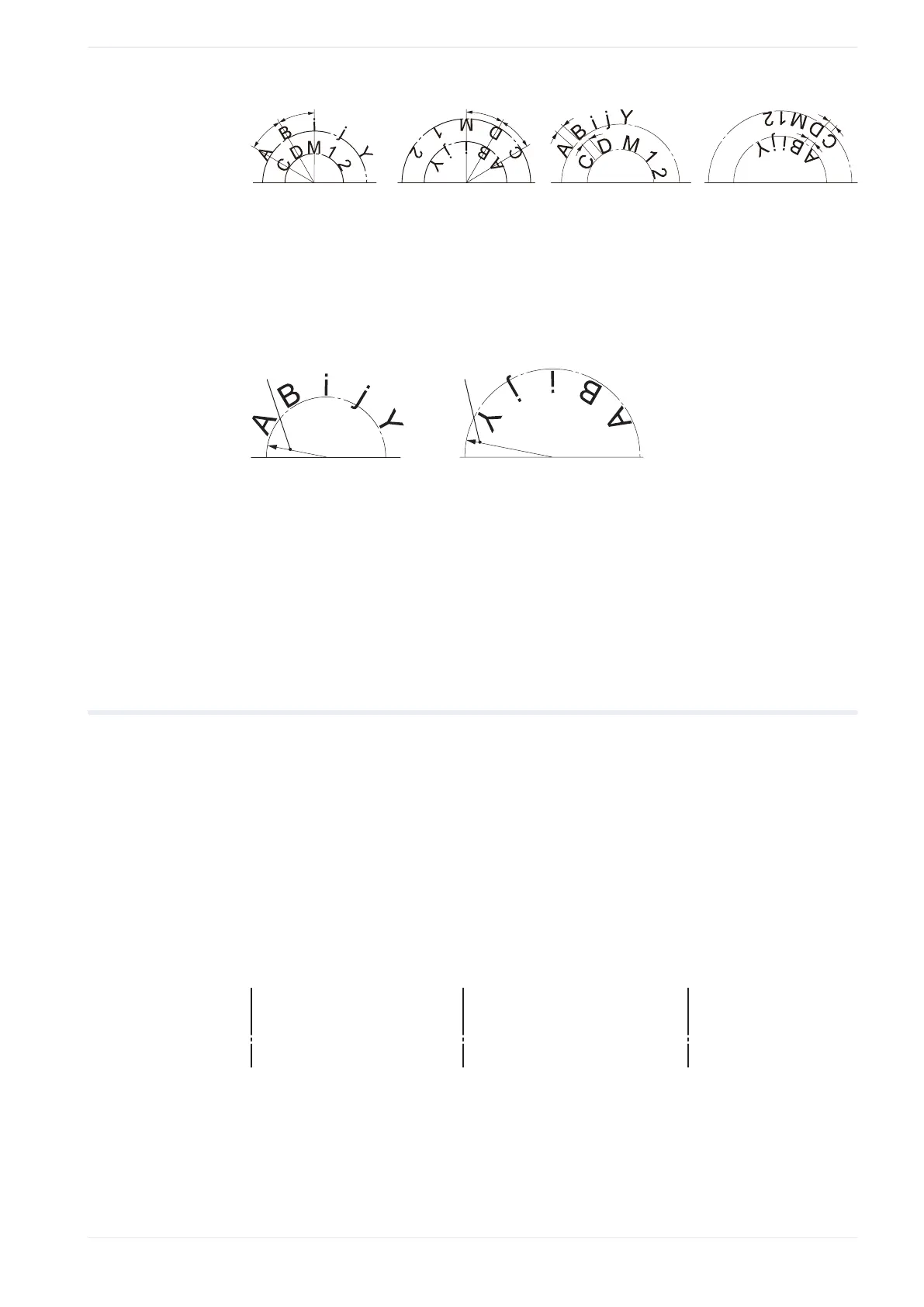

(1)
“Arc outside, char. spacing by angle”
(2)
“Arc inside, char. spacing by angle”
(3)
“Arc outside, char. spacing by length”
(4)
“Arc inside, char. spacing by length”
3. For character objects along an arc, you can specify the arc radius under “Arc radius
[mm]”.
(1) (2)
(1)
Arc radius (arc outside)
(2)
Arc radius (arc inside)
Related topics
Set the character spacing of a character object along a straight line (page 100)
Set the character spacing of a character object along an arc (page 102)
9.7 Align a character object
Specify the horizontal alignment of a character object. For objects along a straight line, you
can also specify the vertical alignment.
The “Horizontal alignment” and “Vertical alignment” settings influence the reference point
position of text objects along a straight line.
1. To edit the parameters of the character object, select the object in the object list or in the
marking image editor.
The parameters are displayed in the category below the object list.
2. For “Horizontal alignment”, select one of the following options to specify the horizontal
position of the object.
ABijY
CDM12
ABijY
CDM12
ABijY
CDM12
(1) (2) (3)
(1)
“Left”
(2)
“Center”
(3)
“Right”
ME-NAVIS2-OP-1 97
