1 Self-timer indicator/AF Assist Lamp
2 Flash
3 Lens
4 Lens barrel
5 LCD monitor
6 Power button
7 Microphone
8 Shutter button
9
DMC-FH6
Zoom lever
DMC-FH4
DMC-S5
DMC-S2
Zoom button
10 [MODE] button
11 Hand strap eyelet
12 [AV OUT/DIGITAL] socket
13
[
/ ] (Delete/Return) button
14 [MENU/SET] button
15 Playback button
16 Cursor button
17 Tripod receptacle
18 Speaker
19 DC coupler cover
For shop display purpose only
• When using an AC adaptor, ensure that the Panasonic DC coupler (DMW-
DCC10: for shop display purpose only) and AC adaptor (DMW-AC5G: for
shop display purpose only) are used.
• Always use a genuine Panasonic AC adaptor (DMW-AC5G: for shop display
purpose only).
• When using an AC adaptor, use the AC cable supplied with the AC adaptor.
20 Card/Battery door

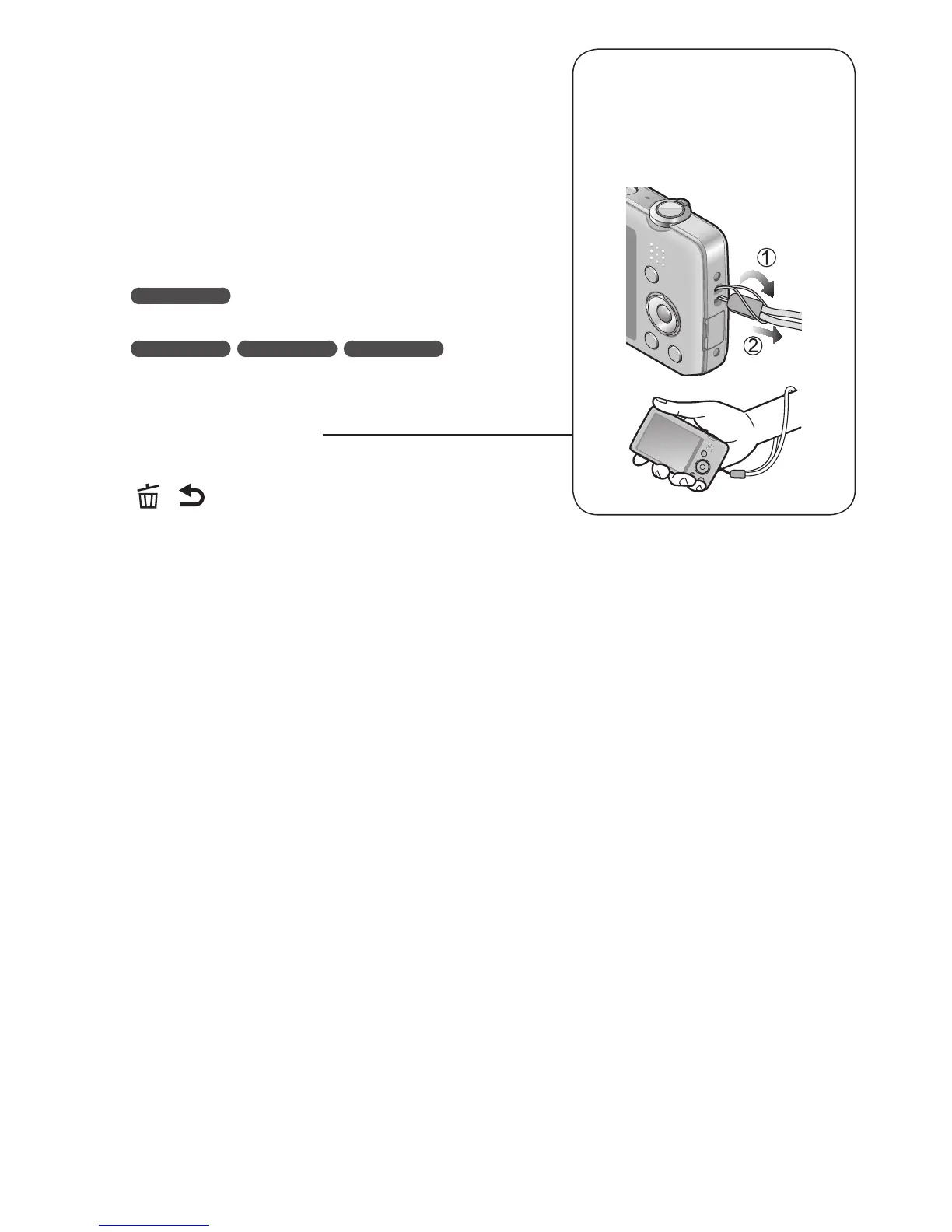

We recommend using
the supplied hand strap
to avoid dropping the
camera.
●
The illustrations and screens in this manual may differ from the actual
product.
●
Do not block the microphone when recording motion pictures.
●
Some tripods or unipods, and some methods of holding the camera
may block the speaker, making it difficult to hear the beep, etc.
