Panasonic MC-UL425B - Page 50

- 50 -
➢ Reinstall agitator back into nozzle
by placing end caps into grooves.
➢ After reinstalling the agitator, turn it
by hand to make sure that belt is
not twisted or pinched and that all
rotating parts turn freely.
Belt
Correa
Courroie
Motor Shaft
Arbre d’entrainement
du moteur
Eje del motor
End Cap
Tapa del
extremo
Bouchon
Agitator
Agitateur
Agitador
Groove
Rainure
Ranura
Carpet/Bare
Floor Selector
Shaft
tapis/plancher
Selector alfombra-piso
Arbre d'entraînement
du sélecteur
Motor Shaft
Arbre du moteur
Eje del motor
Belt
Courroie
Correa

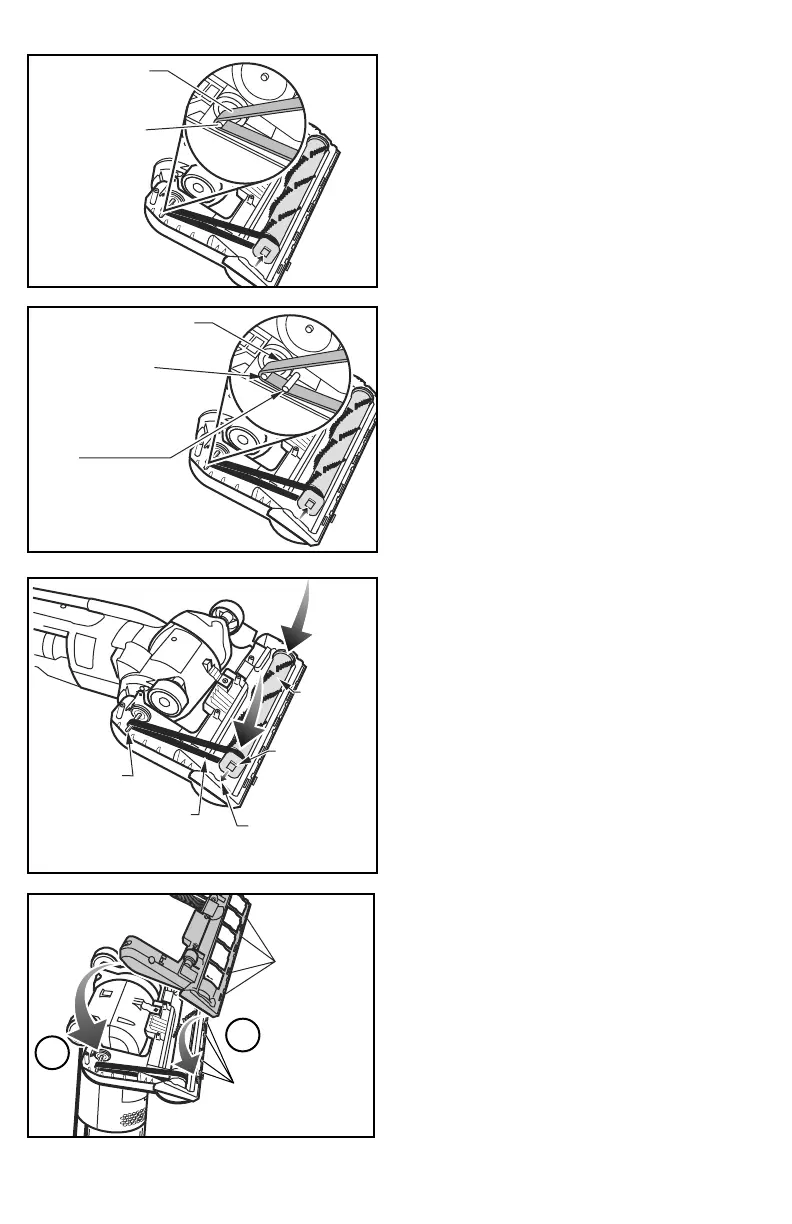

➢ Loop new belt (part number
MC-V390B, Type UB12) around
Carpet/Bare Floor selector shaft and
agitator belt groove. Make sure belt
is routed in the belt guide as
shown. See illustration for correct
belt routing.
Motor Shaft
Arbre du moteur
Eje del motor
Belt
Courroie
Correa
➢ Loop new belt (part number
MC-V390B, Type UB12) around
motor shaft and agitator belt
groove. Make sure belt is routed in
the belt guide as shown. See
illustration for correct belt routing.
2
1
Slots
Fentes
Ranuras
Tabs
Languettes
Lengüetas
➢ Place the vacuum cleaner in the
upright position standing on the
handle. This will minimize wheel
interference when installing lower
plate.
➢ Reinstall lower plate by (1) aligning
tabs on front edge of lower plate
with slots in the nozzle and (2)
rotating to installed position.
WITHOUT CARPET/BARE FLOOR
SELECTOR:
WITH CARPET/BARE FLOOR
SELECTOR:
