- 46 -

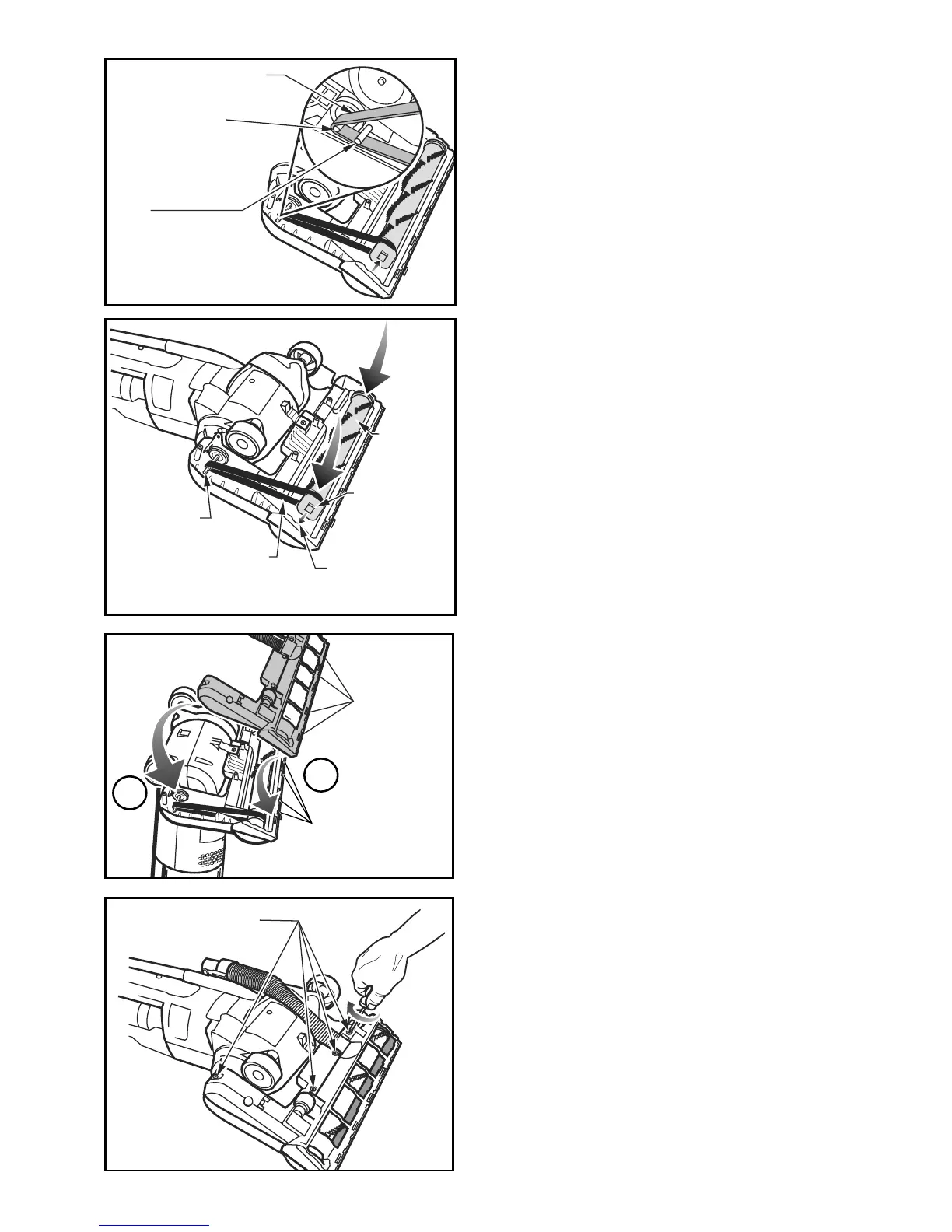

➢ Reinstall agitator back into nozzle
by placing end caps into grooves.
➢ After reinstalling the agitator, turn it
by hand to make sure that belt is
not twisted or pinched and that all
rotating parts turn freely.
Belt
Correa
Courroie
Motor Shaft
Arbre d’entrainement
du moteur
Eje del motor
End Cap
Tapa del
extremo
Bouchon
Agitator
Agitateur
Agitador
Groove
Rainure
Ranura
Carpet/Bare
Floor Selector
Shaft
tapis/plancher
Selector alfombra-piso
Arbre d'entraînement
du sélecteur
Motor Shaft
Arbre du moteur
Eje del motor
Belt
Courroie
Correa
➢ Loop new belt (part number
MC-V390B, Type UB12) around
Carpet/Bare Floor selector shaft and
agitator belt groove. Make sure belt
is routed in the belt guide as
shown. See illustration for correct
belt routing.
2
1
Slots
Fentes
Ranuras
Tabs
Languettes
Lengüetas
➢ Place the vacuum cleaner in the
upright position standing on the
handle. This will minimize wheel
interference when installing lower
plate.
➢ Reinstall lower plate by (1) aligning
tabs on front edge of lower plate
with slots in the nozzle and (2)
rotating to installed position.
Four Screws
Quatre vis
Cuatro Tornillos
➢ Lay vacuum cleaner on the floor
with the bottom up and nozzle flat.
➢ Install the four screws to the nozzle
cover.
➢ Route nozzle hose to hose holder.
Align nozzle hose bracket with
retaining bracket on body and slide
down unit it clicks into place.
➢ Return the vacuum cleaner to the
upright position before plugging
into an electrical outlet.
