Panasonic NV-RX27 - Page 27

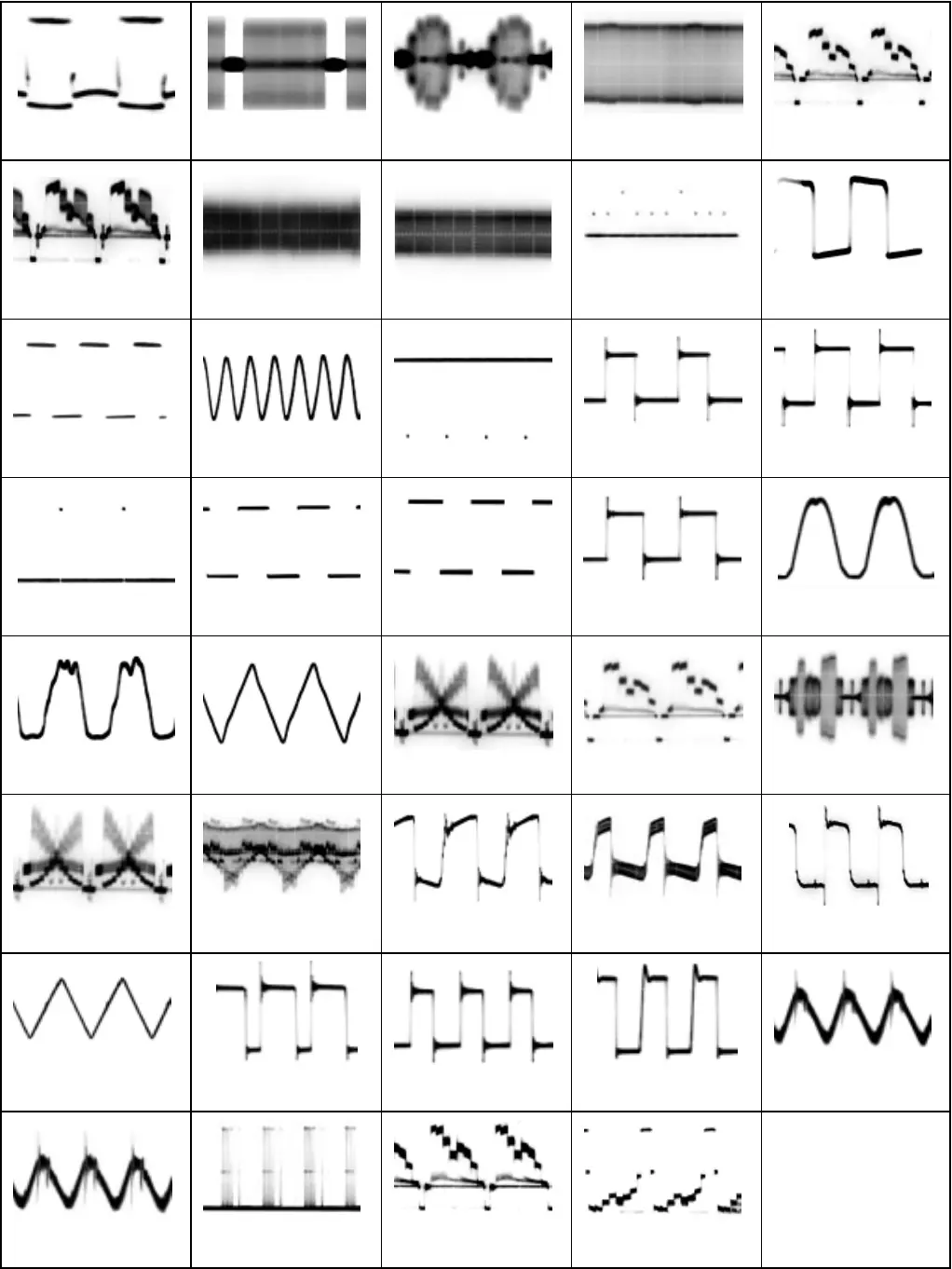

IC701-11, 14 POWER ON
6.0 Vp-p (5msec./div.)
ZOOM MOTOR DRIVING
IC3001-15 REC
0.2 Vp-p (2msec./div.)
COLOUR BAR
IC3001-9 REC
0.5 Vp-p (20µsec./div.)
COLOUR BAR
IC3001-6 REC
0.4 Vp-p (5msec./div.)
COLOUR BAR
IC3001-61 REC
1.4 Vp-p (20µsec./div.)
COLOUR BAR
IC3001-57 REC
2.0 Vp-p (20µsec./div.)
COLOUR BAR
IC5001-8
3.0 Vp-p (20msec./div.)
COLOUR BAR
IC6003-13 FF/REW
2.2 Vp-p (50msec./div.)
IC6003-15 FF/REW
3.0 Vp-p (20msec./div.)
IC6003-139, IC2201-47 REC/PLAY
5.2 Vp-p (1µsec./div.)
IC6003-140 REC/PLAY
5.4 Vp-p (1µsec./div.)
IC6003-150, IC2201-56 REC/PLAY
3.0 Vp-p (10msec./div.)
IC6003-152, IC2201-57 REC/PLAY
3.0 Vp-p (0.2msec./div.)
IC6003-154, IC2201-55 REC/PLAY
3.0 Vp-p (1msec./div.)
IC6003-167 STOP
5.4 Vp-p (0.5µsec./div.)
IC2201-2, 14, 15 REC/PLAY
2.8 Vp-p (1msec./div.)
IC2201-29, 30, 31 REC/PLAY
2.8 Vp-p (20msec./div.)
IC2201-52 REC/PLAY
0.6 Vp-p (0.5µsec./div.)
IC301-40 STOP
1.0 Vp-p (20µsec./div.)
GRAY SCALE
IC301-85 STOP
1.5 Vp-p (20µsec./div.)
COLOUR BAR
IC301-80 STOP
1.5 Vp-p (20µsec./div.)
COLOUR BAR
IC314-8 STOP
1.2 Vp-p (20µsec./div.)
GRAY SCALE
IC314-21 STOP
0.6 Vp-p (20µsec./div.)
GRAY SCALE
IC1001-9 STOP
1.0 Vp-p (1µsec./div.)
IC1001-11 STOP
1.4 Vp-p (1µsec./div.)
IC1001-15 STOP
1.3 Vp-p (1µsec./div.)
IC1001-27 STOP
0.6 Vp-p (1µsec./div.)
Q1001-2 STOP
11.8 Vp-p (1µsec./div.)
Q1003-4 STOP
12.0 Vp-p (1µsec./div.)
Q1004-2 STOP
18.0 Vp-p (1µsec./div.)
Q1061-4 STOP
0.2 Vp-p (1µsec./div.)
Q1062-4 STOP
0.2 Vp-p (1µsec./div.)
IC801-10 STOP
3.0 Vp-p (10msec./div.)
IC801-13 STOP
1.0 Vp-p (20µsec./div.)
COLOUR BAR
IC801-15 STOP
3.6 Vp-p (20µsec./div.)
COLOUR BAR
IC5001-1 PLAY
0.4 Vp-p (2msec./div.)
COLOUR BAR
IC5001-47 PLAY
0.2 Vp-p (2msec./div.)
COLOUR BAR
IC6003-63 STOP
2.6 Vp-p (50nsec./div.)
IC6003-72 FF/REW
3.0 Vp-p (10msec./div.)
