5.2.7.2 Reassembly Notes
TOP PREVIOUS NEXT
1. Installation/Alignment of Main Lever
A. Make sure that the 2 holes of Loading Rack Unit are aligned with the holes on chassis
(Through holes).
B. Turn the P5 Arm Unit to the Capstan Rotor Unit Shaft side.
C. Turn the T Brake Unit to the T Reel Table side.
D. Position the Main Lever so that the Loading Rack Unit Pin fits in the niche of Main
Lever.
Confirm that pins and bosses are in the position and that the hole of Main Lever is
aligned with the hole on chassis (Through hole) as shown. Then, install the Main Lever.
E. Push down the Locking Tabs (C) to set in the groove of Main Lever Guide.

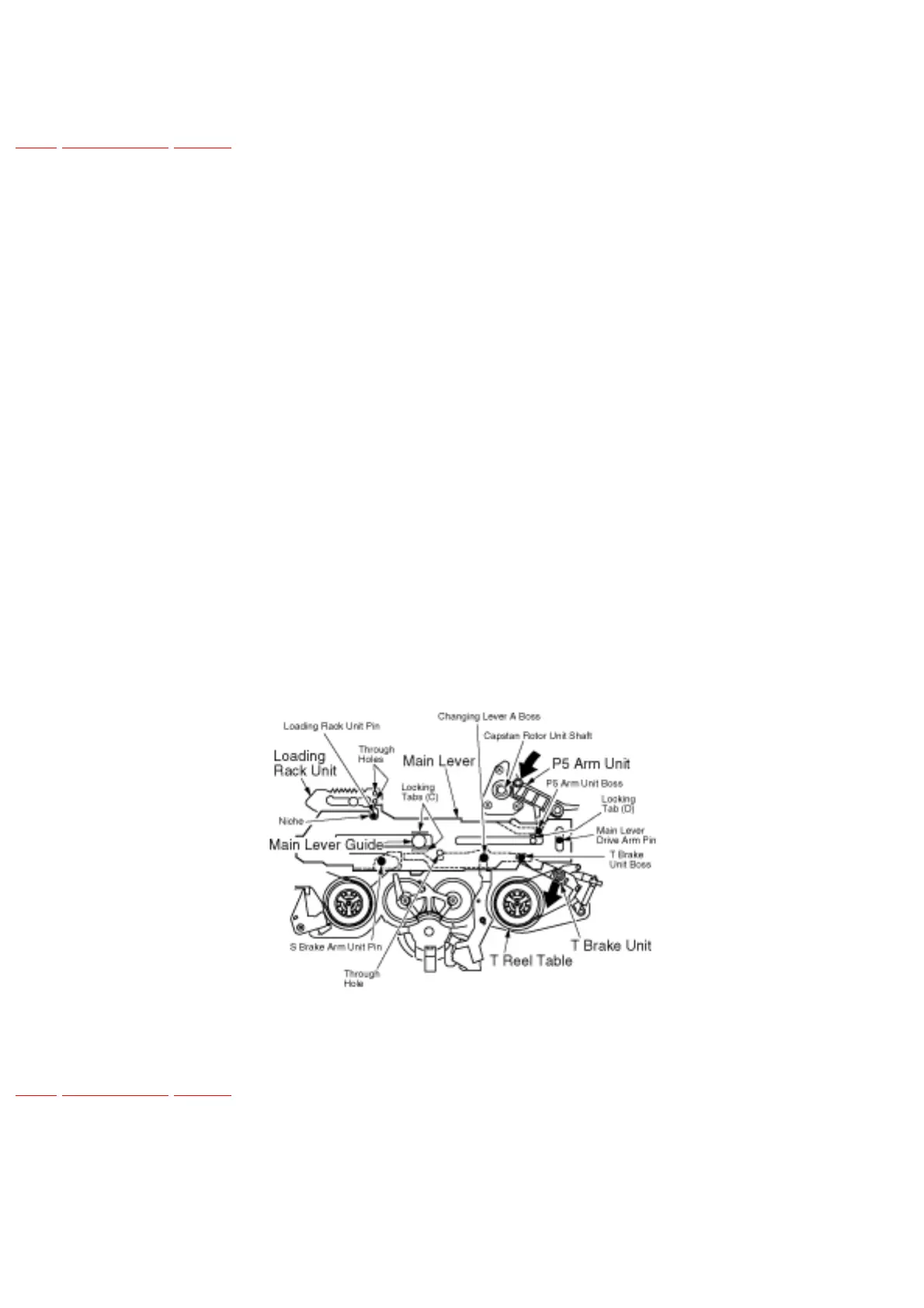

Fig. J6-2
