10. Tighten Black Screw (D).
(The Black Screw (D) should be in the approximate center of the hole.)
11. Remove the jumper between TP6003 and +5V(TP6009).

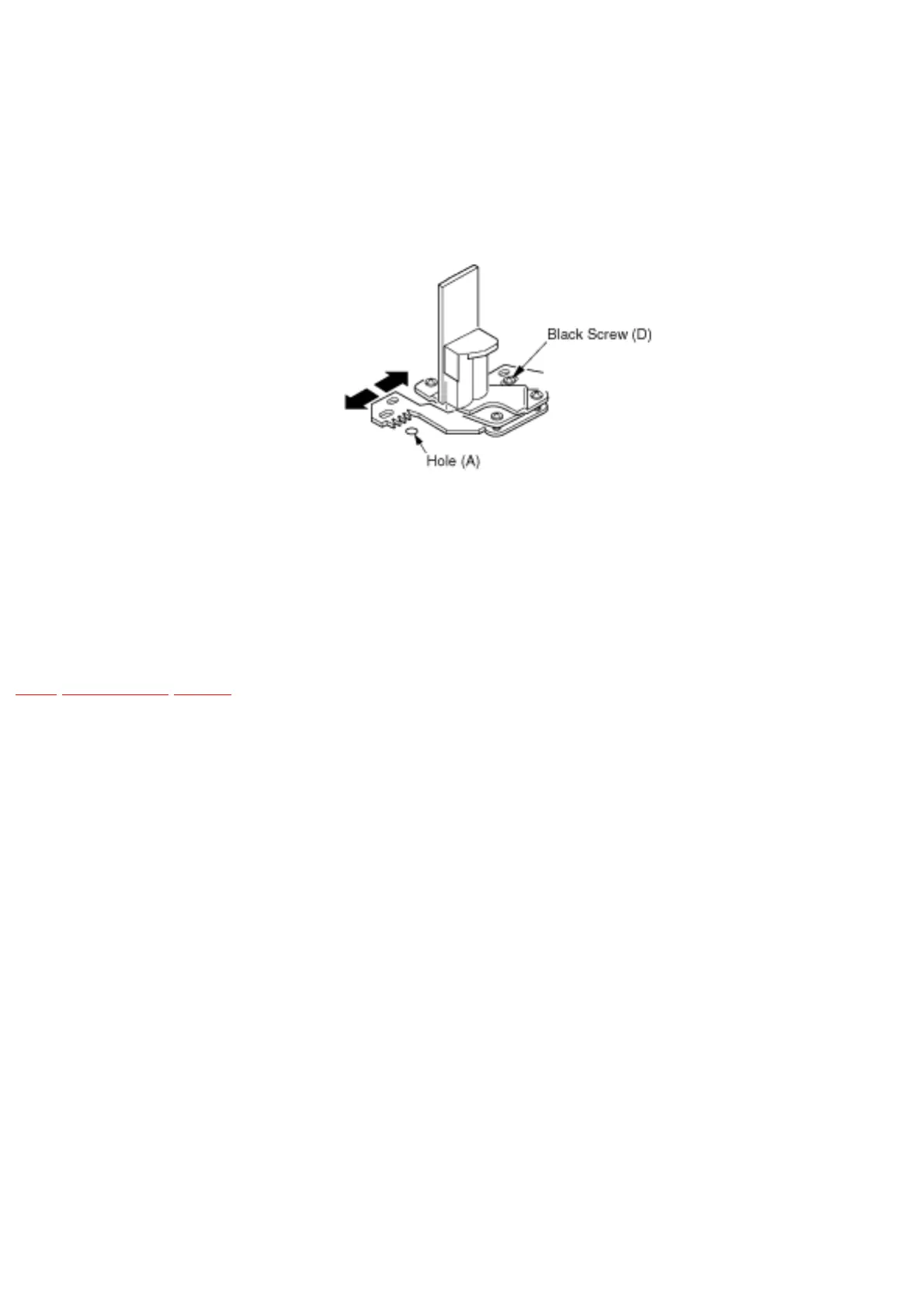

Fig. M10
Note:
Old type of H-Position Adjustment Driver (VFK0136) can be used for this adjustment.
