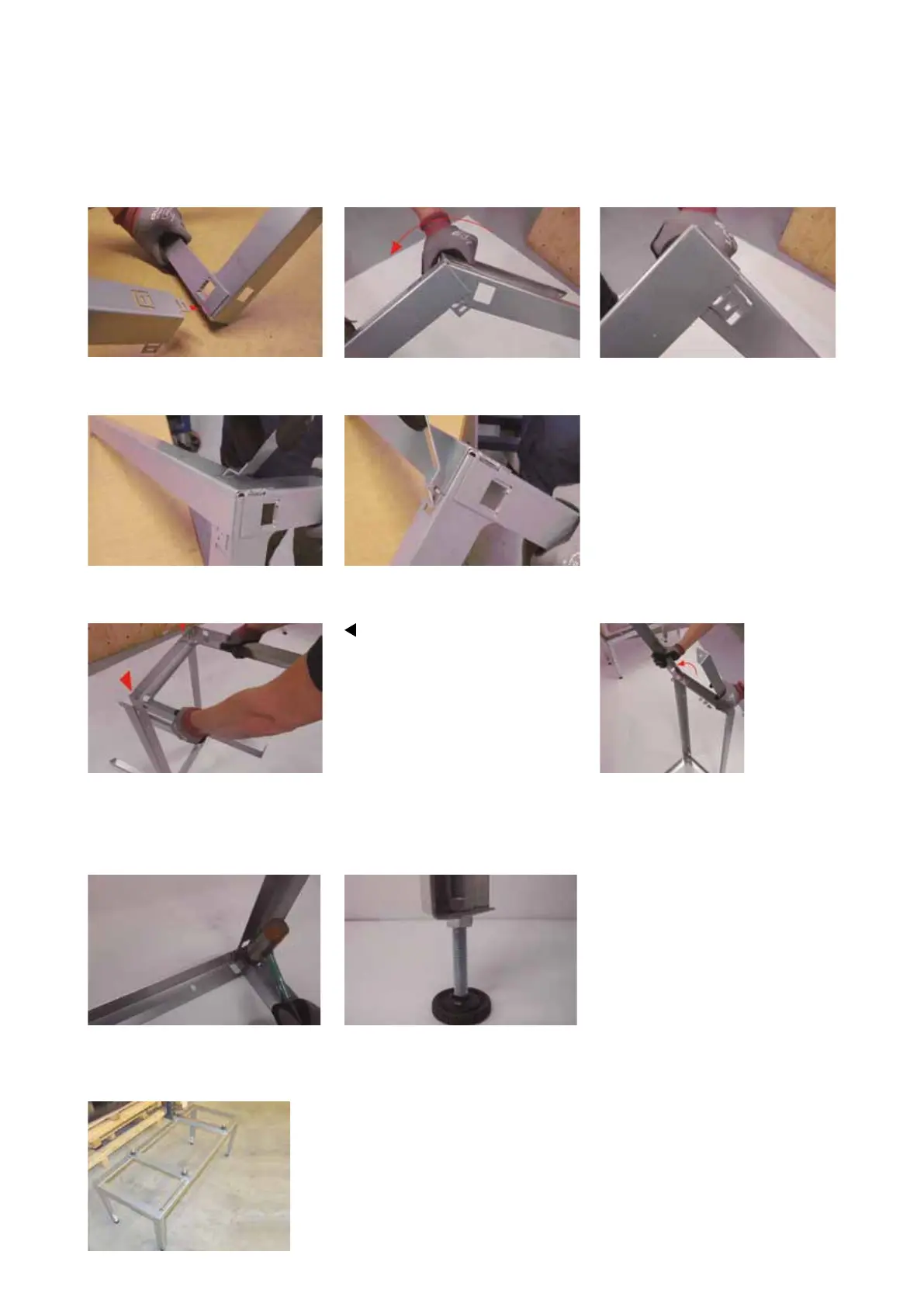

5. The locking tab forms a “hinge” here that locks the long side. Gently turn the long side around 180.
4. Assemble each side by sliding the locking tab into the rectangular hole in a corner of the end piece.
NOTE! Be sure to push it in rmly and maintain enough pressure through the next step.
6. First turn the locking tab on top of the long side, then the lower one. Repeat this step on both sides.
7. Set the stand up on the end and thread
the other end over like in the picture.
Then turn it around 180. Repeat the
steps in 5.
8. Flatten the 8 locking tabs like in 3.
9. Assemble the feet and install the stand horizontally.
NOTE! Do not atten the aps in the corners.
10. Fit the vibration dampers on the cross bars before installing them onto the stand. Align the machine and then tighten all the nuts.
DONE!
