Setting up
ENGLISH - 15
Getting Started
You can use the projector with any of the following 4 projection methods. To set the desired method in the projector,
see “INSTALLATION” on page 39.
You can adjust the throwing angle by screwing the front legs up/down.
This adjust the angle of the projector. See “Positioning the image” on page 21.

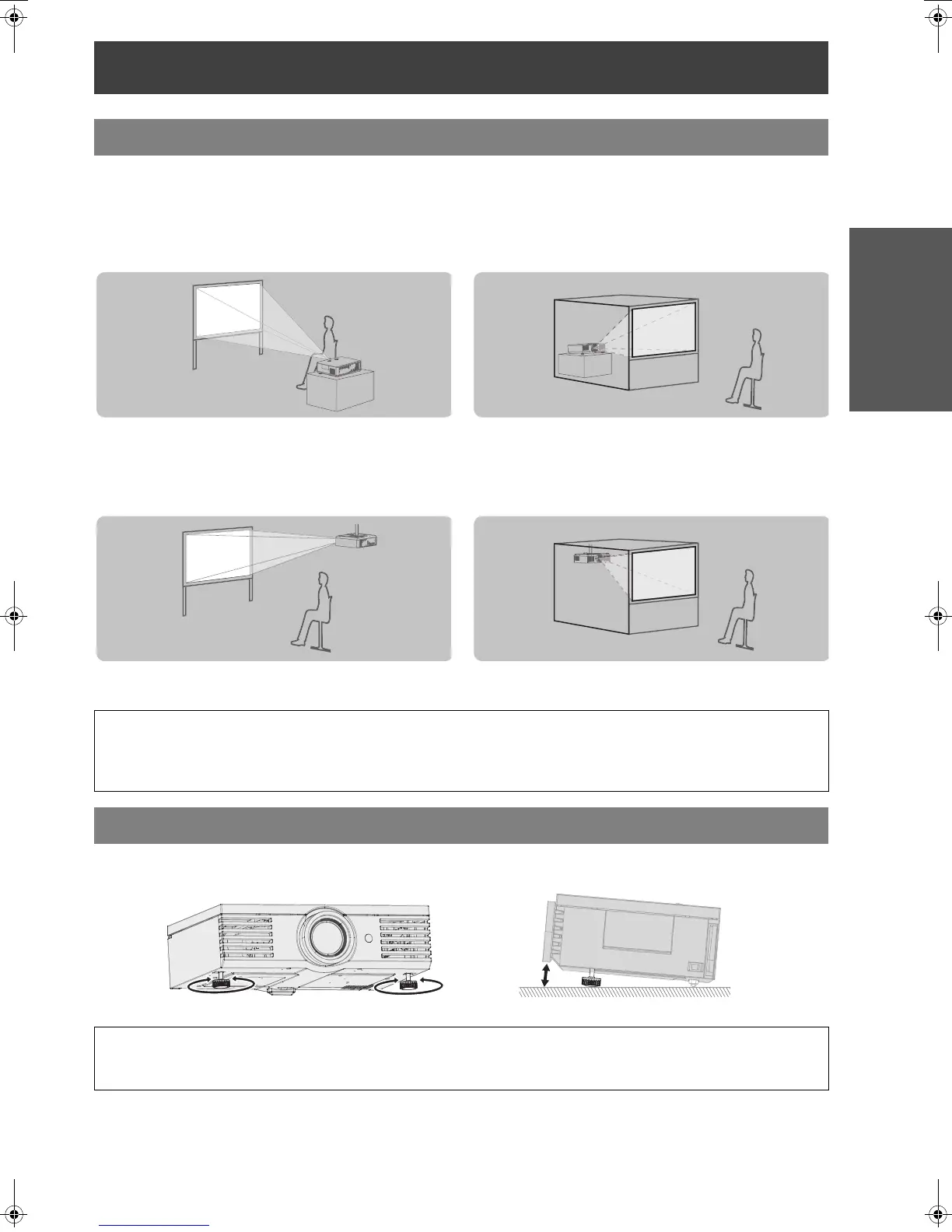

Projection method
J Setting on a desk/floor and
projecting from front
J Setting on a desk/floor and
projecting from rear
INSTALLATION: FRONT/DESK INSTALLATION: REAR/DESK
J Mounting in the ceiling and
projecting from front
J Mounting in the ceiling and
projecting from rear
INSTALLATION: FRONT/CEILING INSTALLATION: REAR/CEILING
NOTE:
A translucent screen is required for REAR projection.
When mounting the projector in the ceiling, the optional ceiling mount bracket (ET-PKX100, ET-PKE1000S)
is required.
Front leg adjuster and throwing angle
NOTE:
Heated air comes out of the Air exhaust port. Do not touch the Air exhaust port directly.
If keystone distortion occurs, see “KEYSTONE” on page 36.
