Panasonic PT-DZ10KU - Removal of Lens Mount (Assy)

DIS-15

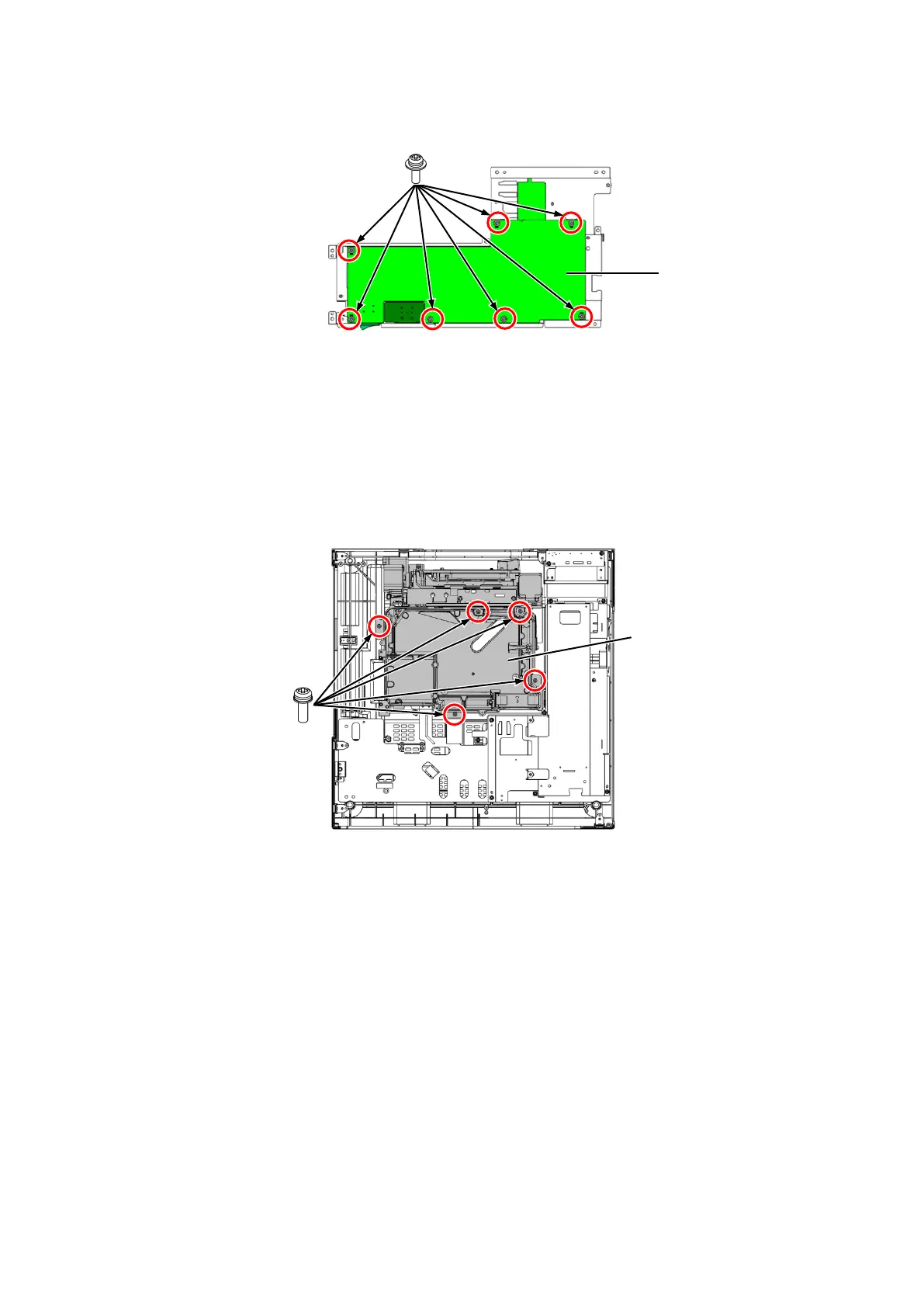

・Unscrew the 7 screws and remove the PC-P.C.Board.
2.13. Removal of Lens Mount (Assy)
1. Remove the Analysis Mirror (Assy) according to the section 2.8. "Removal of Analysis Mirror (Assy)".
2. Remove the Signal Processing Block according to the steps 1 through 3 in the section 2.10. "Removal of
Signal Processing Block".
3. Remove the Ballast Block according to the steps 1 through 3 in the section 2.11. "Removal of Ballast Block".
4. Unscrew the 5 screws and remove the Lens Mount (Assy).
P-P.C.Board
XYN3+F8FJ
XYN4+J12FJ
Lens Mount (Assy)
