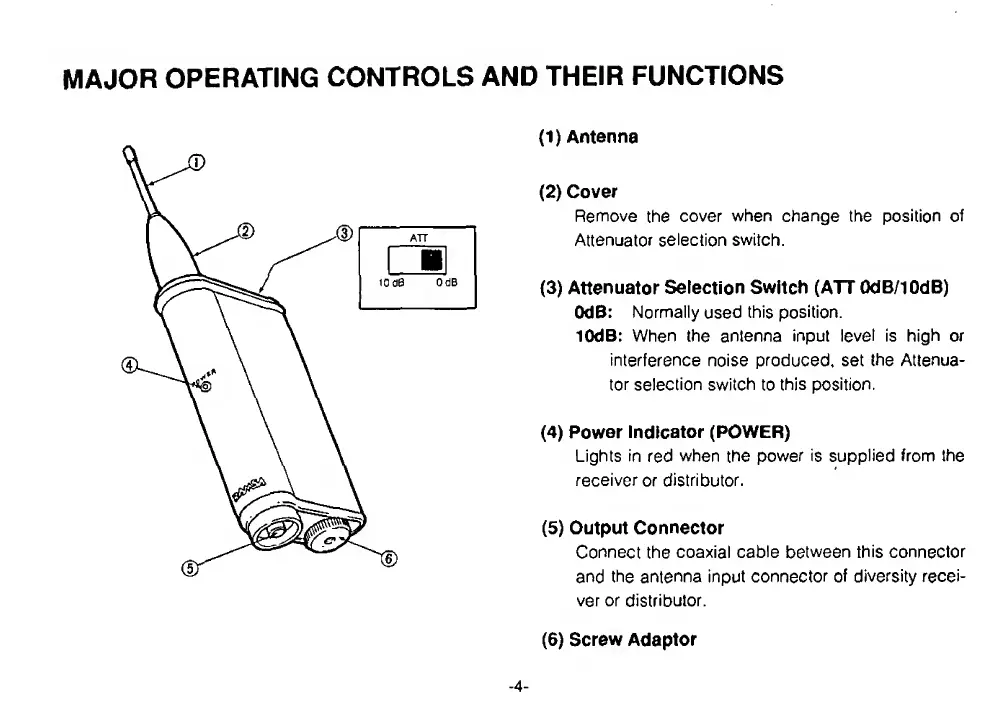

MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS
(1) Antenna
(2) Cover
Remove the cover when change the position of
Attenuator selection switch.
(3) Attenuator Selection Switch (ATT 0dB/i0dB)
OdB: Normally used this position.
lOdB: When the antenna input level is high or
interference noise produced, set the Attenua¬
tor selection switch to this position.
(4) Power Indicator (POWER)
Lights in red when the power is supplied from the
receiver or distributor.
(5) Output Connector
Connect the coaxial cable between this connector
and the antenna input connector of diversity recei¬
ver or distributor.
(6) Screw Adaptor
