Panasonic RAMSA - Mounting Bracket

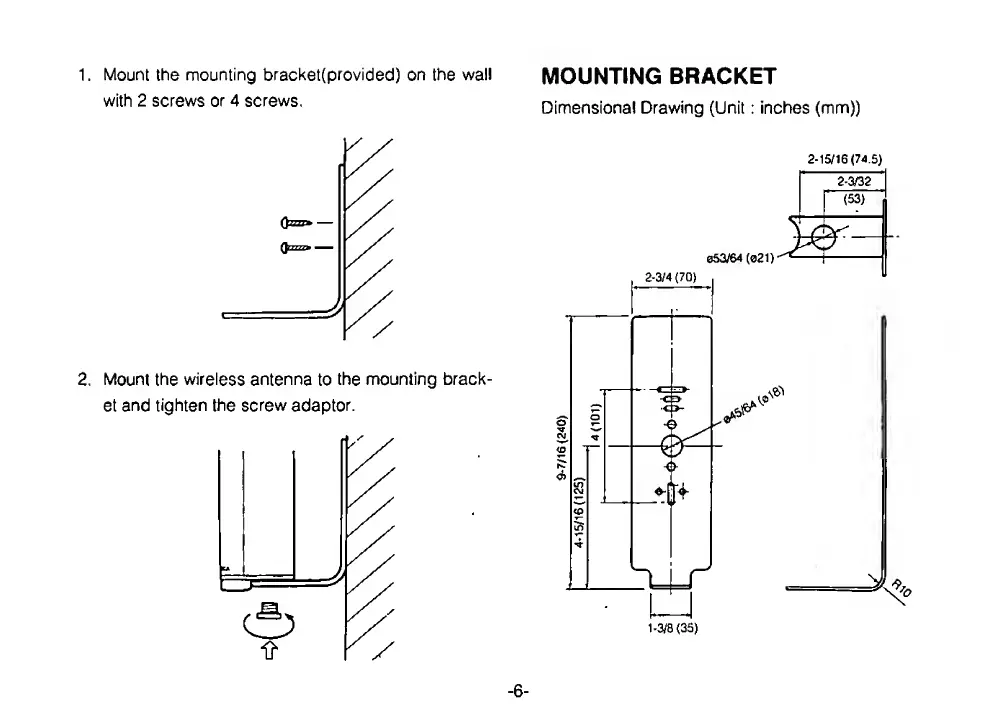

1 . Mount the mounting bracket(provided) on the wall
with 2 screws or 4 screws.
2, Mount the wireless antenna to the mounting brack¬
et and tighten the screw adaptor.
4-15/16(125)
MOUNTING BRACKET
Dimensional Drawing (Unit; inches (mm))
2-15/16(74,5)
1-3/8(35)
- 6 -
