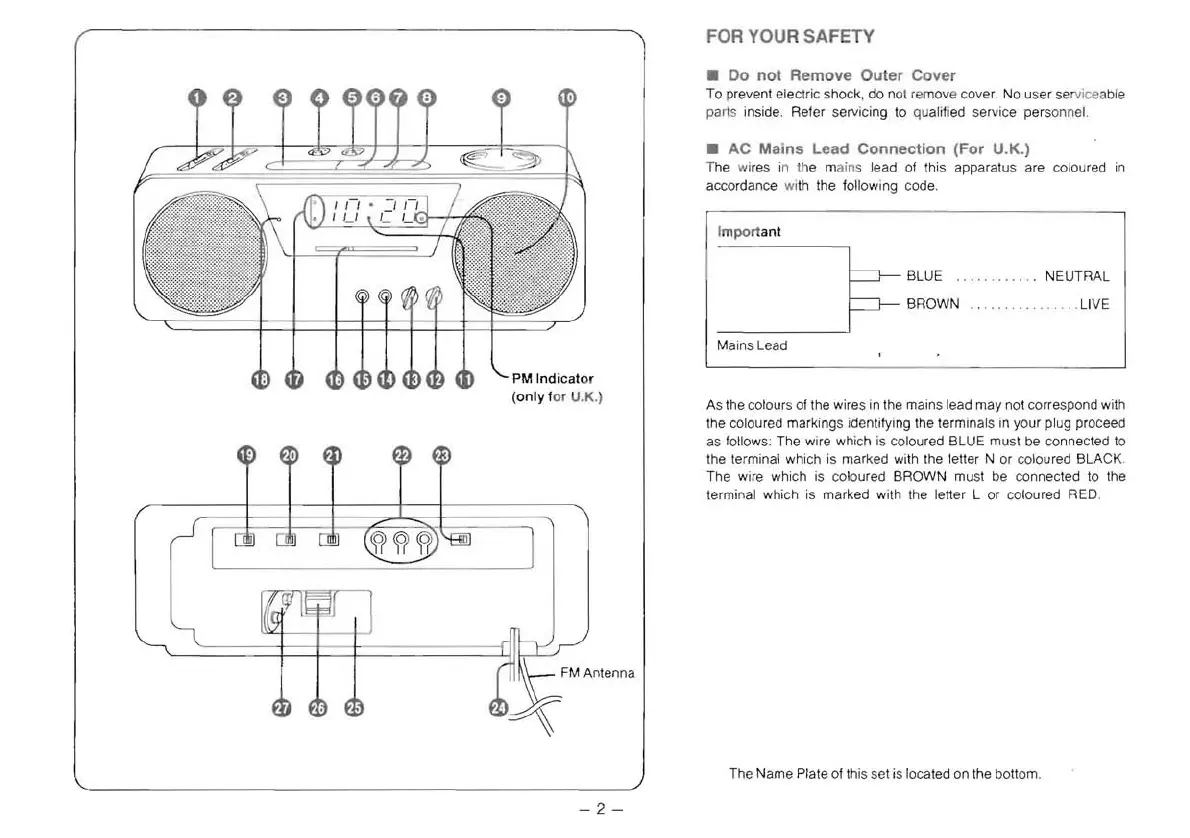

FOR YOUR SAFETY
•
Do
not Remove Outer Cover
To prevent electric shock, do not remove cover. No user serviceable
parts inside. Refer servicing to qualified service person
ne
l.
• AC Mains Lead Connection (For U.K.)
The wires in !he mains lead
of
this apparatus are coloured
in
accordance
wi
th
the following code.
PM
Indica!or
(only for U.K.)
Importan!
~"UE
. .
NEUTRAL
yBROWN
-------'
Mains Lead
.
........
UVE
As the colours of the wires
in
the mains lead may not correspond with
the coloured markings identifying the terminals
in
your plug proceed
as follows: The wire which is coloured BLUE must be connected to
the
te
rminal which is marked with the letter N or coloured BLACK.
The wire which
is
cotoured BROWN must be connected to the
terminal which is marked with the letter L or coloured RED .
The Name Plate
01
this set is located on the bottom.
-2-
