16 Assembling and Disassembling
“ATTENTION SERVICER”
Some chassis components may be have sharp edges. Be careful when disassembling and servicing.
1. This section describes procedures for checking the operation of the major printed circuit boards and replacing the main
components.
2. For reassembly after operation checks or replacement, reverse the respective procedures.
Special reassembly procedures are described only when required.
3. Select items from the following index when checks or replacement are required.
· Disassembly of Top Panel
· Disassembly of Front Panel
· Disassembly of VTR Mecha Unit
· Disassembly of DVD Mecha Unit
· Disassembly of ASP P.C.B.
· Disassembly of Rear Panel
· Disassembly of Power P.C.B.
· Disassembly of Main P.C.B.
· Disassembly of Front Panel A P.C.B.
· Disassembly of Front Panel B P.C.B.
Warning:
This product uses a laser diode. Refer to “Precaution of Laser Diode”.

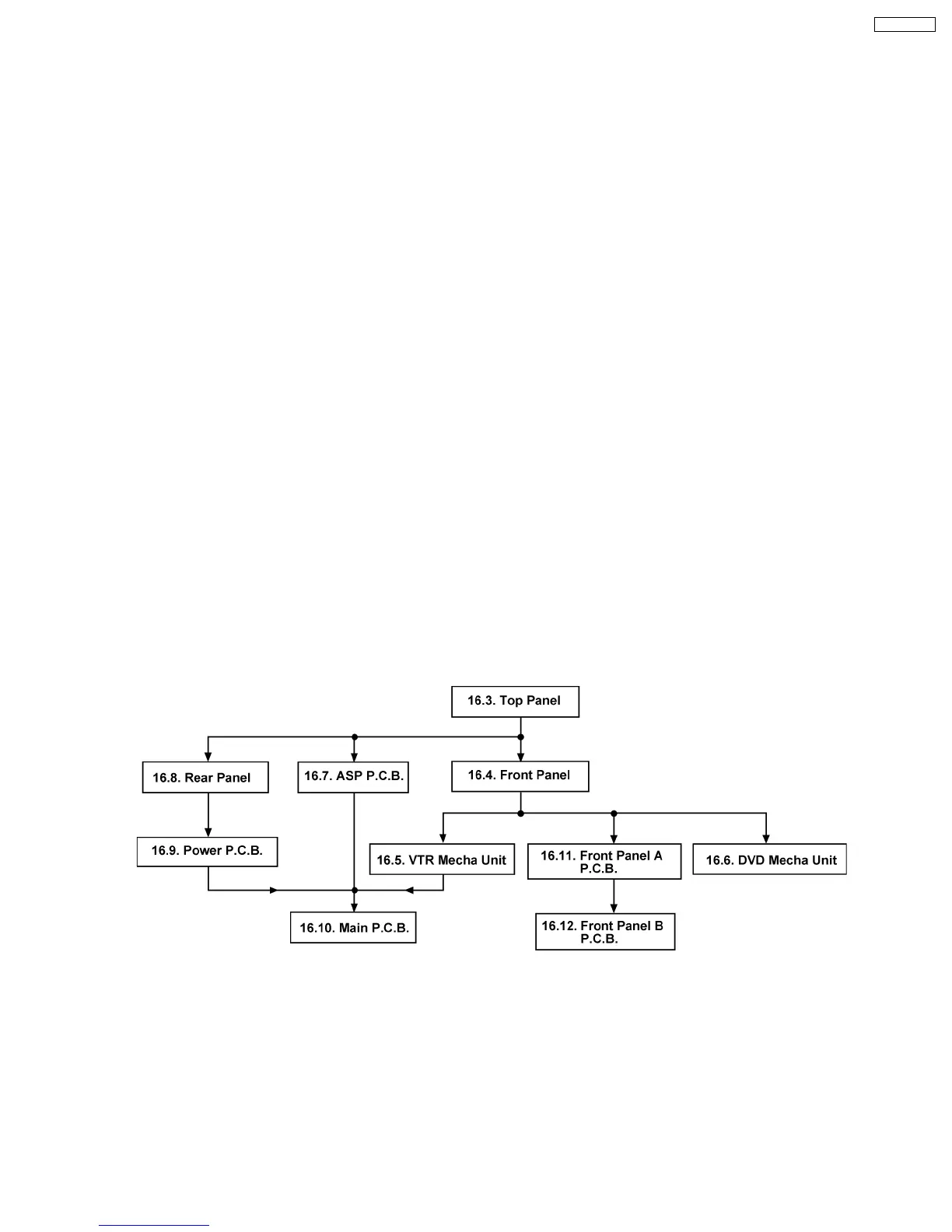

16.1. Disassembly flow chart
The following chart is the procedure for disassembling the casing and inside parts for internal inspection when carrying out the
servicing.
To assemble the unit, reverse the steps shown in the chart below.
