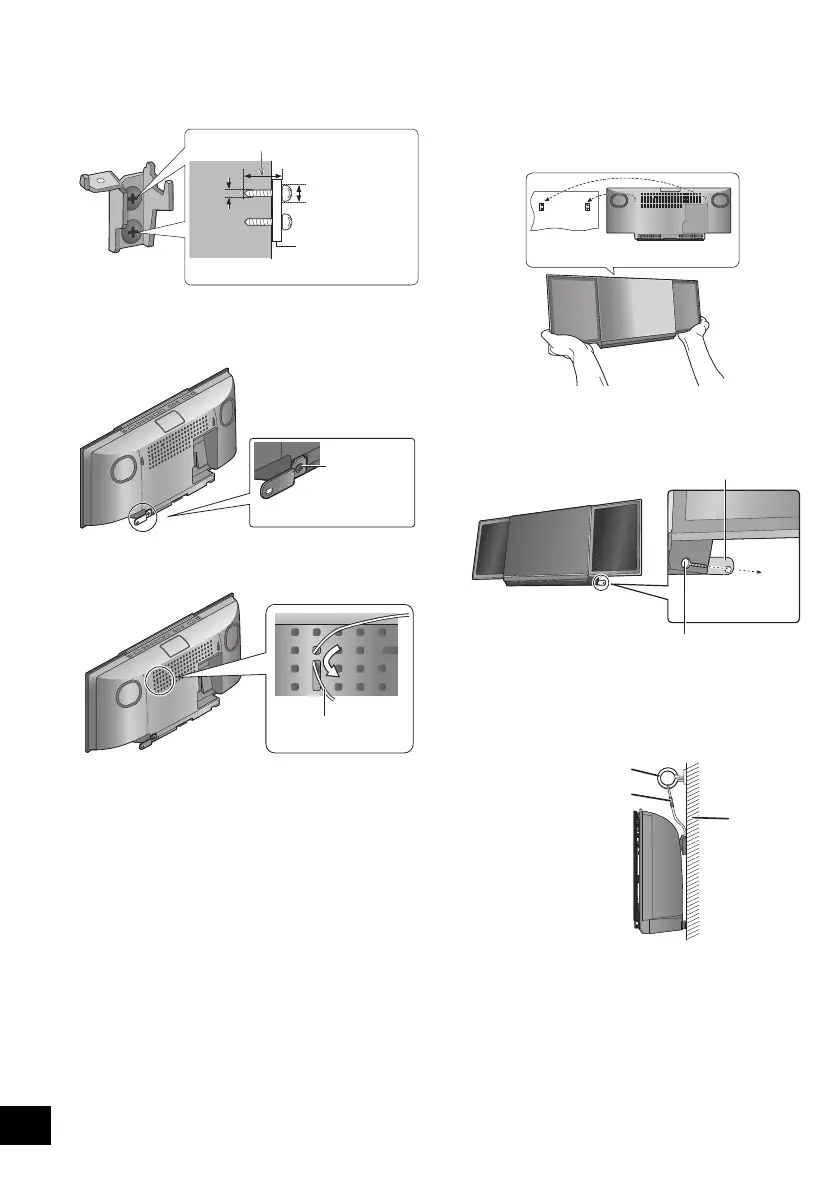

3 Attach the wall mount bracket to the wall with 2
screws (not supplied). (Both sides)
≥ Use a level to ensure both wall mount brackets are
level.
4 Fix the safety holder onto the unit with the screw
(supplied).
{. Screw tightening torque: 50 N0cm to 70 N0cm.
5 Attach the fall prevention cord (not supplied) to this
unit.
6 Hook the unit securely onto the wall mount
brackets with both hands.
≥ After hanging the unit, release your hands carefully to
confirm the unit sits securely on the wall.
7 Drive the safety holder fixing screw (not supplied)
to secure the safety holder onto the wall.
≥ Refer to step 3 for requirements before screwing.
8 Attach the fall prevention cord (not supplied) to the
wall.
≥ Make sure that the slack of the cord is minimal.
At least 30 mm
‰7.5 mm to
‰9.4 mm
‰4 mm
Wall mount bracket
Screw
(supplied)
Cord (not supplied)
≥ Connect the antenna and the AC mains lead to the unit
before hanging the unit onto the wall. (l 5)
Wall
Safety holder fixing screw
(not supplied)
Safety holder
Fixed to the wall
Cord (not supplied)
Screw eye
(not supplied)
Wall
