Panasonic TH-32MS600Z - HDMI Equipment Connections; AV and Audio System Connections

HDMI 1/2
HDMI 1/2
HDMI 1/2
DVD Recorder / VCR
DVD Recorder /
VCR
TV
HDMI cable
HDMI 1/2

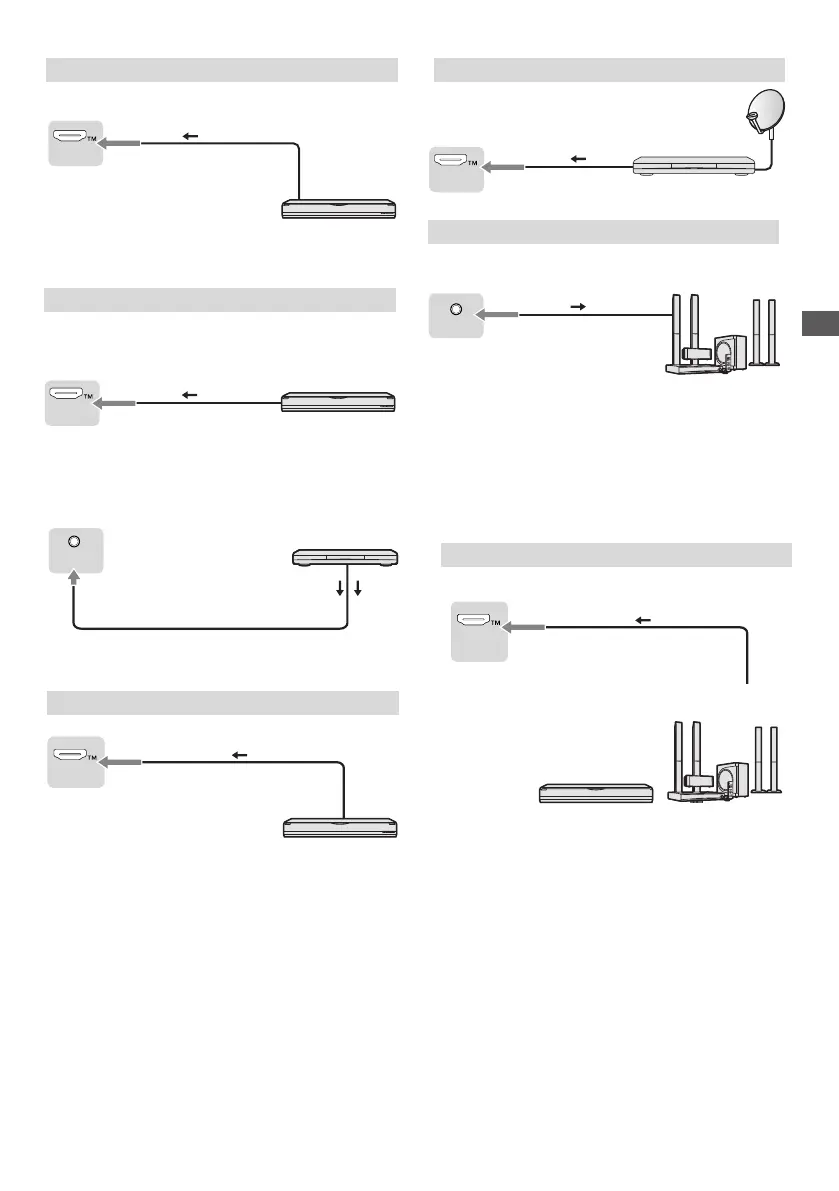

■Using AV terminals
Equipment
MiNi AV Cable
TV
AV in
Set top box
TV
Set top box
HDMI cable
Satellite dish
Speaker system
Coaxial cable
TV
Amplifier with
speaker system
read the manuals of the equipment and amplifier.
●
To enjoy the sound from the external equipment in
multi-channel sound (e.g. Dolby Digital 5.1ch), connect
the equipment to the amplifier. For the connections,
●
Blu-Ray Player
Blu-Ray Player
TV
HDMI cable
AV / Game equipment
■ Using HDMI terminal
TV
HDMI cable
Equipment
Amplifier
Equipment
TV
HDMI cable
HDMI 1
(ARC)
Amplifier with
speaker system
Use HDMI1 to connect the TV to an amplifier which has
ARC(Audio Return Channel) function.
COAXIAL
7
Connecting the TV
