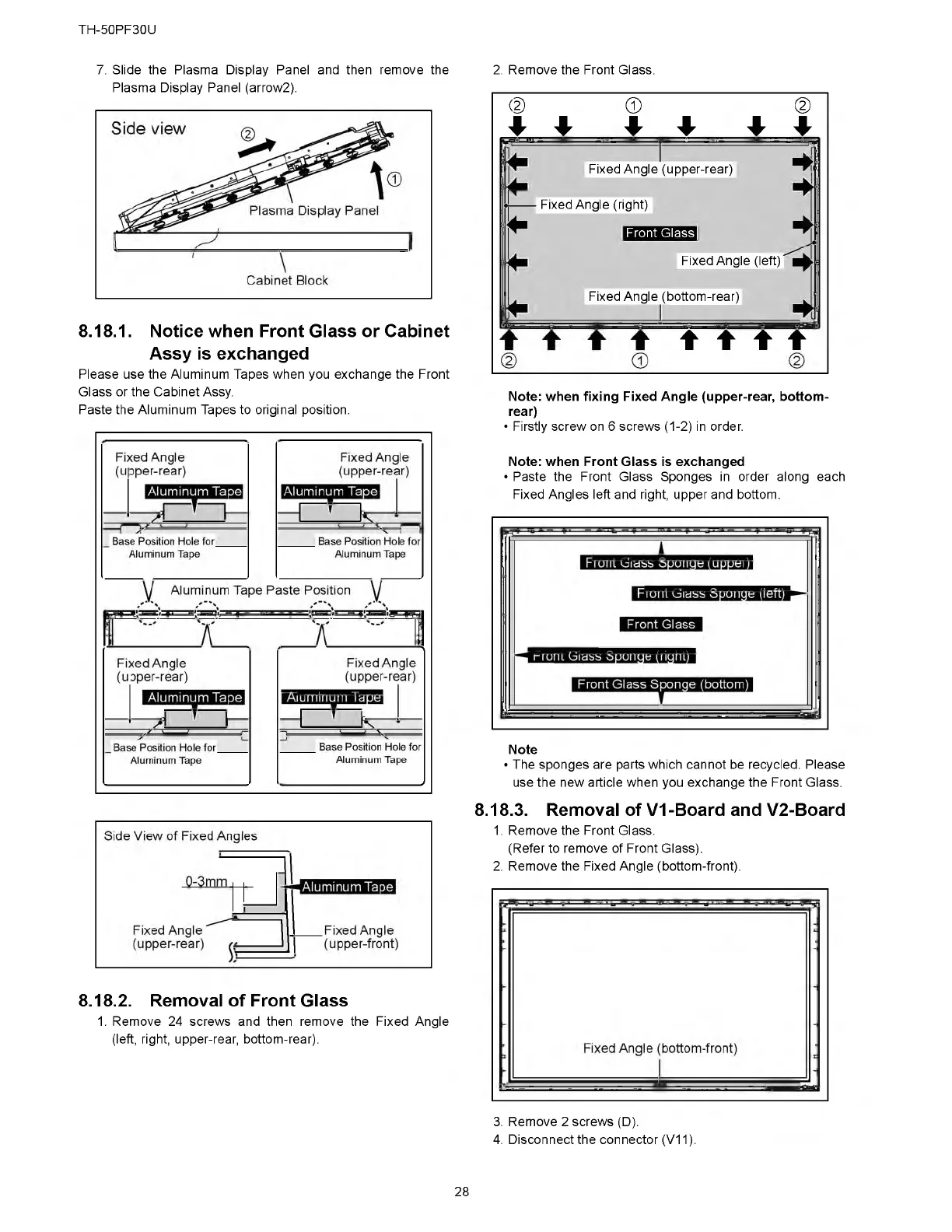

TH-50PF30U
7. Slide the Plasma Display Panel and then remove the
Plasma Display Panel (arrow2).
2. Remove the Front Glass.
8.18.1. Notice when Front Glass or Cabinet
Assy is exchanged
Please use the Aluminum Tapes when you exchange the Front
Glass or the Cabinet Assy.
Paste the Aluminum Tapes to original position.
8.18.2. Removal of Front Glass
1. Remove 24 screws and then remove the Fixed Angle
(left, right, upper-rear, bottom-rear).
<D
*
l«—=j+]—P I
*
©
Ф 1 4
©
*
r
1
Fixed Angle (upper-rear)
■ Fixed Angle (right)
m
*
| Front Glass |
A
Fixed Angle (left) ^ ! |
I i+J n , ,
Fixed Angle (bottom-rear)
t ♦ ft
Note: when fixing Fixed Angle (upper-rear, bottom-
rear)
• Firstly screw on 6 screws (1-2) in order.
Note: when Front Glass is exchanged
• Paste the Front Glass Sponges in order along each
Fixed Angles left and right, upper and bottom.
Note
• The sponges are parts which cannot be recycled. Please
use the new article when you exchange the Front Glass.
8.18.3. Removal of V1-Board and V2-Board
1. Remove the Front Glass.
(Refer to remove of Front Glass).
2. Remove the Fixed Angle (bottom-front).
3. Remove 2 screws (D).
4. Disconnect the connector (V11).
28
