TH-65PF10WK/TK
16
7 Troubleshooting Guide
7.1. Self Check
7.1.1. Display Indication
1. Self-check is used to automatically check the bus line controlled circuit of the Plasma display.
2. To get into the Self-check mode, press the volume down button on the customer controls at the bottom of the set, at the

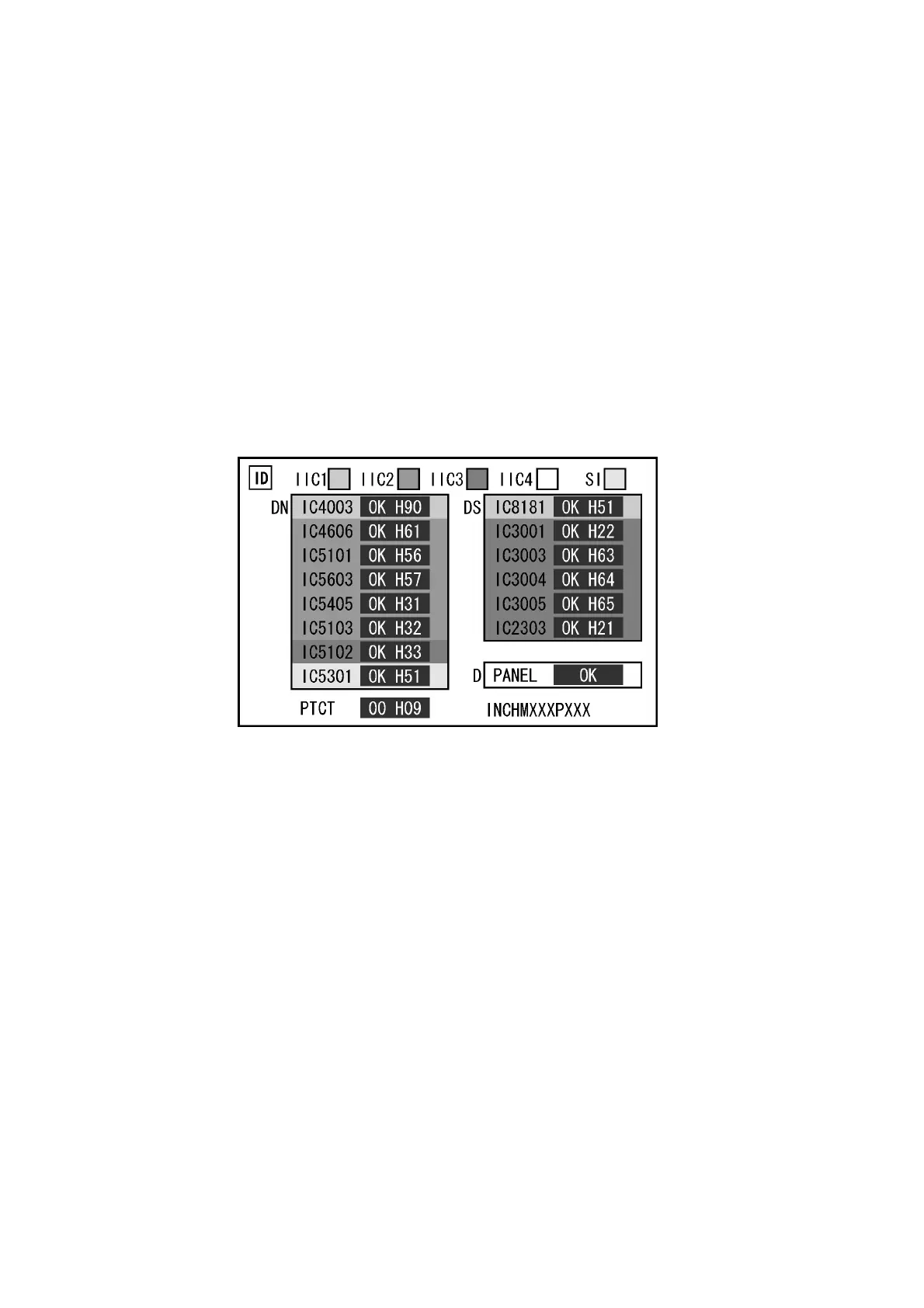

same time pressing the OFF-TIMER button on the remote control, and the screen will show.
If the IIC ports have been checked and found to be incorrect.
Or not located then “ - - ” will appear in place of “ OK ”.
“ 01 ” in the line of the “ PTCT ” means the number of blinks of the Power LED is 1. (Refer to 7.1.2)
“ H09 ” in the line of the “ PTCT ” is the error code.
To exit Self Check mode, switch off the main power.
Note:
The line of the “ PTCT ” displays when you get into the Self-check mode for the first time only after the Power LED blinks.
