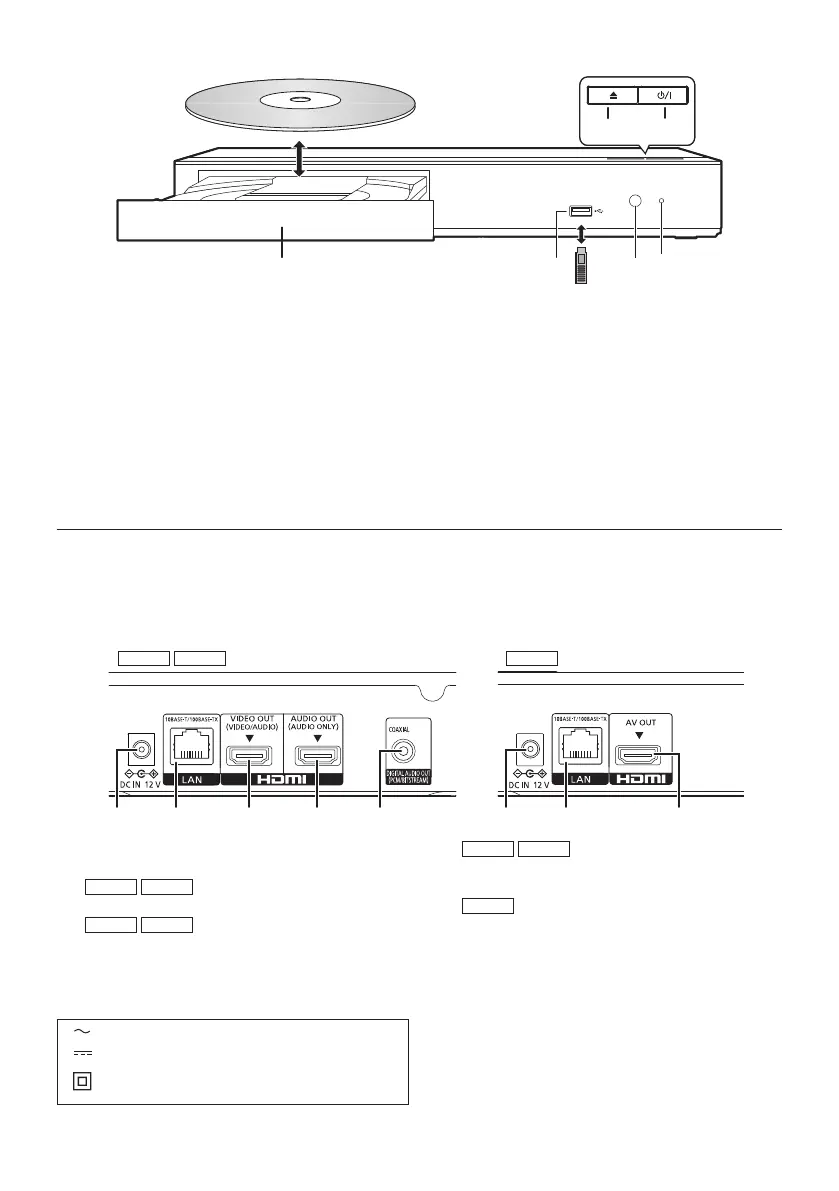

1 Disc tray
2 USB port ( DC 5 V 500 mA)
This port supports USB 2.0 High Speed.
3 Remote control signal sensor
Distance: Within approx. 7 m
Angle: Approx. 20° up and down, 30° left and
right
4 POWER LED
The LED lights up when the unit is turned on,
and ashes when error occurs.
5 Open or close the disc tray
6 Standby/on switch (
v
/
b
)
Press to switch the unit from on to standby
mode or vice versa. In standby mode, the unit
is still consuming a small amount of power.
CAUTION
Do not place objects in front of the unit. The disc tray may collide with objects when it is opened, and
this may cause malfunction.
y
When inserting a media item, ensure that it is facing the correct way, which is the right side facing up.
y
If you connect a Panasonic product with a USB connection cable, the setup screen may be displayed on the connected
equipment. For details, refer to the instructions for the connected equipment.
Rear
3 4 51 2 1 2 6
UB450
UB159 UB150
1 DC IN (12 V) terminal
2 LAN port
3
UB450
UB159
HDMI VIDEO OUT terminal
4
UB450
UB159
HDMI AUDIO OUT terminal
(Outputs digital audio signal only)
5
UB450
UB159
DIGITAL AUDIO OUT terminal
(COAXIAL terminal)
6
UB150
HDMI AV OUT terminal
The symbols on this product (including the accessories)
represent the following.
AC
DC
Class II equipment (The construction of the product
is double-insulated.)
