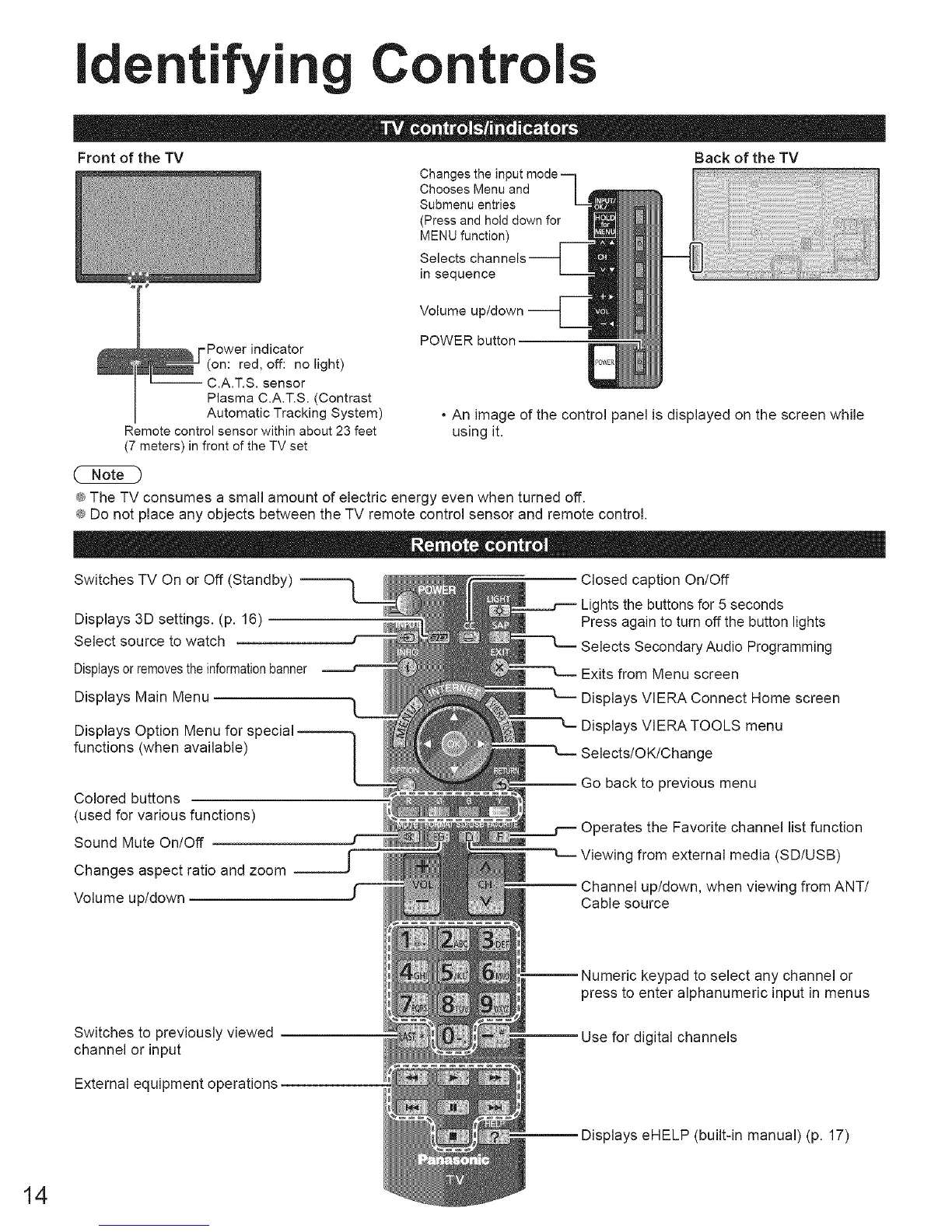

Iden ifying Controls
Front of the TV Back of the TV
Changes the
Chooses Menu and
Submenu entries
(Press and hold down for
MENU function)
Selects
in sequence
Volume up/down --
POWER button
FPower indicator
_(on: red, off: no light)
-- C.A.T.S. sensor
Plasma C.A.T.S. (Contrast
Automatic Tracking System) • An image of the control panel is displayed on the screen while
Remote control sensor within about 23 feet using it.
(7 meters) in front of the TV set
® The TV consumes a small amount of electric energy even when turned off.
® Do not place any objects between the TV remote control sensor and remote control.
Switches TV On or Off (Standby)
Displays 3D settings. (p. 16)
Select source to watch
Displaysorremovestheinformationbanner
Displays Main Menu
Displays Option Menu for special
functions (when available)
Closed caption On/Off
ights the buttons for 5 seconds
Press again to turn off the button lights
•y Audio Programming
Exits from Menu screen
Displays VlERA Connect Home screen
Displays Vl ERA TOOLS menu
_ge
Colored buttons
(used for various functions)
Sound Mute On/Off
Changes aspect ratio and zoom
Volume up/down
back to previous menu
)erates the Favorite channel list function
Viewing from external media (SD/USB)
up/down, when viewing from ANT/
Cable source
14
Switches to previously viewed
channel or input
External equipment operations
Numeric keypad to select any channel or
press to enter alphanumeric input in menus
Use for digital channels
Displays eHELP (built-in manual) (p. 17)
