Panasonic VIERA TH-L32U30T

Technical Information
62

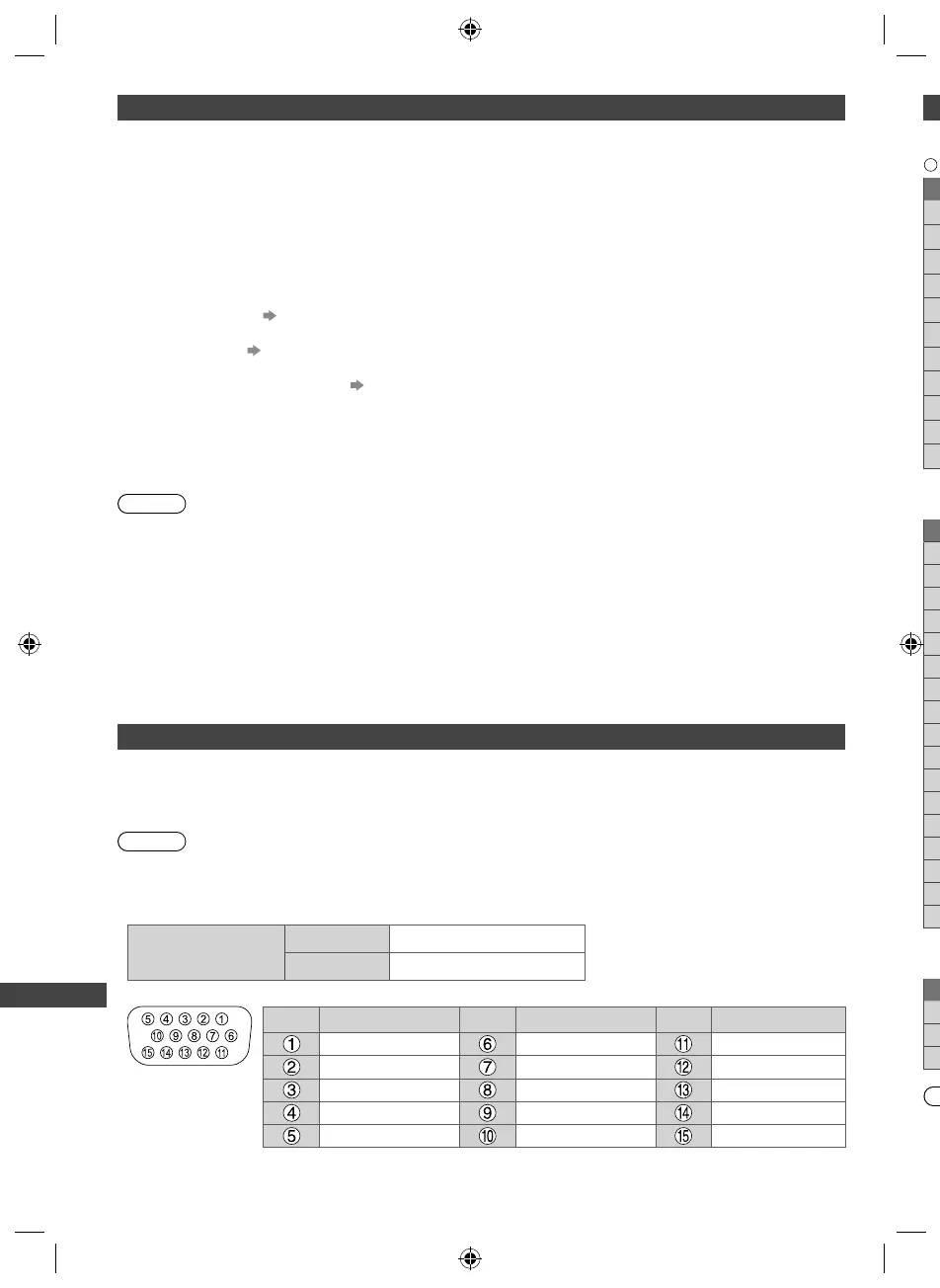

HDMI connection
HDMI (High-Definition Multimedia Interface) is the world’s first complete digital consumer AV interface
complying with a non-compression standard.
HDMI allows you to enjoy high-definition digital images and high-quality sound by connecting the TV
and the equipment.
HDMI-compatible equipment

1
with an HDMI or DVI output terminal, such as a DVD player, a set top box or
a game equipment, can be connected to the HDMI terminal using an HDMI compliant (fully wired) cable.
About connections, see “External Equipment” (p. 58 - 60).
Applicable HDMI features
●
Input audio signal : 2ch Linear PCM (sampling frequencies - 48 kHz, 44.1 kHz, 32 kHz)
●
Input video signal : 480i, 480p, 576i, 576p, 720p, 1080i and 1080p
“Input signal that can be displayed” (p. 63)
Match the output setting of the digital equipment.
●
Input PC signal : “Input signal that can be displayed” (p. 63)
Match the output setting of the PC.
●
VIERA Link (HDAVI Control 5) : [VIERA Link] (p. 53)
●
Audio Return Channel

2
(HDMI2 terminal only)
DVI connection
If the external equipment has only a DVI output, connect to the HDMI terminal via a DVI to HDMI
adaptor cable

3
.When the DVI to HDMI adaptor cable is used, connect the audio cable to the audio
input terminal (HDMI1 / 2: use AV2 audio terminals / HDMI3: use AV3 audio terminals).
Note
●
Audio settings can be made on the [HDMI1 / 2 / 3 Input] in the Sound Menu. (p. 27)
●
If the connected equipment has an aspect adjustment function, set the aspect ratio to [16:9].
●
These HDMI connectors are “type A”.
●
These HDMI connectors are compatible with HDCP (High-Bandwidth Digital Content Protection)
copyright protection.
●
An equipment having no digital output terminal may be connected to the input terminal of
“COMPONENT” or “VIDEO” to receive analogue signals.
●
This TV incorporates HDMI™ technology.

1
: The HDMI logo is displayed on HDMI-compliant equipment.

2
: Audio Return Channel (ARC) is a function that enables the transmission of digital sound signals via an
HDMI cable.

3
: Enquire at your local digital equipment retailer shop.
I
C
O
5
2
5
2
6
2
6
2
7
5
7
5
1
,
1
,
1
,
1
,
1
,
P
C
A
p
6
4
6
4
6
4
8
0
8
0
8
0
8
5
1,
1,
1,
1,
1,
1,
1,
M
M
M
P
C
A
p
6
4
7
5
1
,
●
S
●
T
●
P
s
PC connection
A PC may be connected to this TV so that the PC screen is displayed and sound is heard from the TV.
●
PC signals that can be inputted: Horizontal scanning frequency 31 to 69 kHz; vertical scanning
frequency 59 to 86 Hz (more than 1,024 signal lines could result in incorrect display of the image).
●
A PC adaptor is not necessary for the DOS/V-compliant D-sub 15-pin connector.
Note
●
Some PC models cannot be connected to this TV.
●
When using PC, set the colour display quality of PC to the highest position.
●
For details of the applicable PC signals, see p. 63.
●
Max. display resolution
Aspect
4:3 1,024 × 768 pixels
16:9 1,366 × 768 pixels
●
D-sub 15-pin connector signal
Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name
R GND (Ground) NC (not connected)
G GND (Ground) NC (not connected)
B GND (Ground) HD
NC (not connected) NC (not connected) VD
GND (Ground) GND (Ground) NC (not connected)
