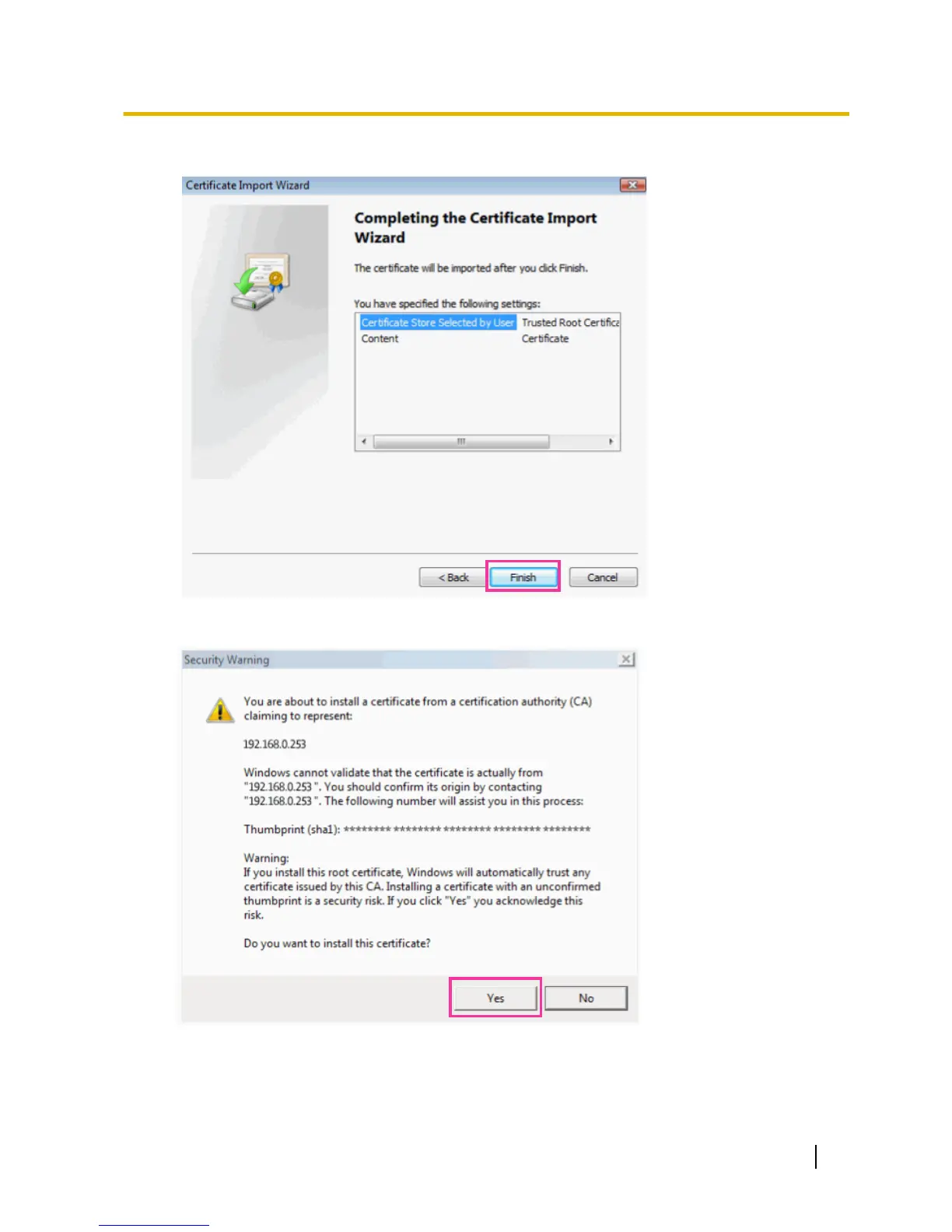

9. Click “Finish”.

10. Click “Yes”.

→ When the import is successfully completed, the screen “The import was successful.” will be displayed.

Operating Instructions 169

18 Configuring the network settings [Network]
