INSTALLATION INSTRUCTIONS
© Panduit Corp. 2017
PN600A
Page 3 of 4
T568A Wiring Scheme
T568A BRN
8
WHT
7
BRN/
6
ORG
WHT
5
BLU/
4
BLU
WHT
3
ORG/
2
GRN
WHT
1
GRN/
Pin #
• The “V” channel should be aligned with the orange pair.
• Insert divider posts into the cable. If the cable has an internal
spline, insert divider posts into the brown and green quadrants
of the spline.
2
BLU
ORG
“V” channel
BRN
GRN
ORG
BLU
BRN
GRN
(Cable end 2)
(Cable end 1)
“V” channel
Drain wire
Drain wire
• Arrange conductors to T568A wiring scheme while
minimizing untwist.
• Seat conductors into proper divider slots while holding divider
flush with cable jacket.
3
“V” channel
(Cable end 1)
(Cable end 2)
Conductor holes and contact slots
Load Bar Divider
Conductor slots and “V” channel
“V” channel
Divider post
1
8
Conductor holes
Contact slots
Pins
Strain relief boot
Strain relief collar
Divider
Load bar
Plug housing with shield
(Cable end 2)
(Cable end 1)

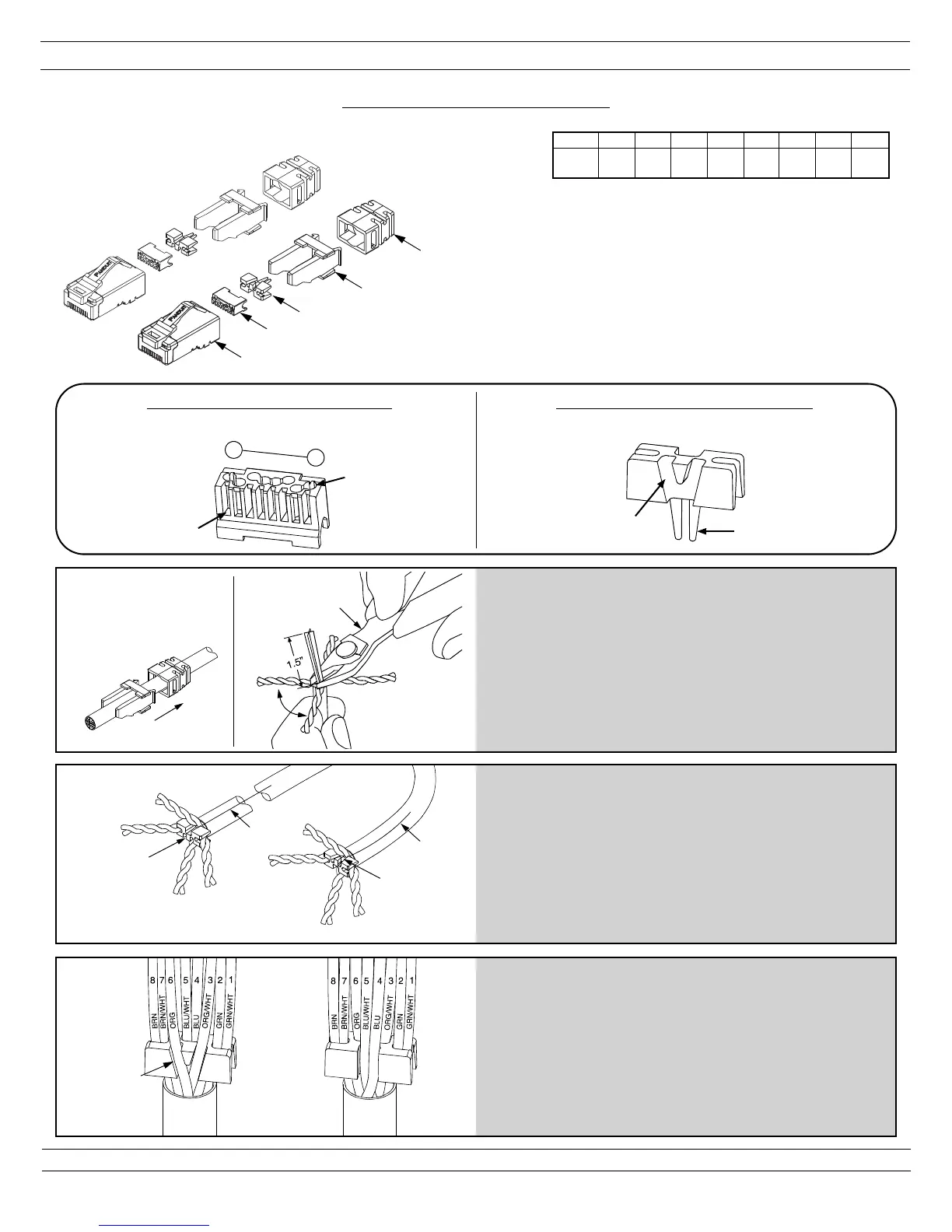

• Thread boot and collar onto cable.
• Remove 1.5" of the outer jacket from the cable end using wire
stripping tool (CJAST).
• Cut foil flush with cable jacket end. If cable is braided, form
into a drain wire. Bend the drain wire back so it is against the
cable jacket.
• Fan twisted pairs into respective quadrants. The brown pair
should be opposite the green pair.
• When a cable spline (X-shaped filler) is present, cut spline
flush to fanned pairs using wire snipping tool (CWST).
1
Thread on boot
and collar first!
(Cable ends 1 & 2)
Specifications
• Cable jacket diameter maximum 0.300 in (7.6mm).
• Solid or stranded conductor maximum insulated diameter
0.047 in (1.2mm).
• Panduit recommends T568A wiring scheme for use with
cable constructed with the brown pair opposing the green
pair.
• For use with F/UTP, U/FTP and S/FTP type cables, which
meet the dimensional requirements. Cable must have drain
wire or braid.
