HD78F-EI03 03/2017
paradox.com

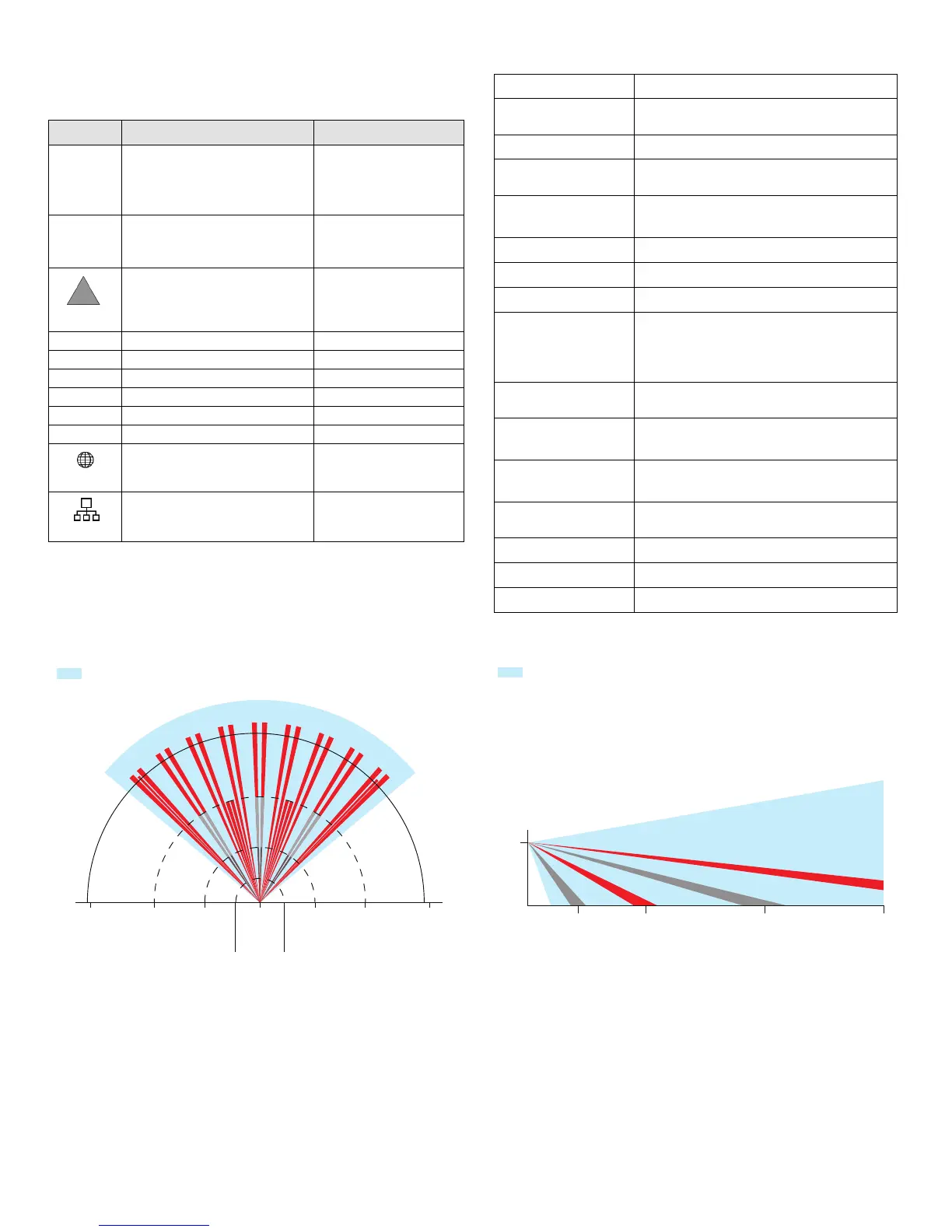

LED Status Indicators
Other than PIR detection, LEDs are active when lock mechanism
is open.
*VOD On/Off LED is controlled by the Master ONLY, using
the Insite GOLD application. PIR Detector Beam Patterns
Top View
Camera View
Technical Specifications
Side View
Camera View
LED Functionality LED Display
TX
Digiplex/Spectra Data TX Flashing green: Data
transmission
Off: No data
transmission
RX
Digiplex/Spectra Data RX Flashing green: Data
reception
Off: No data reception
Firmware upgrade in
progress.
Flashing purple
VOD* Blue on
Power-up Flashing blue
Locate mode Flashing blue
No connection to panel bus Flashing red
Bus low power Flashing red
PIR detection Red on for 3 seconds
Active Wi-Fi Green on
LAN 10/100Mb link Green on: LAN active
12.0m
(40’)
12.0m
(40’)
7.0m
(23’)
7.0m
(23’)
3.5m
(11’)
1.2m
(4’)
1.2m
(4’)
0
3.5m
(11’)
100°
110°
Image Resolution
1280 x 720
Image Sensor Type
1.4 megapixels, CMOS sensor,
7V/LUX.Sec
Streaming Video
720p H.264 10 FPS
HD Audio
16 bit, 24 KHz sampling rate, 32 Kb/s
mono
Pre-event
recording
3 seconds (day color mode)
Internal storage
4 GB
Detection Speed
0.2 m/s to 2.5 m/s (0.6 ft/s to 11.5 ft/s)
Voltage Input
Nominal: 12VDC, range 9-16VDC
Current
Consumption Max
350mA - IR illumination ON
250mA - IR illumination OFF
100mA - System lost AC /
Battery operation
PIR Type
Quad PIR, auto pulse, dual edge, digital
detector
Dimensions /
Weight
H x W x D: 15 x 7.1 x 6cm (6 x 2.8 x
2.4in) / 163g (5.75oz)
Operating
Temperature
-20° C to +40° C (-4° F to 104° F)
Compliance
EN 50131-2-2 Grade 2 Environmental
Class II
Installation Height
2.1m - 2.7m (7ft - 9ft)
Installation options
Wall or corner, swivel bracket optional
Compatibility
SP5500, SP6000 and SP7000
2.1m
(6.8’)
1.7m
(5.6’)
4.0m
(12’)
8.0m
(26’)
12.0m
(40’)
Warranty
For complete warranty information on this product, please refer to the Limited Warranty Statement is found on the website:
www.paradox.com/terms or contact your local distributor. Specifications may change without prior notice.
Patents
US, Canadian and international patents may apply. Paradox is a trademark or registered trademark of Paradox Security Systems (Bahamas) Ltd.
