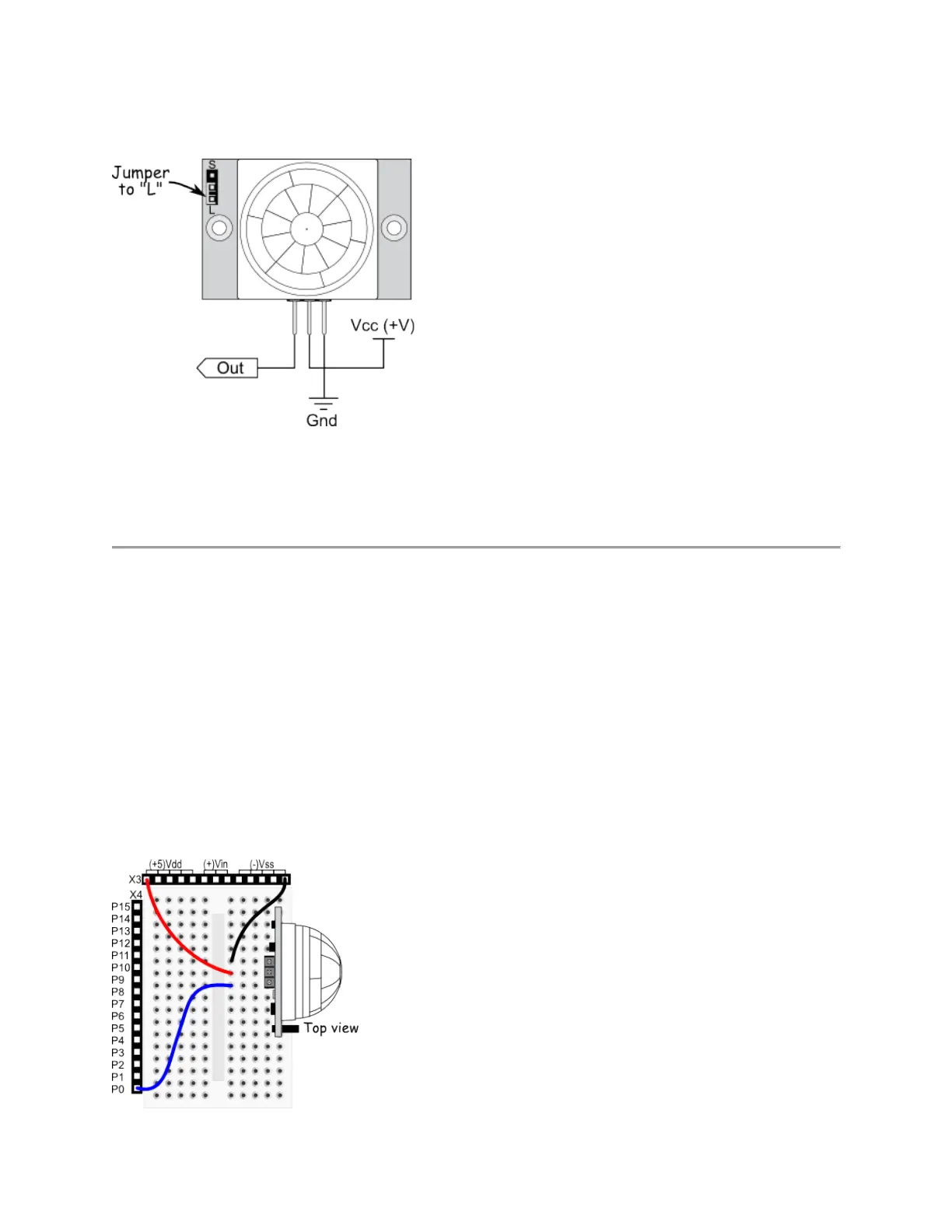

Basic Wiring
• Power requirements: 3 to 6 VDC: 12 mA @ 3 V, 23 mA @ 5 V
• Single bit output: high (triggered) or low (no trigger)
• Dimensions: 1.41 x 1.0 x 0.8 in (35.8 x 25.4 x 20.3 mm)
Program KickStarts
Each of the example programs display the current state of the PIR module in a terminal/debug
window. A settling or “warm up” period is included at the start of each program. Once the sensor
is ready, trigger it by waving your hand in front of the plastic dome.
Note: A red LED inside the dome will glow when the module is triggered. Simultaneously, the
status of the module should change in the terminal/debug window. The sensor will remain
triggered as long as there is continuous movement in front of it. Once motion stops, the sensor
resets itself after approximately 10 seconds.
BASIC Stamp HomeWork Board
