pardo STREAMLINE 3000 Double - Cabinet Components; Cabinet Construction; Pillowcatch

Piano hinge
Both edges to
be cut
at 17
degrees
Detail
DIAGRAM 1
17 deg. angle to both edges
(refer to detail above)
370mm
220mm
Board is to lean back
against the back rail
Pillowcatch
Head Board with 4 x holes
Bolt thru back of pillowcatch so
that the nut is on the inside of the
frame
Piano Hinge
Cupboard
1.
Panels (Double)
1 x Top
1 x Top Back Rail
1 x Back Rail
1 x Front Skirting
1 x Bottom
1 x Right Hand End
1 x Left Hand End
1 x Door
1 x Left Hand Frame Rail
1 x Right Hand Frame Rail
2 x Mid Frame Rail
1 x Top Frame Rail
1 x Bottom Frame Rail
2
x 3mm Packers
Panel #
1
2
3
4
5
6
7
8
9
10
11, 12
13
14
15, 16
Size (mm)
1460 x 446 x 16
1460 x 250 x 16
1460 x 570 x 16
1460 x 100 x 16
1460 x 439 x 16
2100 x 480 x 16
2100 x 480 x 16
1996 x 1456 x 16*
1902 x 160 x 16
1902 x 160 x 16
1870 x 160 x 16
1364 x 160 x 16
1364 x 160 x 16
1800 x 30 x 16
This is the recommended cabinet construction method to ensure the mechanism operates correctly. Variations of construction
should be checked with Pardo. 16 or 18mm thick particleboard doors are recommended.
Mattress size
1400 x 1900 x 250D MAXIMUM depth
Door + Mattress
58 kgs MAXIMUM weight

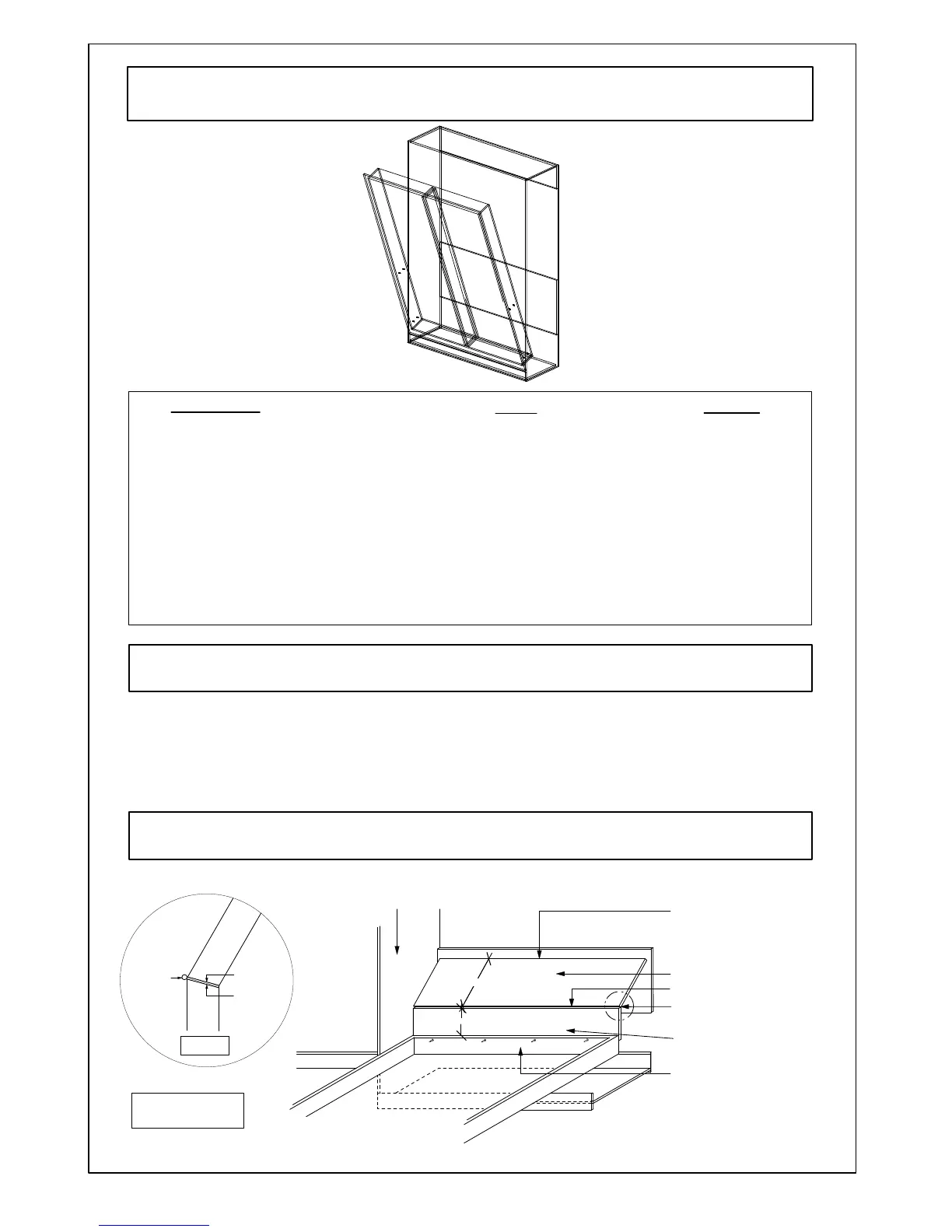

Cabinet Components
Pillowcatch
Cabinet Construction
10.
13.
11.
12.
14.
1.
2.
6.
3.
5.
4.
8.
9.
7.
*If door is produced in 2 x pieces additional structural support is required. Refer to detail H.
