Park Central Arch - 8 Tri-Pod Footing Elevations and Layouts

SWING FRAMES
DATE: 08/29/2014
INSTALLATION GUIDELINES
Page 10 of 20

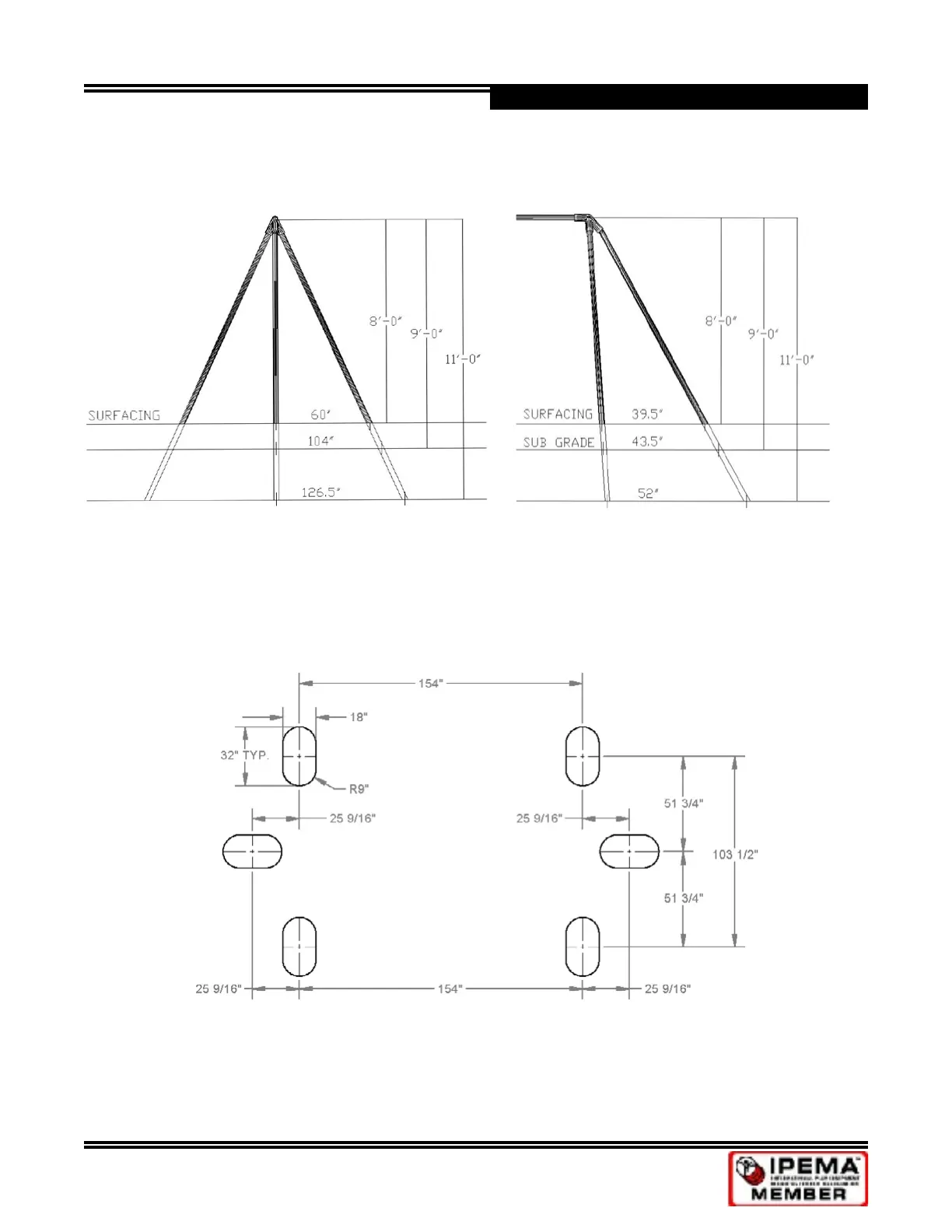

8’ TRI-POD FOOTING ELEVATION - END 8’ TRI-POD FOOTING ELEVATION - SIDE
8’ TRI-POD FOOTING - ONE BAY
8’ TRI-POD
