Park Central Arch - Page 3

SWING FRAMES
DATE: 08/29/2014
INSTALLATION GUIDELINES
Page 3 of 20

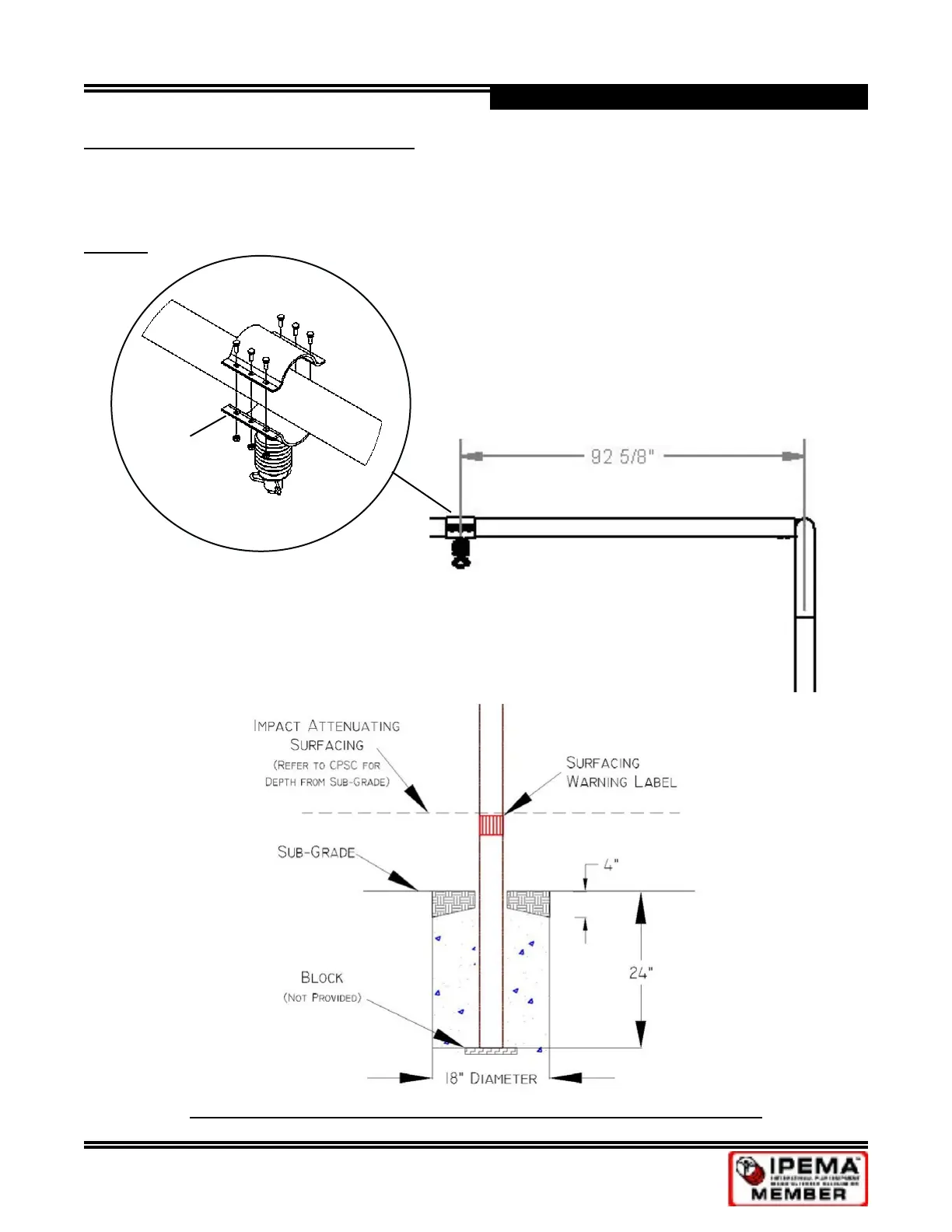

STEP 6 - for TIRE SWING FRAMES ONLY
Select SH-51 tire swivel assembly. Center SH-51 on swing top bar. NOTE: Center of SH-51 will be
92-5/8” from center of vertical post. Attach SH-51 to top bar of swing frame by inserting bolts down
through swivel halves. Secure bottom using provided nuts (see Detail B). Repeat for other SH-51.
SH-51
Detail B
FOOTING ELEVATION - ARCH SWING FRAME OR TIRE SWING FRAME
