DT-3 Instructions / Instructions / Anleitung / Instrucciones
© 2018 Park Tool Co.
PARK TOOL® and the color BLUE are registered trademarks of Park Tool Co.
11/18

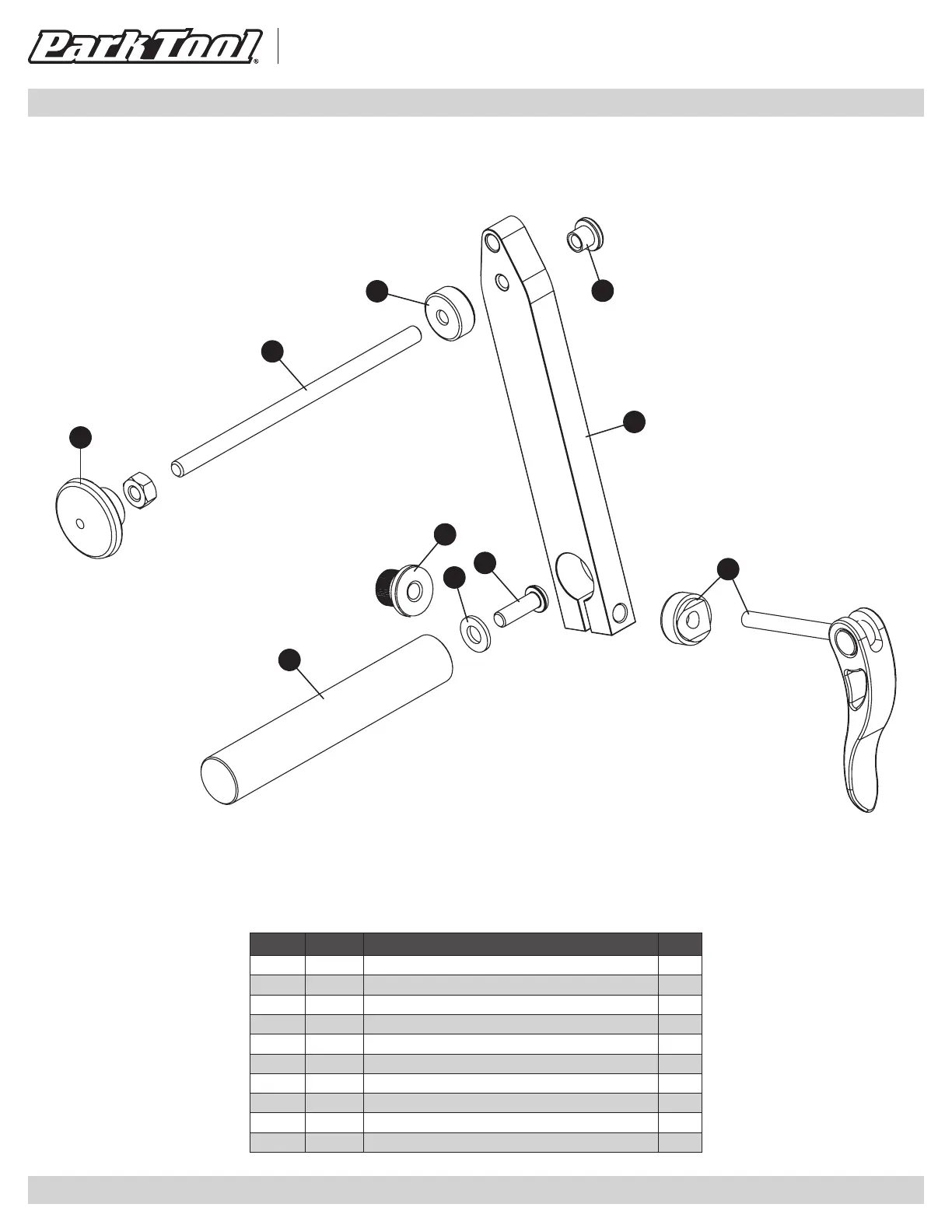

DT-3 PART NUMBERS
Ref. # Part # Description Qty.
1 495 Knob 1/4 - 20 1
2 1758 Threaded Pointer 1
3 1107 Knurled Nut 1/4 - 20 1
4 569 Pointer End Cap 1
5 1755 Body 1
6 929 Quick Release Upright Lock 1
7 133S Button Head Socket Cap Screw 1/4 - 20 -x 7/8 1
8 1556-4 Washer 1
9 1757 Shaft 1
10 131S Hex Nut 1/4 - 20 1
