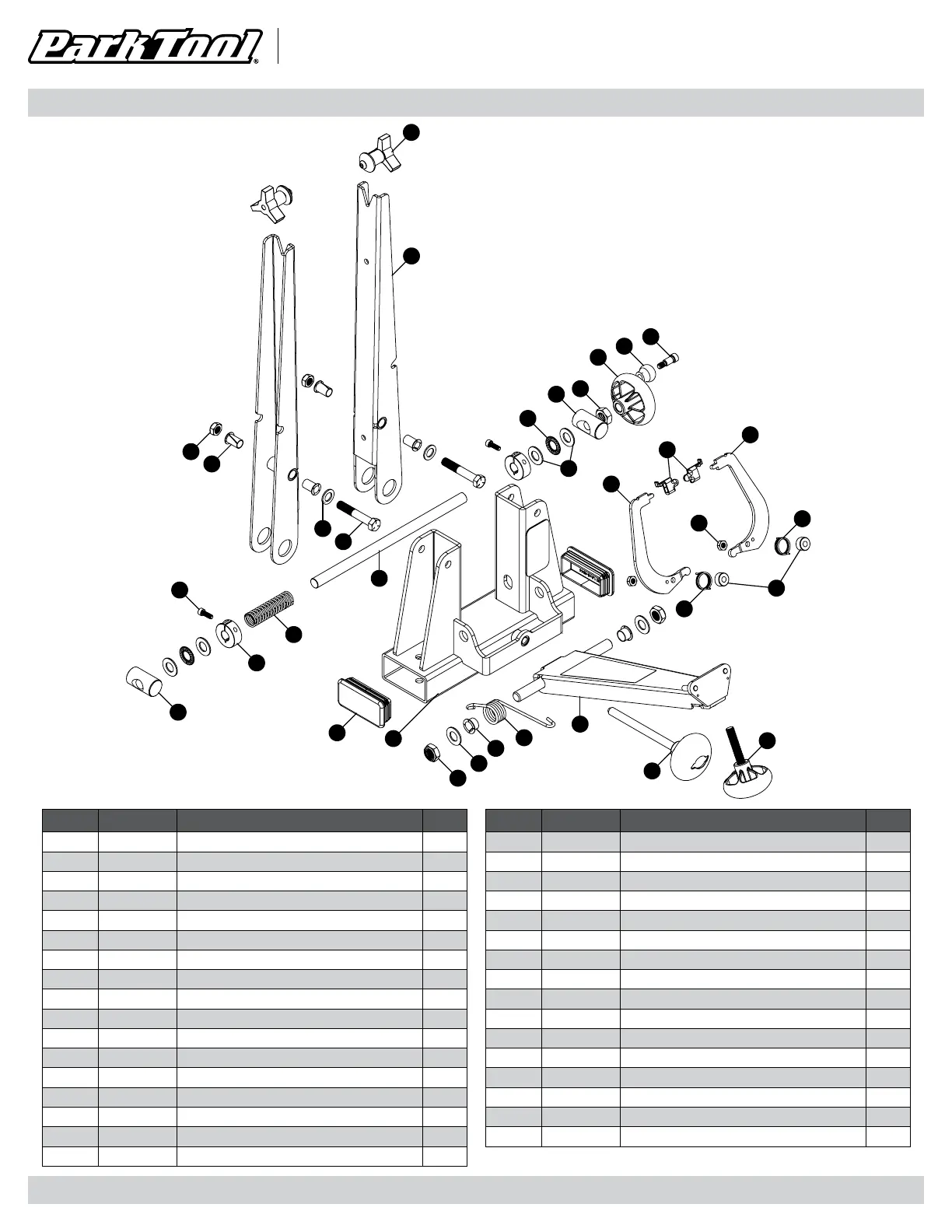

TS-2.3 Parts / Pièces / Teile / Partes
TS-2.3 PART NUMBERS
Ref. # Part # Description Qty.
1 214-2.2P Base Weldment 1
2 232-2 Upright Bushing 4
3 204RS Pivot Bushing, Right 1
4 204LS Pivot Bushing, Left 1
5 211S Main Adjustment Shaft 1
6 209-2 Split Shaft Collar 2
7 229 Main Shaft Spring 1
8 216S Caliper Arm Adjustment Knob 1
9 235-2 Caliper Arm Bushing 2
10 210 Caliper Arm Spring 1
11 228-2R Caliper Spring Spacer 2
12 222SR Caliper Finger Spring, Right 1
13 222SL Caliper Finger Spring, Left 1
14 236R Caliper Finger, Right 1
15 237L Caliper Finger, Left 1
16 238-2 Finger Tip 2
17 223S Caliper Finger Adjustment Knob 1
Ref. # Part # Description Qty.
18 128-3 Flat Washer 2
19 748-1 Needle Bearing 2
20 1458-3 Bearing Washer 6
21 225-2 Bolt, 3/8-24 x 2 1/4” 2
22 230-2 Thin Nylon Lock Nut, 3/8-24 2
23 480-6 Thin Nylon Lock Nut, 1/4-20 2
24 233-2 Thin Nylon Lock Nut, 1/2-20 2
25 212S Locknut, 1/2-13 1
26 2397S Upright Knob 1
27 1967 Knob 1
28 1968 Socket Head Cap Screw, 5/16 x 1/2 1
29 209 Socket Head Cap Screw, M5 2
30 227-2 Base End Cap 2
31 207-2.3P Caliper Arm Assembly 1
32 200-2.3 Long Upright 2
33 TS-2TA .3 Thru Axle Adapter Set 1
1
2
3
4
5
6
7
8
9
10
12
14
15
18
24
22
23
19
25
26
27
28
21
20
17
16
13
11
20
29
31
30
32
33
