TS-8 PART NUMBERS

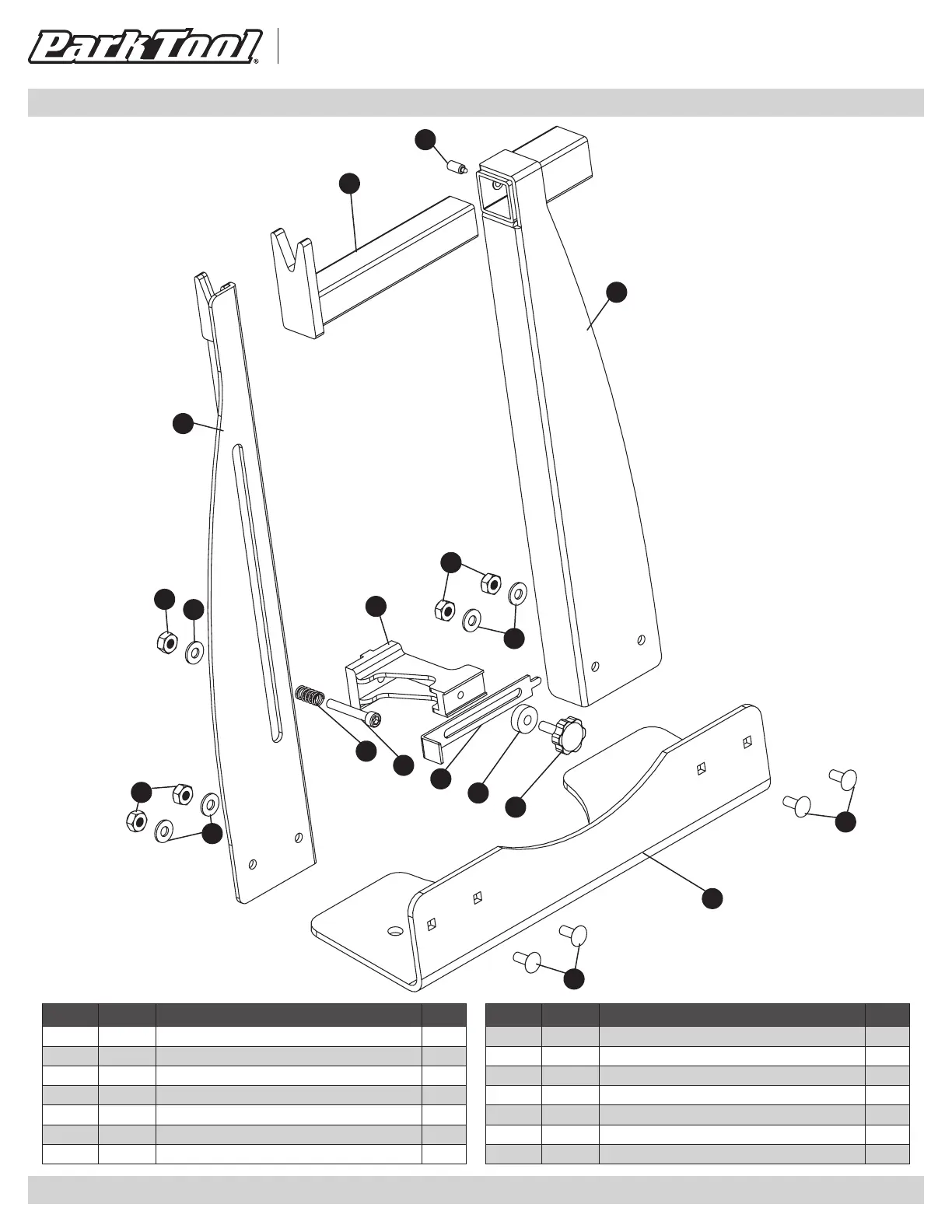

TS-8 Parts / Pièces / Teile / Partes
© 2018 Park Tool Co.
PARK TOOL® and the color BLUE are registered trademarks of Park Tool Co.
08/18
Ref. # Part # Description Qty.
1 1743 Left Upright 1
2 1742 V-Plate Weldment 1
3 1748 Ball Plunger 1
4 1739 Right Upright Weldment 1
5 480-6 Jam Upright Nut 1/4 - 20 5
6 1556-4 Washer 5
7 1735 Base 1
Ref. # Part # Description Qty.
8 542 Carriage Bolt 1/4 - 20 x 5/8 4
9 1746 Gauge 1
10 494 Nylon Gauge Spacer Washer 1
11 259 Knob and Shaft 1
12 1749 Button Head Cap Screw 1
13 1747 Post Spring 1
14 535 Gauge Holder 1
5
6
4
5
7
3
6
8
5
6
14
2
13
12
8
10
1
9
11
