DOC-0017-07-EN: AC20 Series - EtherCAT Option
DOC-0017-07-EN-B 04.04.2023 11 (58)
In the event that the Communication Interface Option Card needs to be removed, follow the installation
process, but perform steps 7 and 8 in reverse.

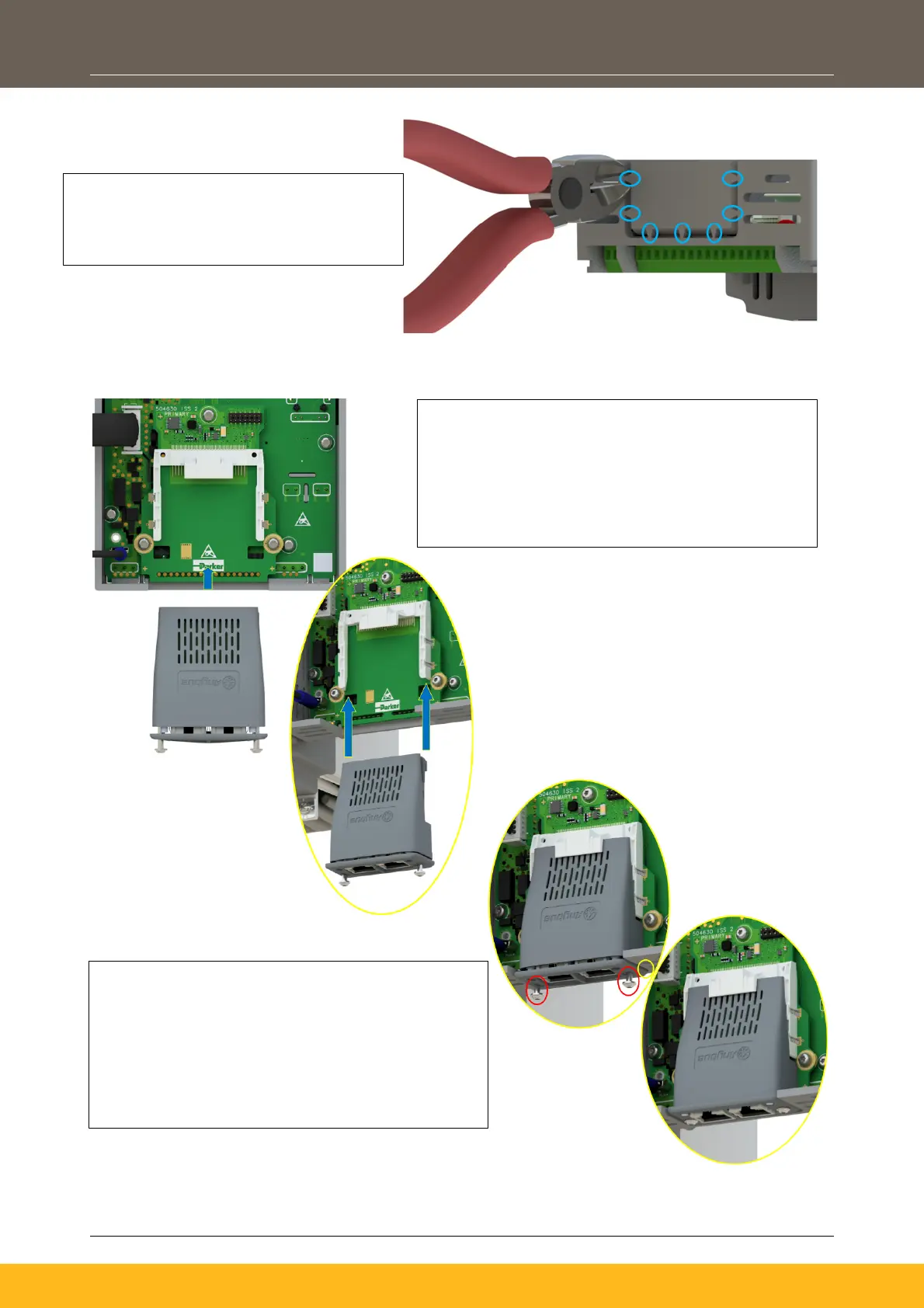

5. Remove and discard the Comms Option
break-out feature in the control module
housing by cutting the 7x bridges using
suitable small side cutters.
6. Remove the Comms Interface Option card from
its packaging.
7. Slide the Comms Card along the PCB using the
connector features for alignment.
Note: The front facia of the Option should be
loose at this point.
9. Now fully tighten the two T8 screws on the front
facia of the Communication Interface Option
Card.
10. Check that the Option Card is secure and that it
cannot slide out.
11. Reassemble the product by performing the
reverse process of steps 1 – 4.
