6-21 Setup Wizard
AC30 series Variable Speed Inverter
Motor Setup

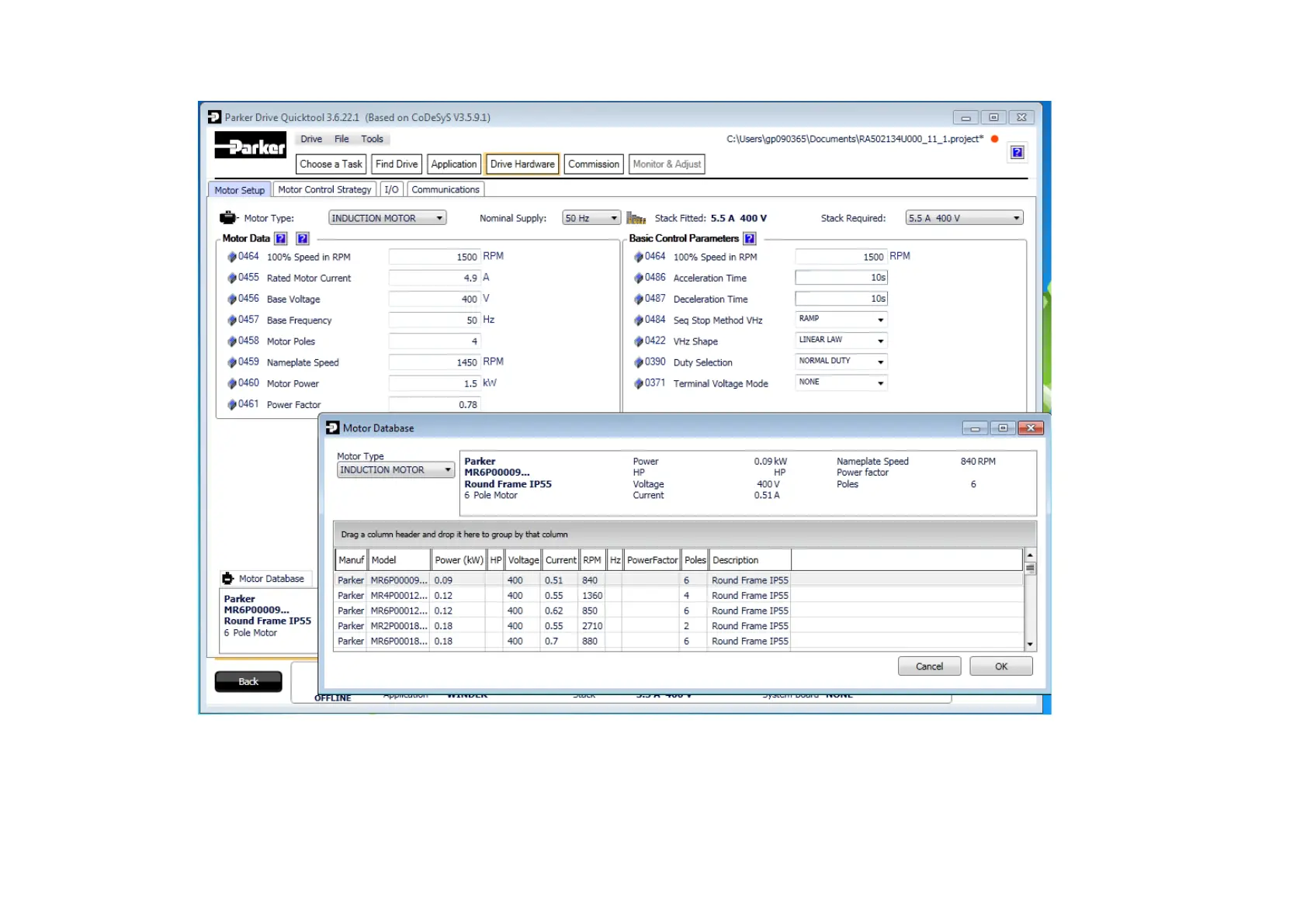

Figure 9-7 Motor selection from database
The Motor Setup tab allows the engineer to define the motor parameters or use the built in motor database to search and select known motor
data. Other parameters such as acceleration and deceleration can also be entered here.
