Mounting the module
5 Mounting
Instruction book, IQAN
5 Mounting
Mounting the module
The IQAN module should be mounted according to the following instructions:
• Locate the module eliminating the risk for the cabling to be folded, crushed or dam-
aged in any way. Ensure the cabling cannot pull, twist or induce sideload on the con-
nector.
• Locate the module so that severe physical impact is avoided, e.g impact from falling
objects or the module being used as a step.
• Locate the module so that air can circulat to eliminate excess heat. Ensure that no
external heat, e.g. from the engine or heater, is transferred to the module.
• Locate the module to protect it from high pressure washing or similar.
• Locate the module so that the cable connector is facing down .
• Locate the module so that the LEDs are visible.

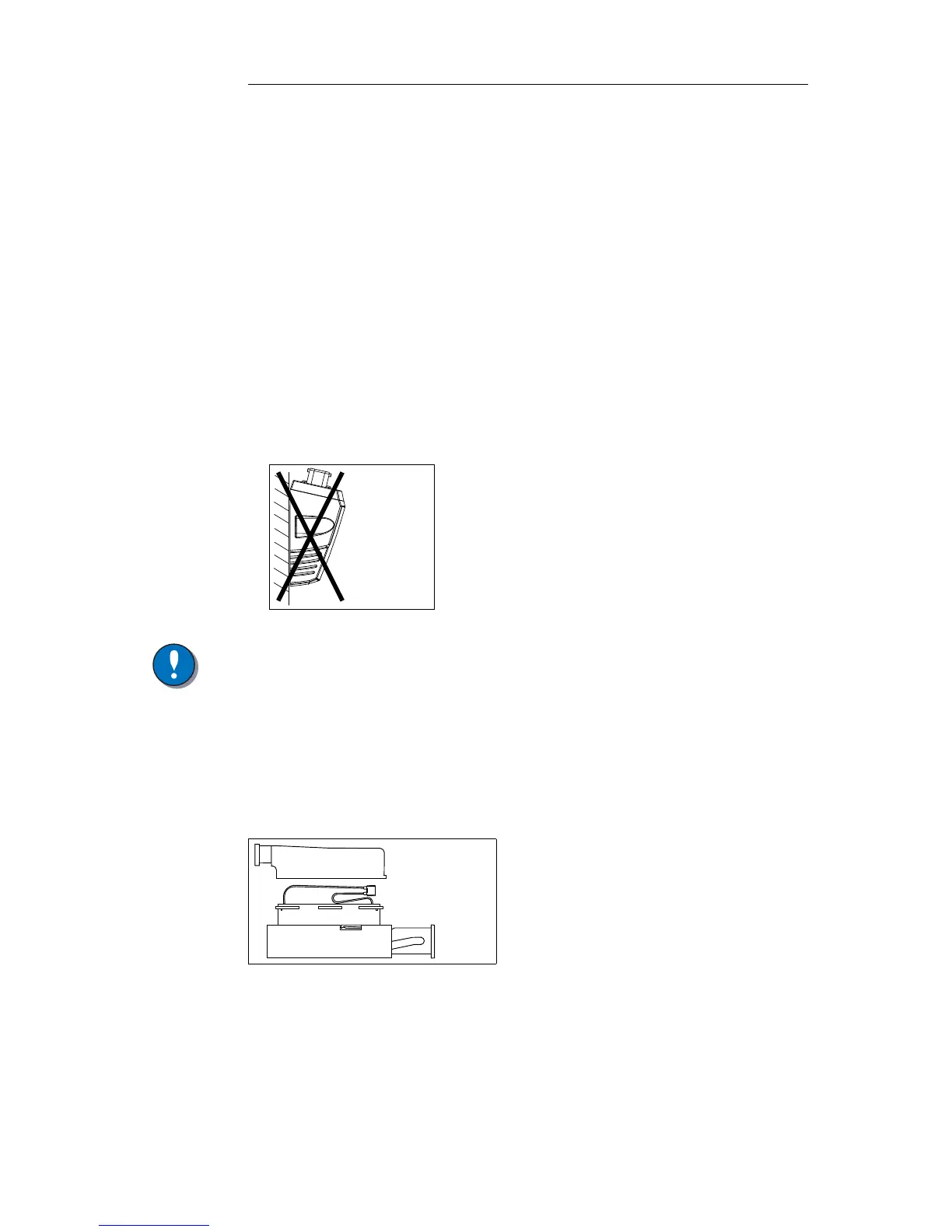

Non approved placing.
NOTICE
The IQAN module must not be placed in any marine related or similar continuously
damp, salt-spray environment without external protection.
Assembling of the ID-Tag
The ID-Tag will be placed in the connector in order to address/ terminate the module.
For IQAN master modules, the use of an ID-tag is application dependant. All IQAN
expansion modules require an ID-tag, ref section "Addressing/terminating".
The ID-Tag will be mounted under the connector casing. Bend the ID-Tag’s wires
toward the opposite side of where the other wires enter the connector.
Assembling of the Id-Tag.
