21GB
Extending the stainless steel nozzle pipe
[9]:
1. Turn the pipe nut[] in an anti-clockwise
direction until it is loose.
2. Pull out the stainless steel nozzle pipe[9]
by the tip until it reaches the desired length.
3. Turn the pipe nut[] in a clockwise
direction until it is tight.
NOTE
u To avoid contamination of environment,
operator or bystanders, extend the length
of the stainless steel nozzle pipe[9] if
necessary.
Adjusting the cone spray
head on the stainless steel
nozzle pipe
(Fig.J)
The cone spray head[] is pre-installed on the
stainless steel nozzle pipe[9].
Adjusting the spray pattern
o Jet: Turn the tip of the cone spray head[]
in an anti-clockwise direction (loosen the
cone spray head).
o Mist: Turn the tip of the cone spray
head[] in a clockwise direction (tighten
the cone spray head).
Attaching the plastic nozzle
pipe
(Fig.K,L)
Connect either end of the plastic nozzle
pipe[] to the shut-off valve[].
Push the O-ring[], security ring[] and
the union nut[] towards the thread on the
shut-off valve[].
Turn the union nut[] in a clockwise
direction until it is tight (Fig.G).
Attaching the nozzle
accessories
The nozzle accessories[] are to be assembled
only with the plastic nozzle pipe[].
The nozzle accessories are not to be assembled
with the stainless steel nozzle pipe[9].
o Insert the desired nozzle accessory[] into
one end of the plastic nozzle pipe[].
o Push the O-ring[], security ring[] and
the union nut[] towards the thread on the
nozzle accessory[].
o Turn the union nut[] in a clockwise
direction to tighten it on the thread of the
nozzle accessory[].

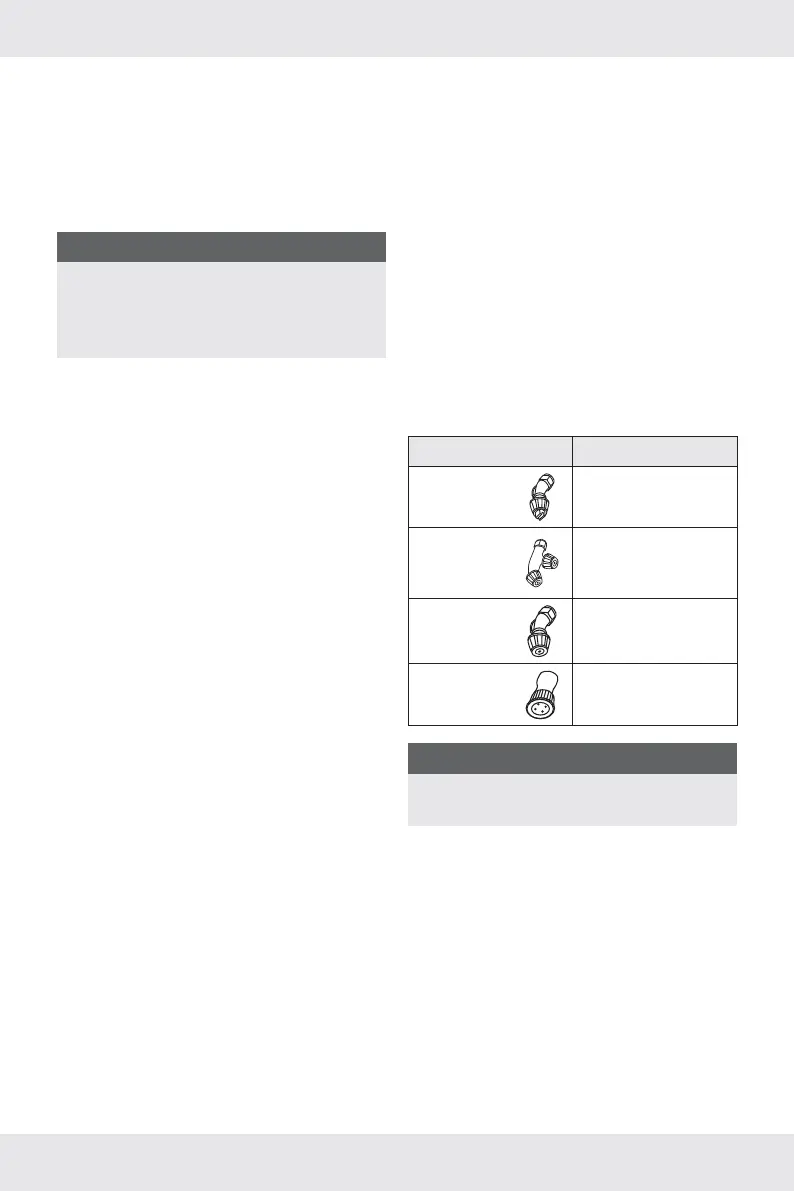

Choosing the suitable nozzle accessory
Nozzle Application
Fan nozzle
Uniform spray pattern
Double head
nozzle
Spraying large areas
Spraying large crops
High flow rate
Single head
nozzle
Spraying small areas
Spraying large crops
Mist nozzle
Spraying mist
High flow rate
NOTE
u Only use the nozzles and filters supplied
with the product.
