HHP-2 Parts / Pièces / Teile / Partes
© 2018 Park Tool Co.
PARK TOOL® and the color BLUE are registered trademarks of Park Tool Co.
12/18
8
10
11
7
9
6
5
4
3
1
2
13
12

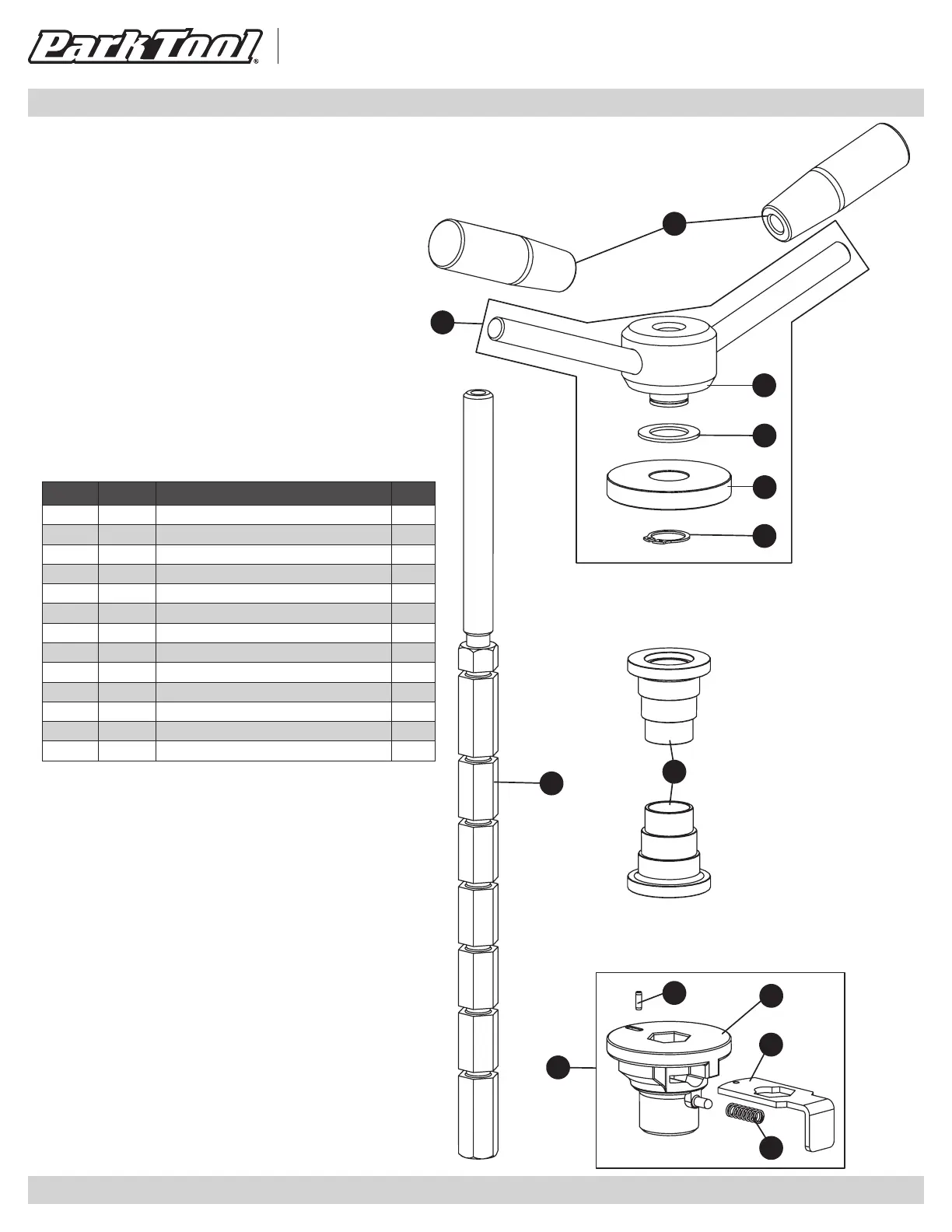

HHP-2 PART NUMBERS
Ref. # Part # Description Qty.
1 526 Handle weldment 1
2 526-2 Handle knob 2
3
529 Nylon washer 1
4 520 Moveable plate 1
5 518 Circlip 1
6 530-2 Cup guides (pair) 1
7 514 Sliding lever 1
8 527 Split pin 1/8” x 3/8” 1
9 525 Spring 1
10 512 Sliding press plate 1
11 524 Hex shaft 1
12 512A Sliding press plate assembly —
13 526C Threaded press plate assembly —
