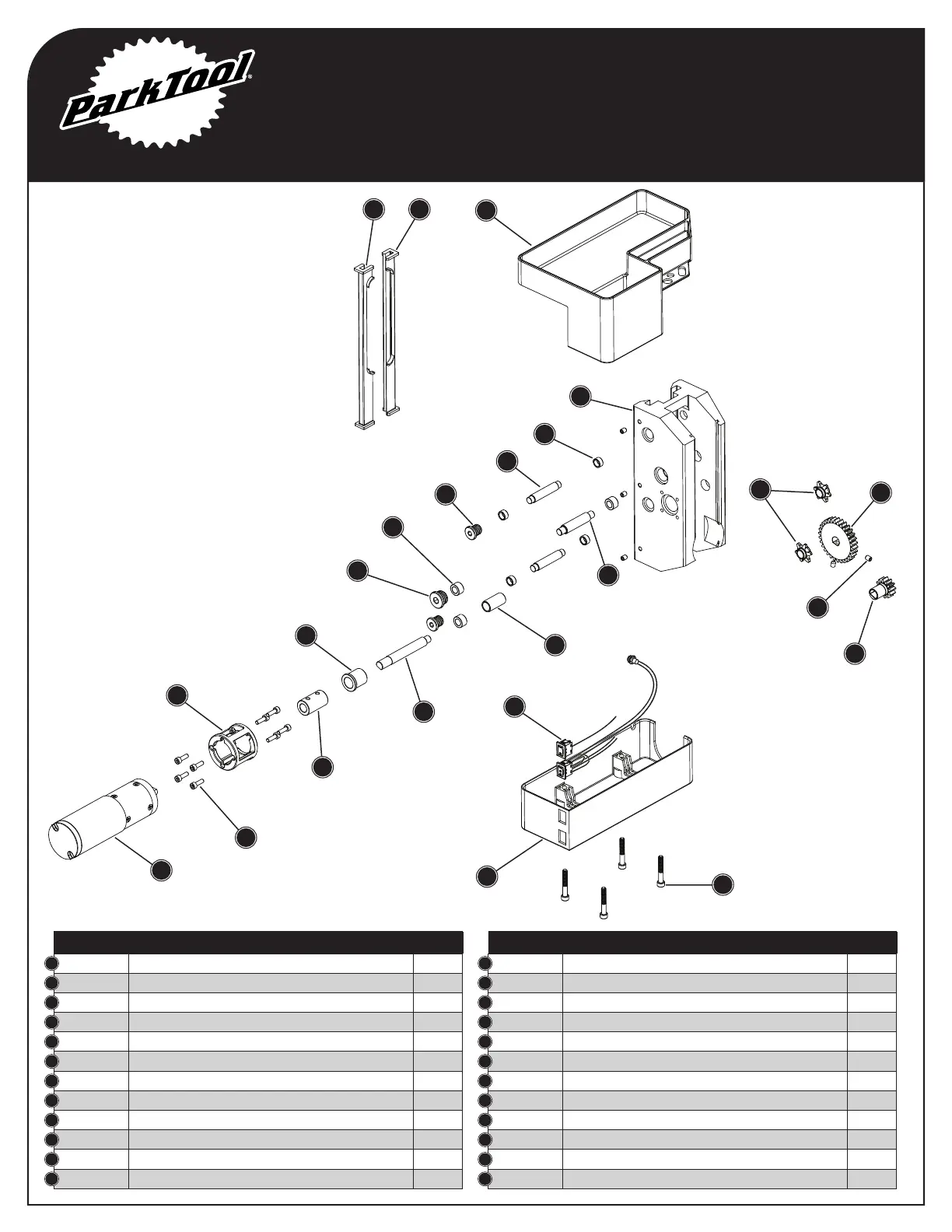

2105 Carriage Assembly
for PRS-33 / PRS-33AOK
9
8 7
5
6
3
4
2
1
10
14
18
15
16
11
12
17
19
13
20
21
22
23
24
2105 Part Numbers
Part No. Description
Qty.
2120 Carriage 1
2121-4 Idler Shaft Bearing 4
2122-2 Idler Sprocket Shaft 2
2123-2 Idler Sprocket 2
2126-2 Drive Shaft Bearing 5
2124 Drive Shaft 1
2129 Carriage Bearing, Right 1
2130 Carriage Bearing, Left 1
2131 Drive Gear and Sprocket 1
2133 Drive Gear Shaft 1
2132 Drive Gear 1
2137 Flanged Bearing 1
Part No. Description
Qty.
2134 Motor Mount 1
2135 Motor 1
2136 Shaft Coupling 1
2139 Motor Enclosure 1
2144 Drive Plug 1
2141-8 Socket Head Cap Screw, M5 x 0.8 x 16 8
2145 Idler Plug 2
2138 Work Tray Top 1
541 Socket Head Cap Screw, M6 x 40 4
2149 Wiring Harness (includes wiring & both switches) 1
609 Set Screw, M6 x 8 mm 5
2146 Drive Gear Spacer 1
