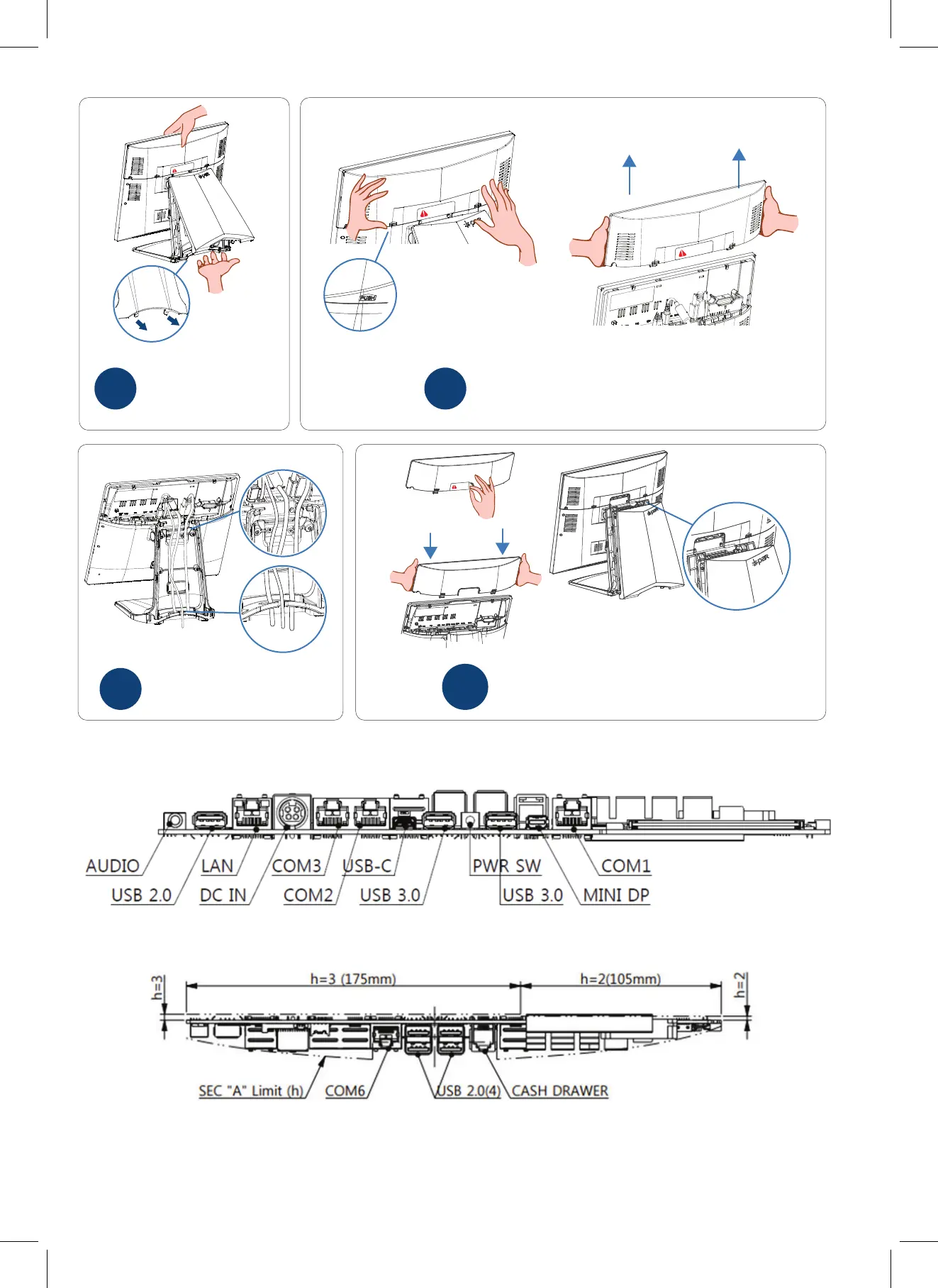

Accessing the i/o well & Connecting Cables
Main i/o Board
Additional i/o
Remove the stand cover by
holding the terminal with
one hand and pulling the
bottom of the stand cover
by the cover hooks.
1
Connect your cables in the designat-
ed I/O ports and then route through
the terminal stand.
3
Remove the I/O cover by pressing the two
tabs and pulling the cover straight up away
from the terminal.
2
NOT A HANDLE
NOT A HANDLE
Remove the sticker from the I/O cover, then
replace the cover on the terminal. Replace the
stand cover by rst connecting the top tabs
then pressing on the bottom.
4
NOT A HAND
NOT A HANDLE
Port capacity
USB-C: Input 12V / 5A, Output 5V / 1.5A
Cash Drawer: 24V / 0.2A
