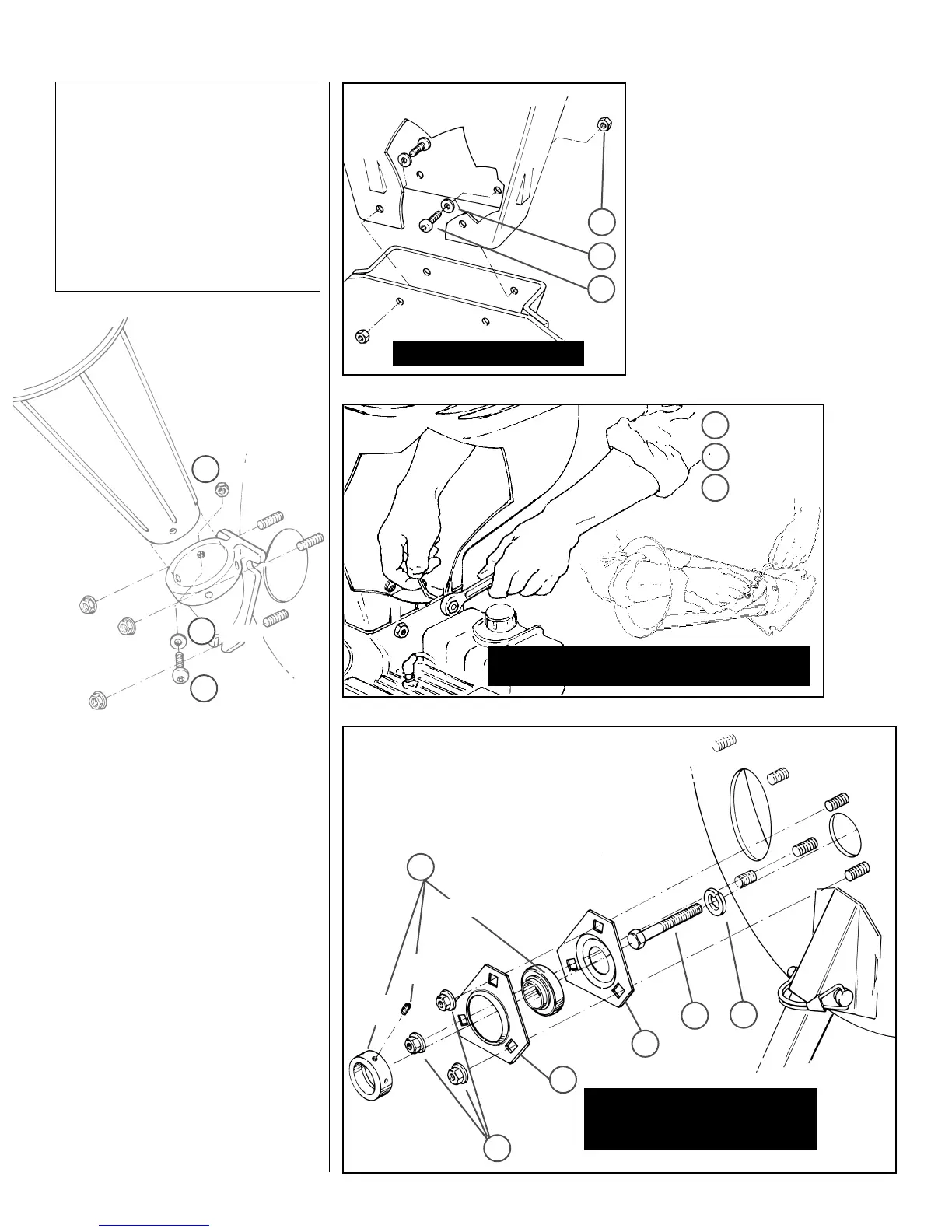

Detail of the outboard bearing assembly.
The bearing is sealed and does not need
lubrication.
Both the shredder hopper and the chipper cone are
assembled with the same hardware and wrench.
21
39A
39B
30
32
Screws (inside)
33
Washers (inside)
31
Nuts (outside)
Detail of the shredder hopper.
32
33
31
27
29
page 20
set
screw
lock
collar
bearing
CAUTION: THE ROTOR WILL COAST
EVEN AFTER THE ENGINE IS OFF. MAKE
SURE THE ROTOR STOPS TURNING,
THEN DISCONNECT THE PLUG
WIRE FROM THE ENGINE BEFORE
ATTEMPTING ANY MAINTENANCE OR
CLEAN-OUT. IF THE ROTOR IS STILL
TURNING, IT MAY CAUSE SERIOUS
PERSONAL INJURY.
▲
!
32
Screw
33
Washer
31
Nut
