Pco Edge 3.1 User Manual

62
A1.4 SPECIFICATIONS
General
power supply
12 .. 24 VDC (+/- 10 %)
power consumption
CL
1
20 W max. (typ. 10 W @ 20 °C)
USB
21 W max. (typ. 11 W @ 20 °C)
CLHS
3
32 W max (typ 20 W @ 20 °C)
weight (with F-mount)
CL
1
700 g
CL WAT
2
1160 g
USB
930 g
CLHS
3
1010 g
operating temperature range
+ 10 °C .. + 40 °C
operating humidity range
10 % .. 80 %
(non-condensing)
storage temperature range
- 10 °C .. + 60 °C
optical interface
F-mount & C-mount
CE / FCC certified
yes
1
Camera Link,
2
Camera Link watercooled,
3
Camera Link HS
Sensor
type of sensor
scientific CMOS (sCMOS)
dynamic range
16 bit
image sensor
CIS2020
CIS 2521
resolution (h x v)
2048 x 2048 active
pixel /
2560 x 2160 active
pixel
pixel size (h x v)
6.5 µm x 6.5 µm
6.5 µm x 6.5 µm
sensor format / diagonal
13.3 mm x 13.3 mm /
18.8 mm
16.6 mm x 14.0 mm /
21.8 mm
fullwell capacity (typ.)
30 000 e-
30 000 e-
spectral range
370 nm .. 1100 nm
370 nm .. 1100 nm

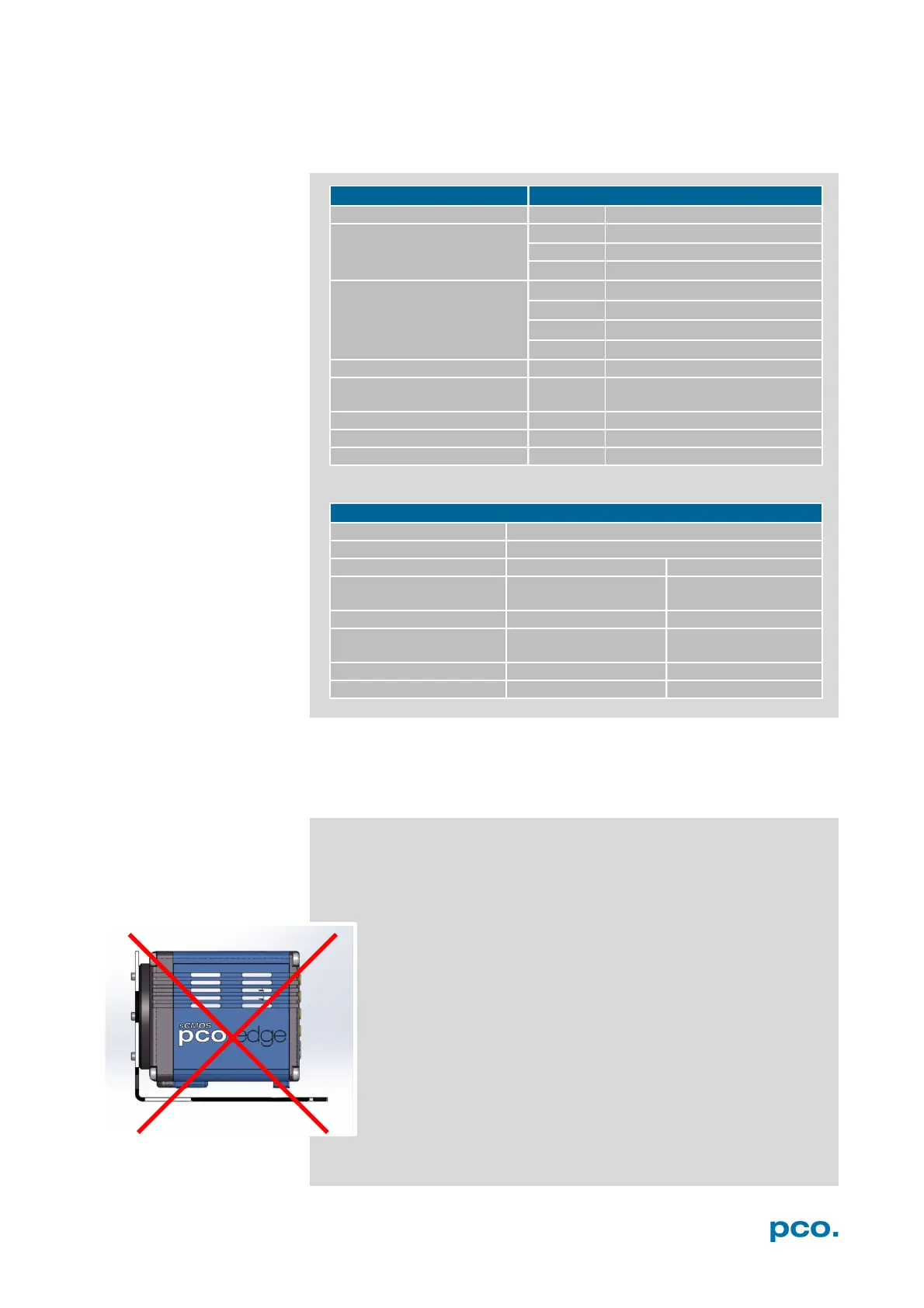

A1.5 MOUNTING
INSTABLE MOUNTING A1.5.1
These instructions are not valid for every application. Especially in
microscopy when extreme magnification is used, the smallest
vibration can disturb images.
The pco.edge needs a stable mounting plate to avoid disturbing
vibrations and to ensure a consistent high image quality.
(images are mounting proposals).
Don’t use such an instable mounting plate!
