Pco pco.edge 4.2 bi User Manual

20

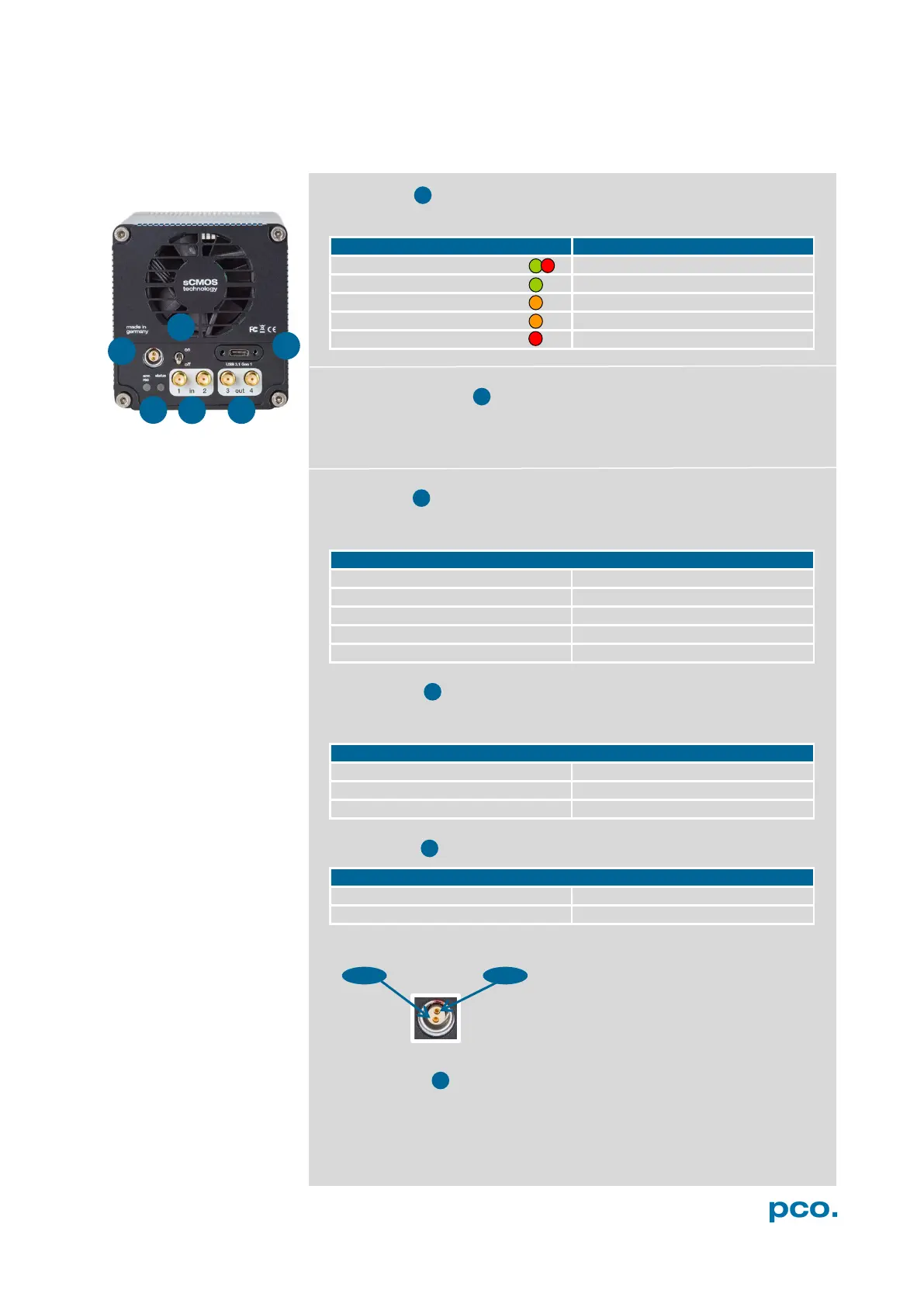

A1.3 REAR PANEL
Status LEDs
(LED1: green / red; LED 2: orange)
Color
Description
Red / green continuous
Camera is booting
Green
Camera is ready for operation
Orange continuous
Arm camera / rec state off
Orange blinking
Recording on
Red continuous
Error
Interface Connector
USB 3.1 plug Type-C screwable;
Power delivery for the camera over USB cable
SMA Inputs
(see chapter 7)
Input (1=Exposure Trigger; 2=Acquire Enable)
Type
Digital
Level
3.3 V LVTTL (5 V tolerant)
Coupling
DC
Impedance
1 kΩ
Slew rate
> 1 V/ms
SMA Outputs
(see chapter 7)
Output (3=Status Busy; 4=Status Expos)
Type
Digital
Level
3.3 V LVTTL
Coupling
DC
Power Input
LEMO socket ECG.0B.302.CLV
Pin1
Ground
Pin2
VCC 24 V DC (+10%)
Appropiate Lemo plug: FGG.0B.302.CLAD52Z
Power Switch
3
1
4
2
1
4
3
2
5
6
Pin1
Pin2
5
6
